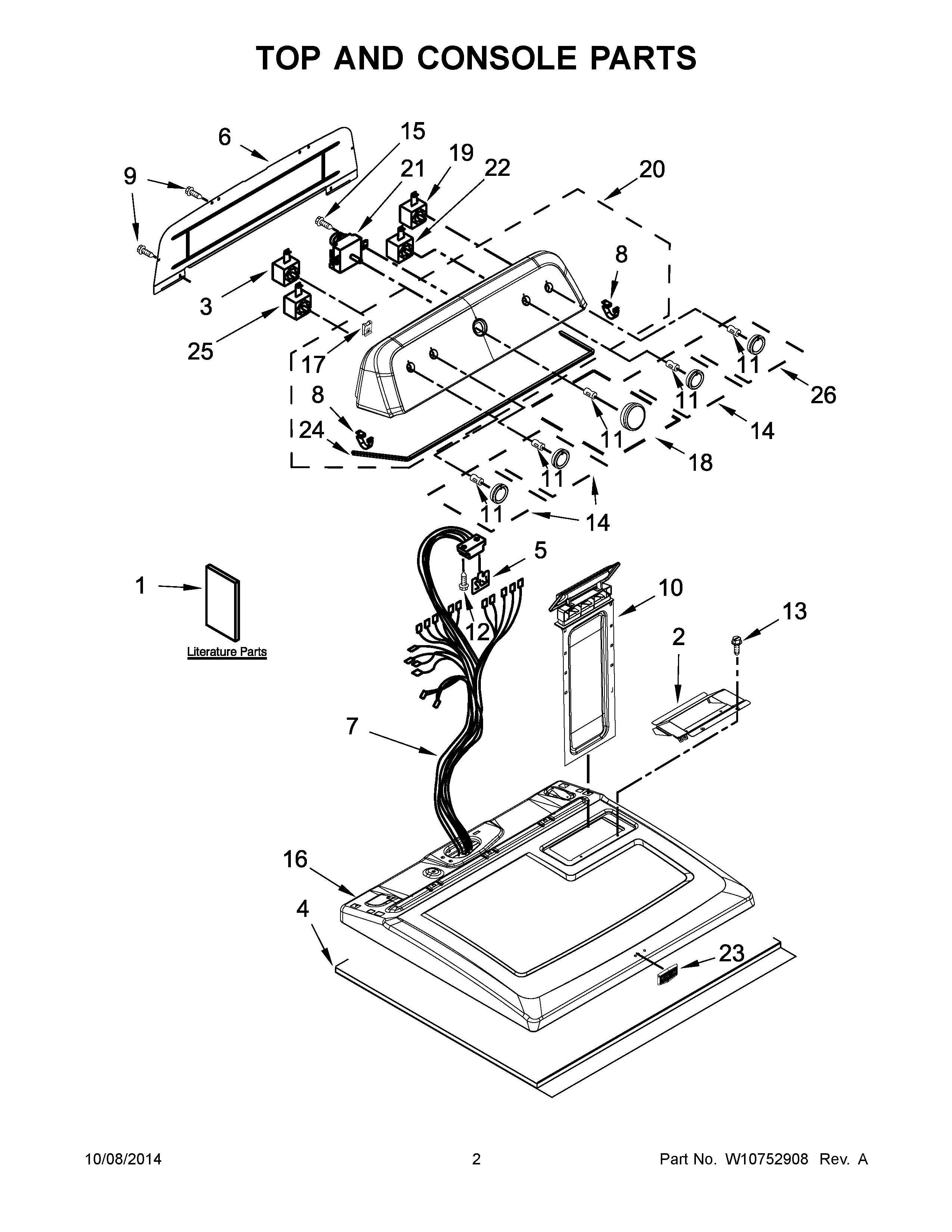

7MMGDC400DW2 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10652705
1B	MAY W10663990
1A	MAY W10658641
2	COLLAR, LINT CHUTE
3	MAY W10627711
4	MAY W10123956
5	MAY W10476828
6	MAY W10416486
7	MAY W10640712
8	MAY 8312709
9	Screw
10	LINT SCREEN (WHITE)
11	CLIP, SPRING
12	SCREW, 10-16 X 1/2
13	SCREW
14	MAY W10562155
15	MAY 3348629
16	MAY W10513432
17	NUT, "U"
18	MAY W10558463
19	MAY W10563095
20	MAY W10652553
21	MAY W10642928
22	MAY W10562713
23	MAY W10492808
24	MAY W10588162
25	MAY W10563094
26	ASSEMBLY, PUSH TO START KNOB (GREY)
