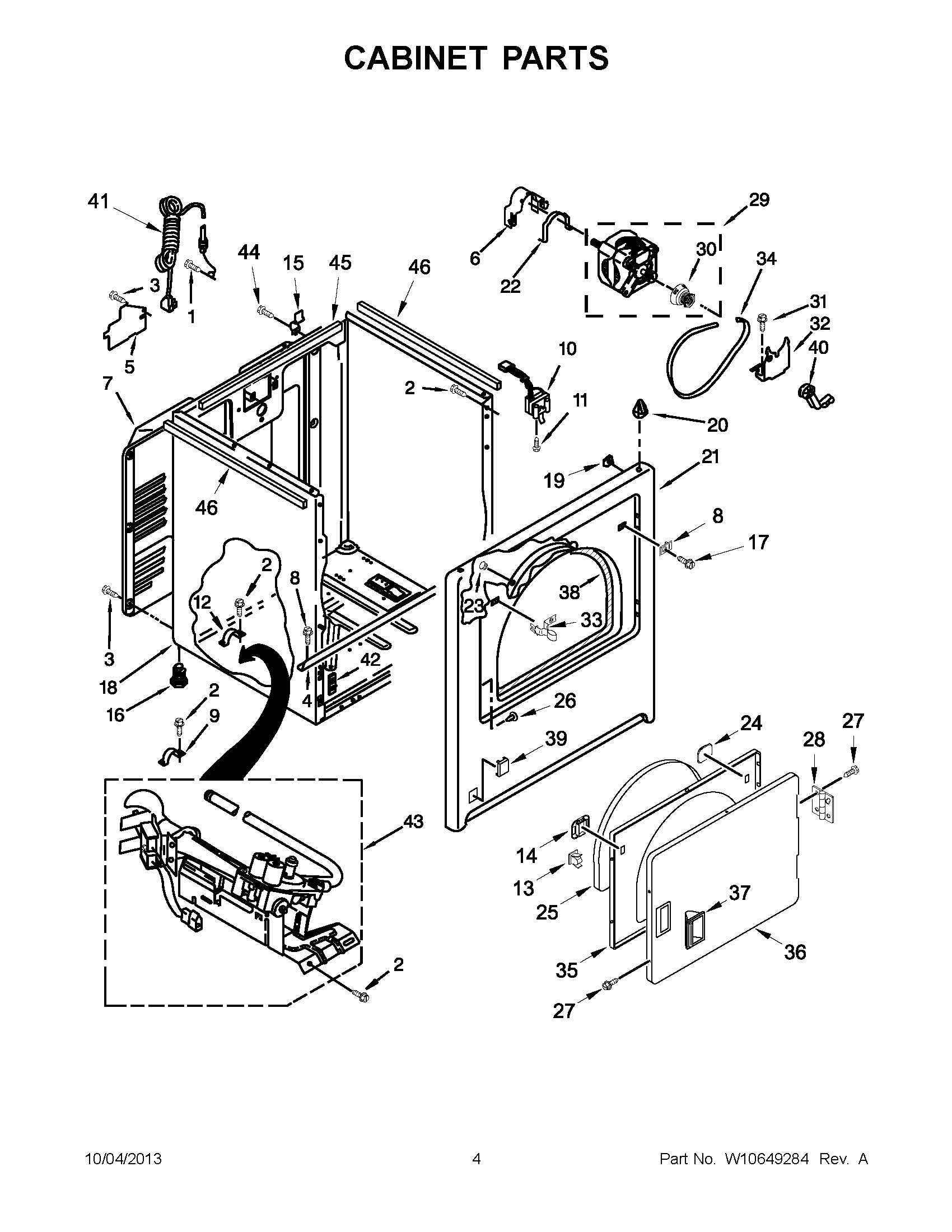

7MMGDC410BW0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	W10850756 Whirlpool Screw
2	SCREW
3	WP693995 Whirlpool Screw
4	BRACKET, CABINET
5	W11539855 Whirlpool Refrigerator Pump
6	WP3404162 Whirlpool Clamp
7	280043 Whirlpool Rear Panel
8	W11684591 Whirlpool Dryer Plug
9	341029 Whirlpool Clamp
10	WP3406107 Whirlpool Dryer Door Switch
11	WP3395530 Whirlpool Screw
13	W11429587 Whirlpool Catch Assembly
14	WPW10529197 Whirlpool Catch Assembly
15	WP8066217 Whirlpool Hinge
17	WP3390631 Whirlpool Screw
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP8066092 Whirlpool Panel Clip
21	W10248059 Whirlpool Panel
22	CLAMP
23	279220 Whirlpool Clip
24	W11173656 Whirlpool Cover
25	SEAL-DOOR DRYER
26	WP3404413 Whirlpool Plug
27	WP488627 Whirlpool Refrigerator Screw
28	WPW10362431 Whirlpool Hinge Assembly
29	279827 Whirlpool Dryer Drive Motor
30	WP8066184 Whirlpool Dryer Motor Pulley
31	3400500 Whirlpool Screw
32	WP348780 Whirlpool Base
33	W11429589 Whirlpool Strike
34	WPW10198086 Whirlpool Dryer Drive Belt
35	WPW10463967 Whirlpool Door Assembly
36	W10861227 Whirlpool Door Assembly
37	W11109500 Whirlpool Handle Assembly
38	W11035878 Whirlpool Bearing and Seal
39	W10811916 Whirlpool Plug
40	WP691366 Whirlpool Dryer Idler Pulley Assembly
41	W11222083 Whirlpool Power Cord
42	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
43	W10823508 Whirlpool Gas Burner
44	WP488729 Whirlpool Refrigerator Door Screw
45	W10316619 Whirlpool Seal
46	WPW10157932 Whirlpool Seal Foam
