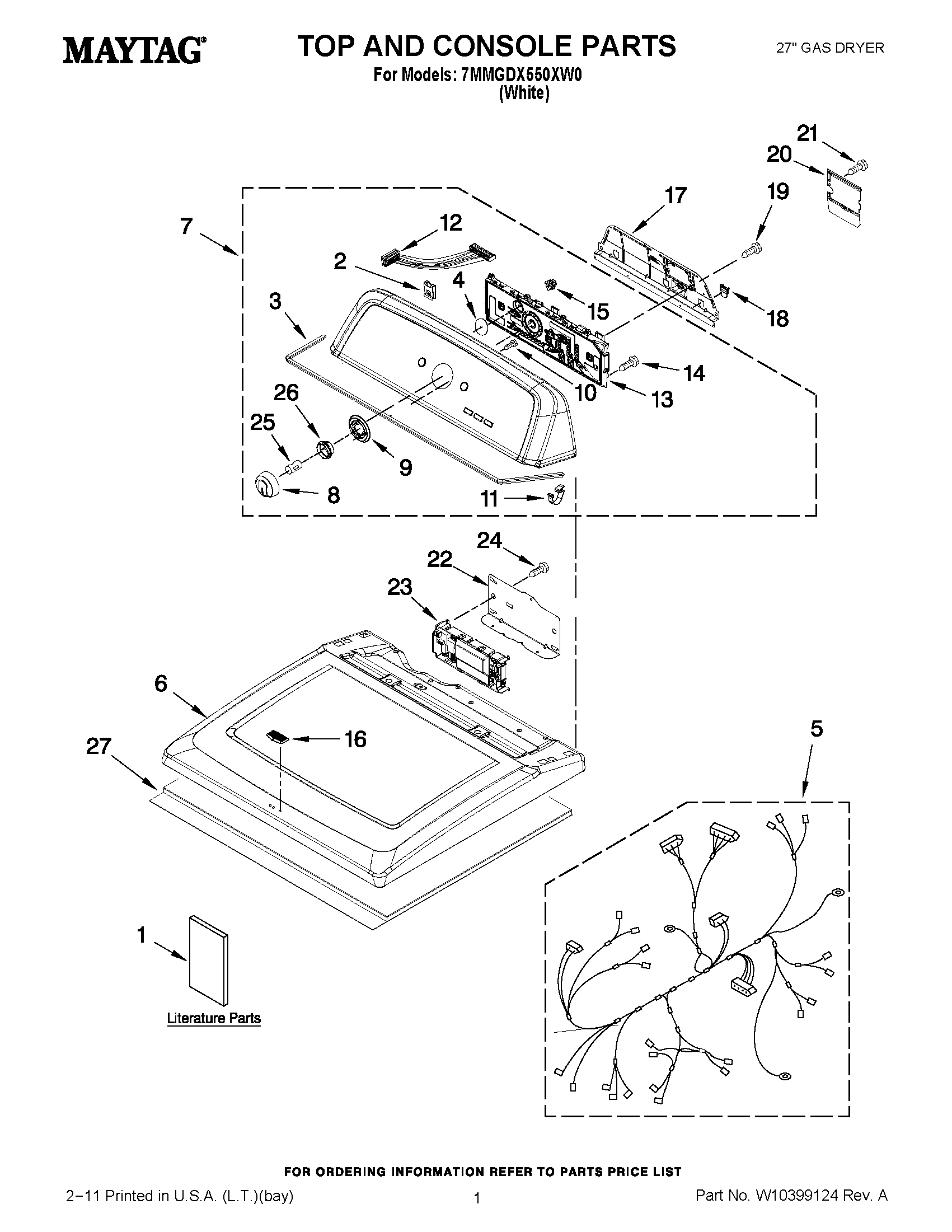

7MMGDX550XW0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10329762
1MAY W10329763
1MAY W10259284
1MAY W10097035
2NUT, "U"
3MAY W10280079
4SEAL, USER INTERFACE
5MAIN HARNESS
6MAY W10268730
7MAY W10329789
8MAY W10251381
9MAY W10305134
10SCREW
11MAY 8312709
12CABLE, USER INTERFACE
13USER INTERFACE ASSEMBLY
14MAY W10219342
15TENSIONER, FASCIA
16MAY W10323735
17MAY W10096969
18PLUG, UPPER REAR PANEL
19SCREW
20MAY W10338363
21Screw, 8-18 x 3/8
22MAY W10271580
23MAY W10317638
24MAY 342055
25CLIP, SPRING
26MAY W10326923
27MAY W10123956
