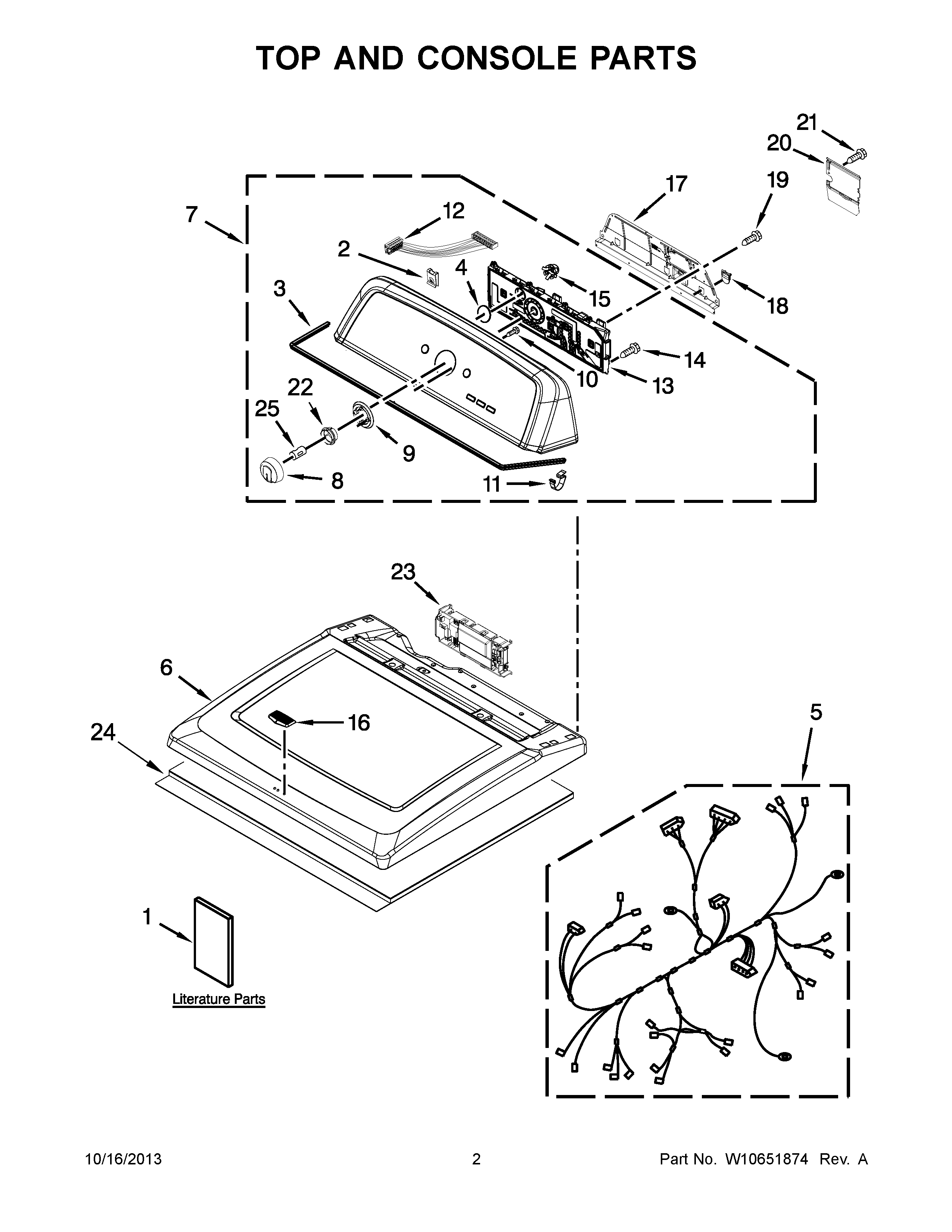

7MMGDX600BW0 02 – TOP AND CONSOLE PARTS

7MMGDX600BW0 02 – TOP AND CONSOLE PARTS

Written by

in

7MMGDX600BW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1MAY W10566786
1MAY W10329763
1MAY W10259284
1MAY W10417013
2NUT, "U"
3MAY W10280079
4SEAL, USER INTERFACE
5MAIN HARNESS
6MAY W10268730
7MAY W10572896
8MAY W10251381
9MAY W10305134
10SCREW
11MAY 8312709
12CABLE, USER INTERFACE
13USER INTERFACE ASSEMBLY
14MAY W10219342
15TENSIONER, FASCIA
16MAY W10492808
17MAY W10550615
18PLUG, UPPER REAR PANEL
19SCREW
20MAY W10338363
21Screw, 8-18 x 3/8
22MAY W10326923
23MAY W10317638
24MAY W10123956
25CLIP, SPRING
