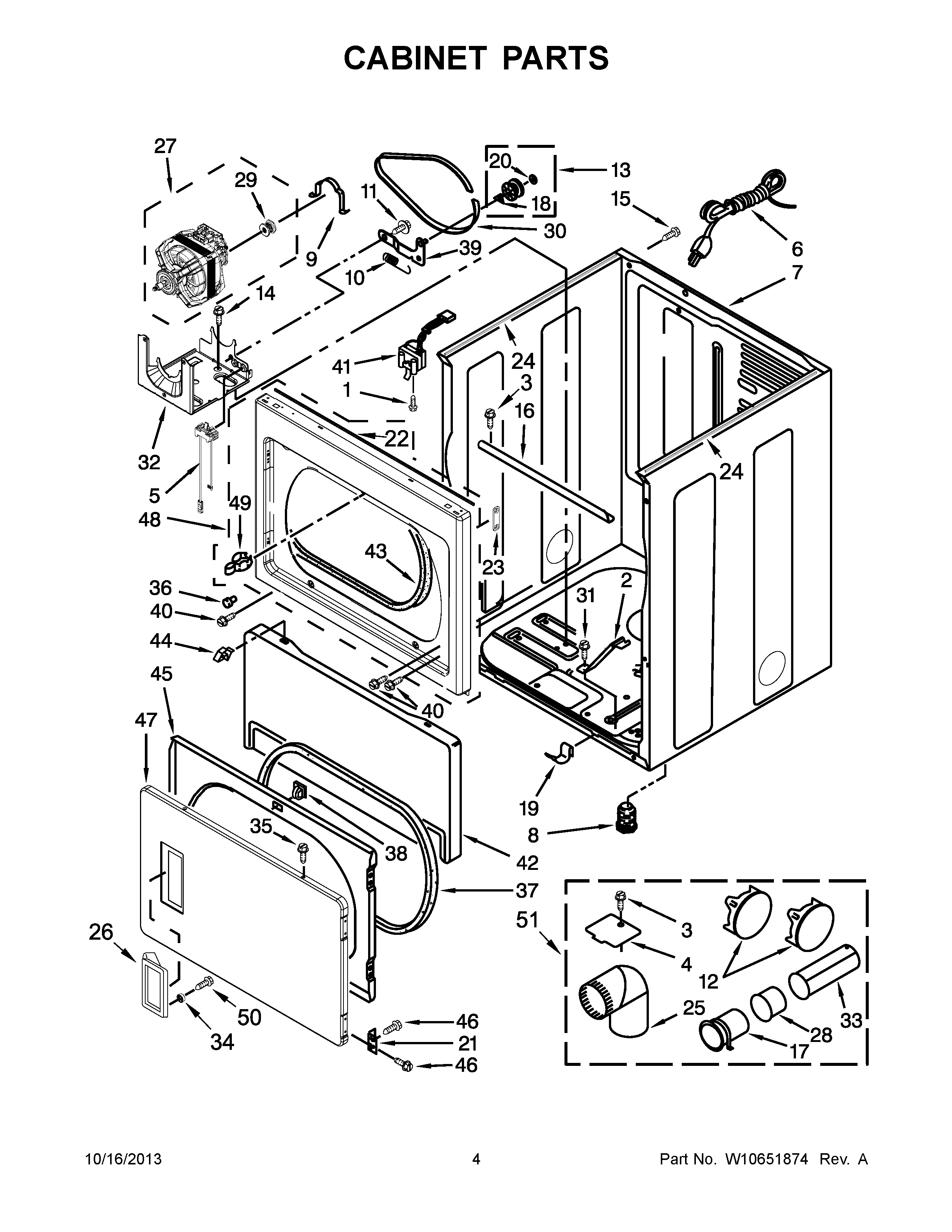

7MMGDX600BW0 03 – CABINET PARTS

Products

Position	Product
NI	MAY 279810
1	SCREW
2	MAY 8529757
3	SCREW
4	MAY 3394331
5	MAY W10411936
6	MAY 344020
7	MAY W10547697
8	MAY 3392100
9	CLAMP, MOTOR MOUNT
10	MAY W10446781
11	SCREW
12	MAY 49252
13	MAY W10468057
14	SCREW
15	MAY 8533971
16	BRACKET, CABINET
17	PIPE, EXHAUST (MEDIUM)
18	WASHER, TRI RING
19	CLIP
20	MAY W10121334
21	ASSEMBLY, HINGE & PIN (SILVER)
22	SEAL, SPILL GUARD
23	PLUG, HINGE SCREW
24	SEAL, FOAM
25	MAY 49026
26	MAY W10284182
27	ASSEMBLY, MOTOR
28	MAY 8563750
29	MAY W10460106
30	MAY W10112954
31	Screw
32	MAY W10242878
33	PIPE, EXHAUST (LONG)
34	MAY W10294344
35	MAY 3348629
36	BUMPER
37	MAY 3390735
38	MAY 3392538
39	MAY 3388674
40	SCREW
41	Switch, Door
42	Toe Panel (Includes Item. 2) (White)
43	MAY 3387242
44	RETAINER
45	MAY W10323061
46	MAY 342055
47	MAY W10322551
48	PANEL, FRONT (WHITE)
49	MAY 696144
50	SCREW
51	PLUG, MULTIVENT
