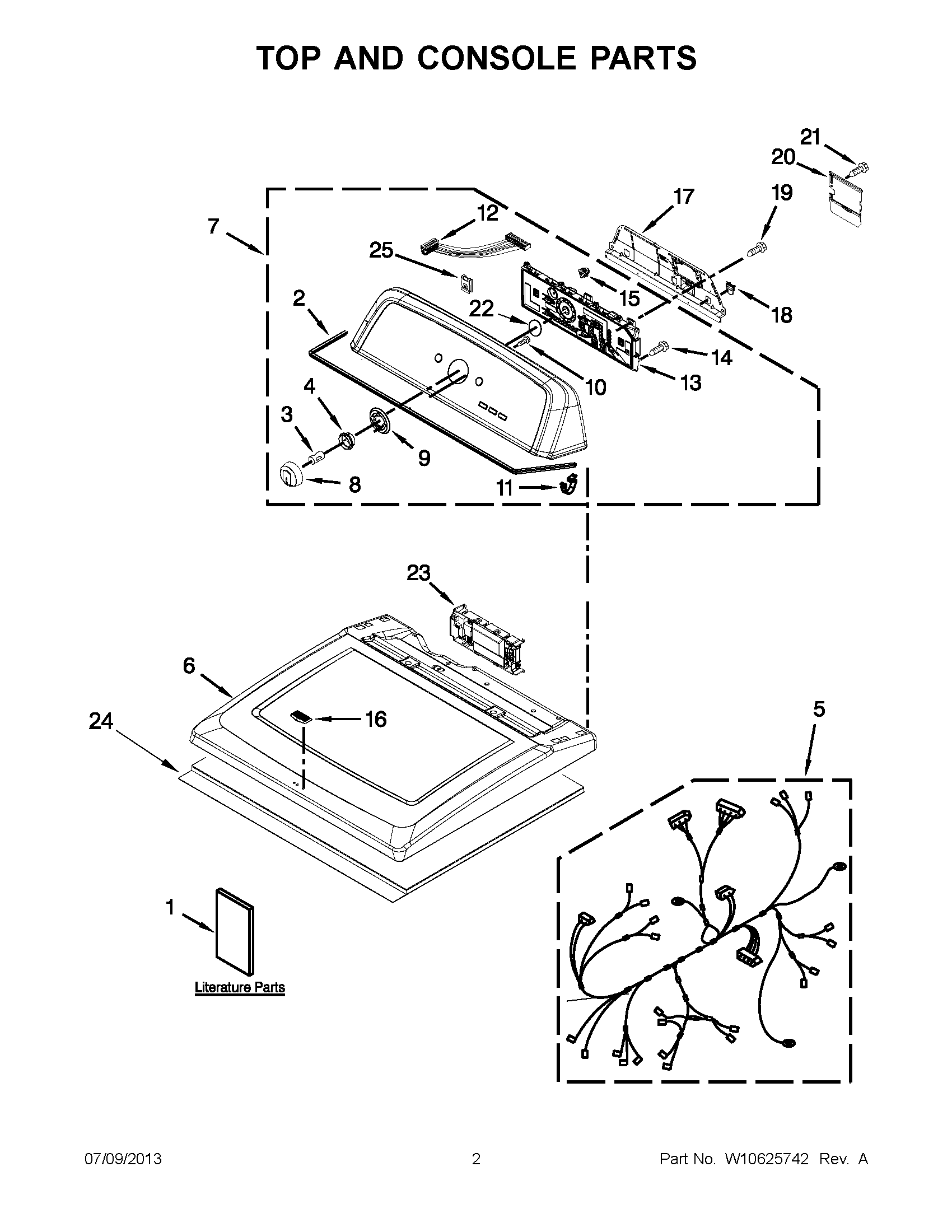

7MMGDX700BG0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10368978
1	MAY W10417013
1	MAY W10566786
1	MAY W10287249
2	MAY W10280079
3	CLIP, SPRING
4	MAY W10326923
5	MAIN HARNESS
6	MAY W10459652
7	MAY W10572895
8	KNOB, CONTROL (CHROME)
9	MAY W10305134
10	SCREW
11	MAY 8312709
12	HARNESS, USER INTERFACE
13	USER INTERFACE ASSEMBLY
14	MAY W10219342
15	TENSIONER, FASCIA
16	MAY W10492808
17	MAY W10550615
18	PLUG, UPPER REAR PANEL
19	SCREW
20	MAY W10338363
21	MAY 8533974
22	SEAL, USER INTERFACE
23	CCU-CONTROL
24	MAY W10123956
25	NUT, "U"
