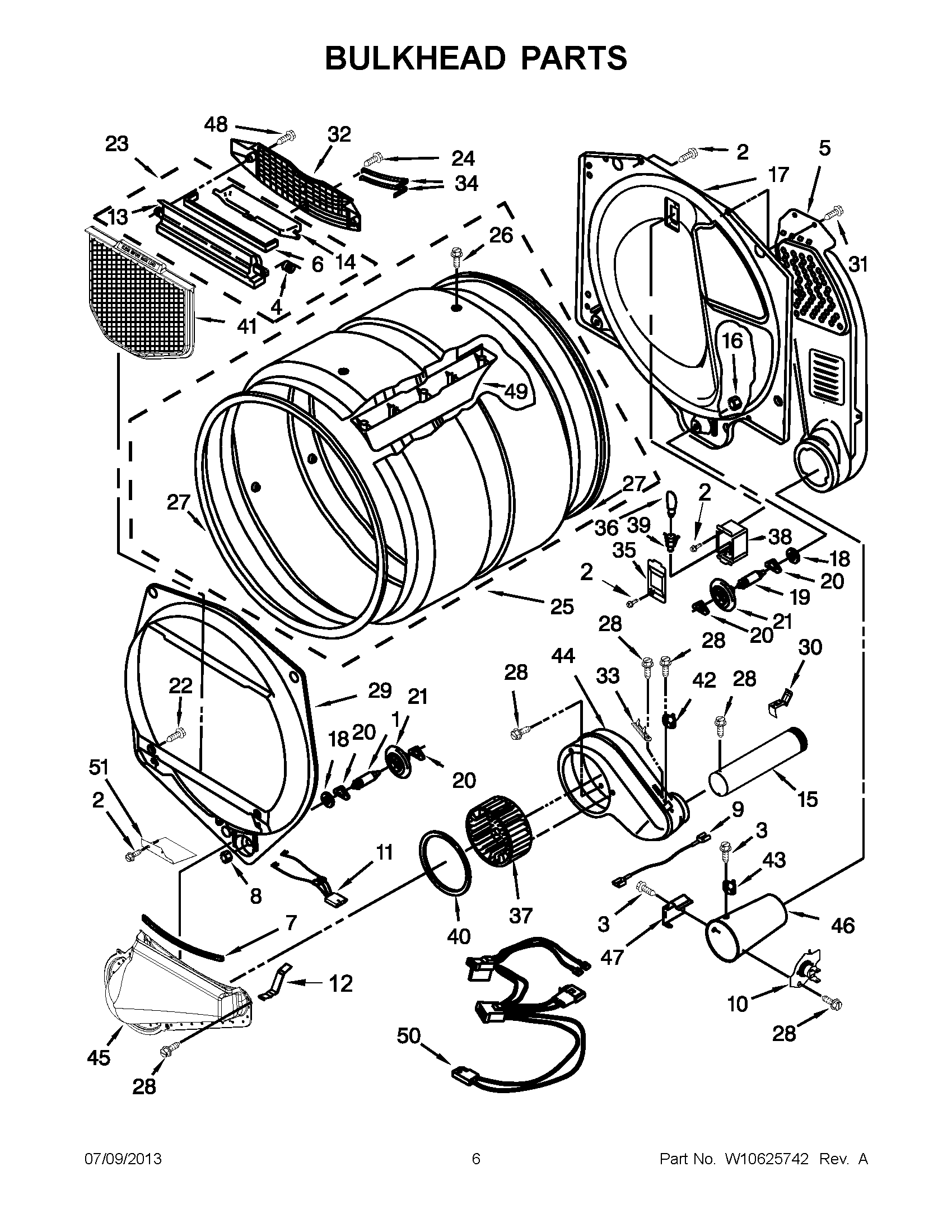

7MMGDX700BG0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT, DRUM ROLLER RIGHT HAND THREAD
2	SCREW
3	SCREW,8-18 X 3/8
4	Spring, Lint Screen Door
5	ASSEMBLY, AIR DUCT
6	MAY 697813
7	MAY 697814
8	NUT, HEX
9	WIRE JUMPER
10	CUT-OFF, THERMAL
11	MAY W10298258
12	CLIP, SPRING
13	MAY W10153414
14	MAY W10153413
15	PIPE, EXHAUST
16	NUT, HEX (LEFT HAND THREAD)
17	MAY 8520836
18	WASHER
19	SHAFT, DRUM ROLLER - LEFT HAND THREAD
20	WASHER, TRI RING
21	ROLLER, SUPPORT
22	MAY 342055
23	Housing, Outlet
24	Screw, 8-18 x 1/2
25	ASSEMBLY, DRUM
26	MAY W10219342
27	MAY W10521118
28	MAY 8533971
29	BULKHEAD, FRONT
30	CLIP, EXHAUST
31	Screw
32	MAY W10153412
33	Fuse, Thermal (91 C)
34	SENSOR, ELECTRODE
35	MAY 3402841
36	MAY 3406124
37	MAY W10349492
38	MAY 8578825
39	MAY W10214261
40	SEAL, PLATE COVER
41	LINT SCREEN (WHITE)
42	THERMISTOR
43	THERMOSTAT, HI LIMIT
44	MAY 8544362
45	Lint Duct Assembly
46	MAY 8573824
47	MAY 338906
48	SCREW
49	BAFFLE, DRUM
50	MAY W10305870
51	MAY W10128629
