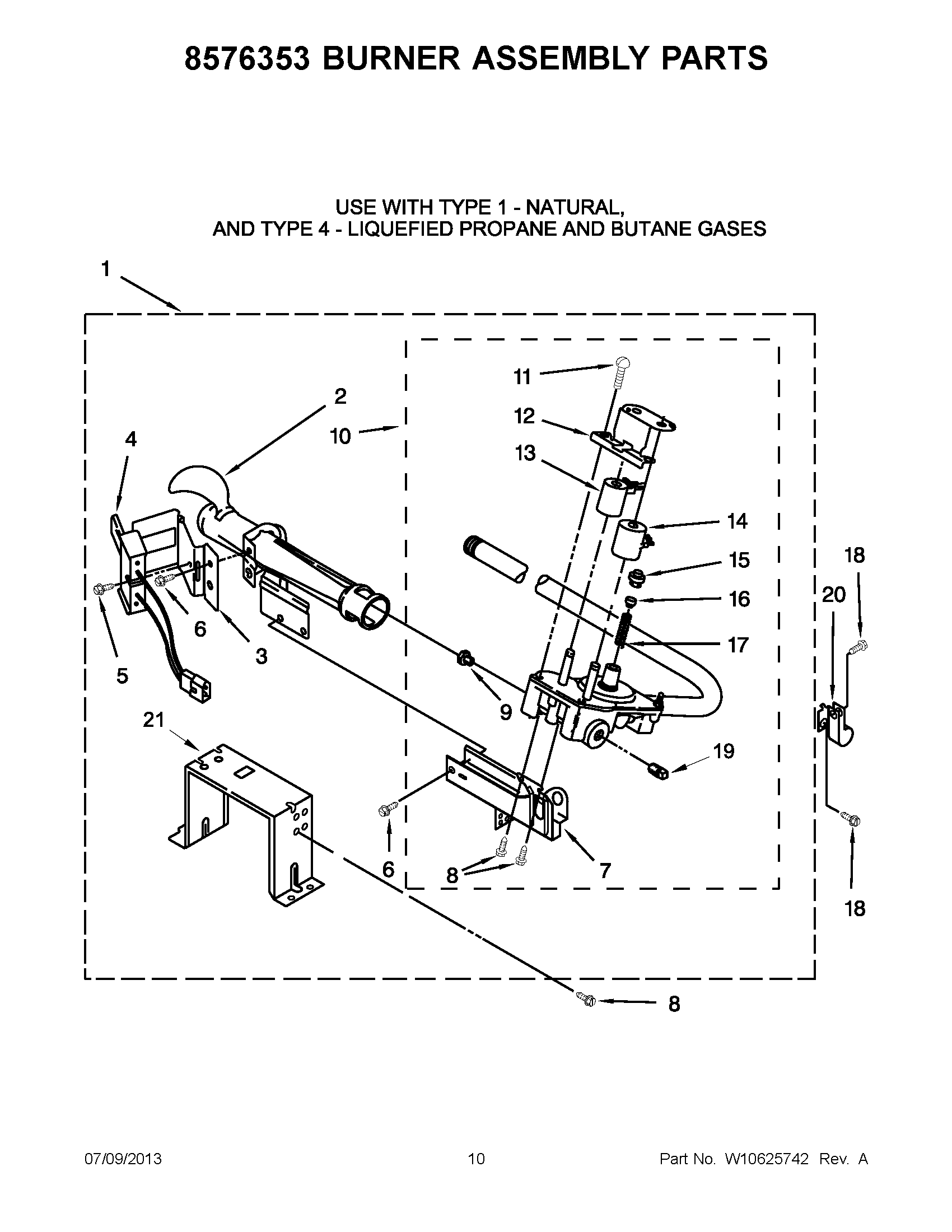

7MMGDX700BG0 05 – 8576353 BURNER ASSEMBLY PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	Conversion Kit (Type (1) to Type (4) LPG).
1	BURNER ASSEMBLY 60 HZ. (TYPE 1)(WHITE RODGERS)
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 3389871
8	SCREW
9	ORIFICE, BURNER (TYPE 1 (NATURAL))
9	Orifice, Burner (Type 4 (Propane))
9	Orifice, Burner (Type 4 (Butane))
10	VALVE, GAS 60 HZ. (COMPLETE)
11	SCREW, COIL
12	MAY 694538
13	MAY 694540
14	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15	MAY 694424
16	MAY 694423
17	MAY 694422
18	SCREW
19	MAY 239822
20	MAY 3387561
21	MAY 3389889
