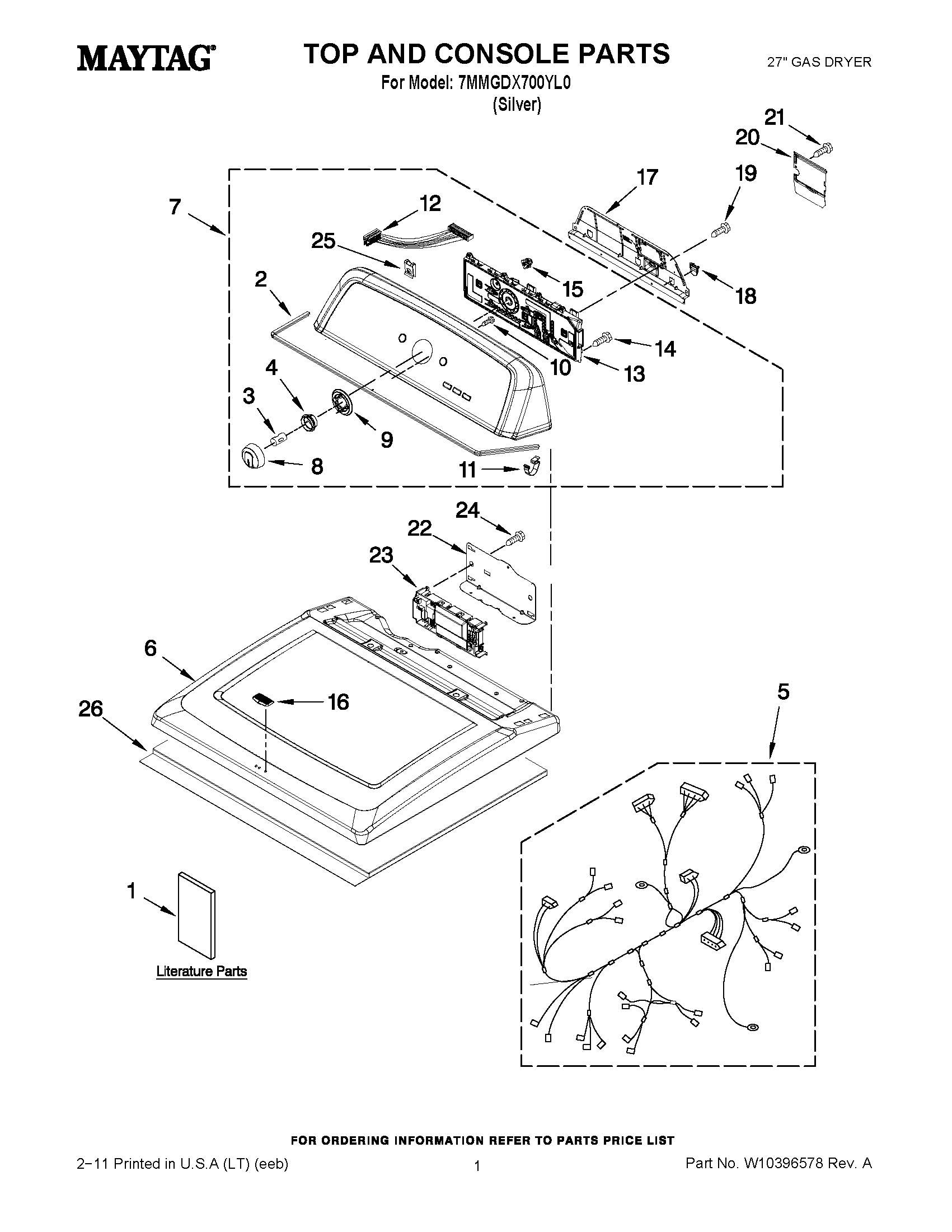

7MMGDX700YL0 01 – TOP AND CONSOLE PARTS

7MMGDX700YL0 01 – TOP AND CONSOLE PARTS

Written by

in

7MMGDX700YL0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10368978
1	MAY W10334061
1	MAY W10097036
2	MAY W10280079
3	CLIP, SPRING
4	MAY W10326923
5	MAIN HARNESS
6	TOP (SILVER)
7	MAY W10334054
8	KNOB, CONTROL (CHROME)
9	MAY W10305134
10	SCREW
11	MAY 8312709
12	HARNESS, USER INTERFACE
13	USER INTERFACE ASSEMBLY
14	MAY W10219342
15	TENSIONER, FASCIA
16	MAY W10323735
17	PANEL-REAR
18	PLUG, UPPER REAR PANEL
19	SCREW
20	MAY W10338363
21	Screw, 8-18 x 3/8
22	MAY W10271580
23	CCU-CONTROL
24	MAY 342055
25	NUT, "U"
26	MAY W10123956
