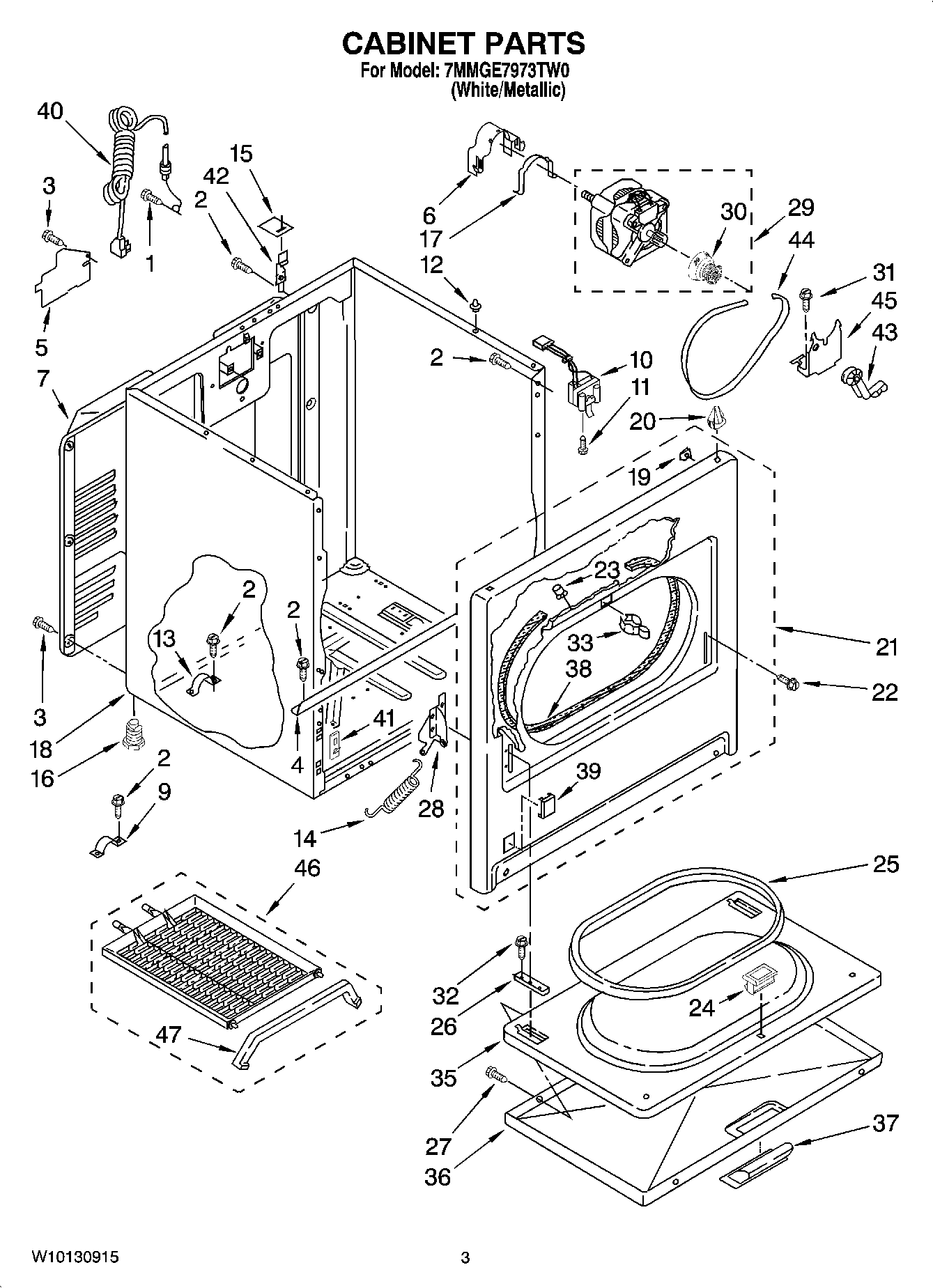

7MMGE7973TW0 02 – CABINET PARTSadmin2025-04-26T11:48:19+00:007MMGE7973TW0 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | Screw, 8-18 x 5/8 (External Ground) |
| 2 | SCREW |
| 3 | Screw |
| 4 | MAY 8541400 |
| 5 | MAY 3396795 |
| 6 | Clamp, Motor (With Shield) |
| 7 | MAY 3396805 |
| 9 | MAY 3980175 |
| 10 | Switch, Door |
| 11 | SCREW |
| 12 | Lock, Front Top (2) |
| 13 | MAY 341029 |
| 14 | MAY W10041960 |
| 15 | Pad, Top Hinge (2) |
| 16 | MAY 279810 |
| 16 | MAY 3392100 |
| 17 | MAY 660658 |
| 18 | CABINET (WHITE) |
| 19 | Clip, Ground |
| 20 | Locator-Top |
| 21 | Panel Front (White) |
| 22 | MAY 342043 |
| 23 | Clip, Felt Pad |
| 24 | DOOR CATCH ASSEMBLY |
| 25 | MAY 3390731 |
| 26 | MAY 337189 |
| 27 | MAY 694091 |
| 28 | HINGE ASSEMBLY (LEFT SIDE) |
| 28 | HINGE ASSEMBLY (RIGHT SIDE) |
| 29 | MAY 8066206 |
| 30 | Pulley, Motor |
| 31 | BOLT |
| 32 | SCREW |
| 33 | MAY 696144 |
| 35 | MAY 695737 |
| 36 | Door, Front (White) |
| 37 | Handle, Door (White) |
| 38 | MAY 3406129 |
| 39 | MAY 3394975 |
| 40 | MAY 344020 |
| 41 | MAY 3394083 |
| 42 | Hinge, Top |
| 43 | IDLER ASSEMBLY |
| 44 | MAY 8066065 |
| 45 | MAY 348780 |
| 46 | MAY 3406839 |
| 47 | MAY 692989 |
