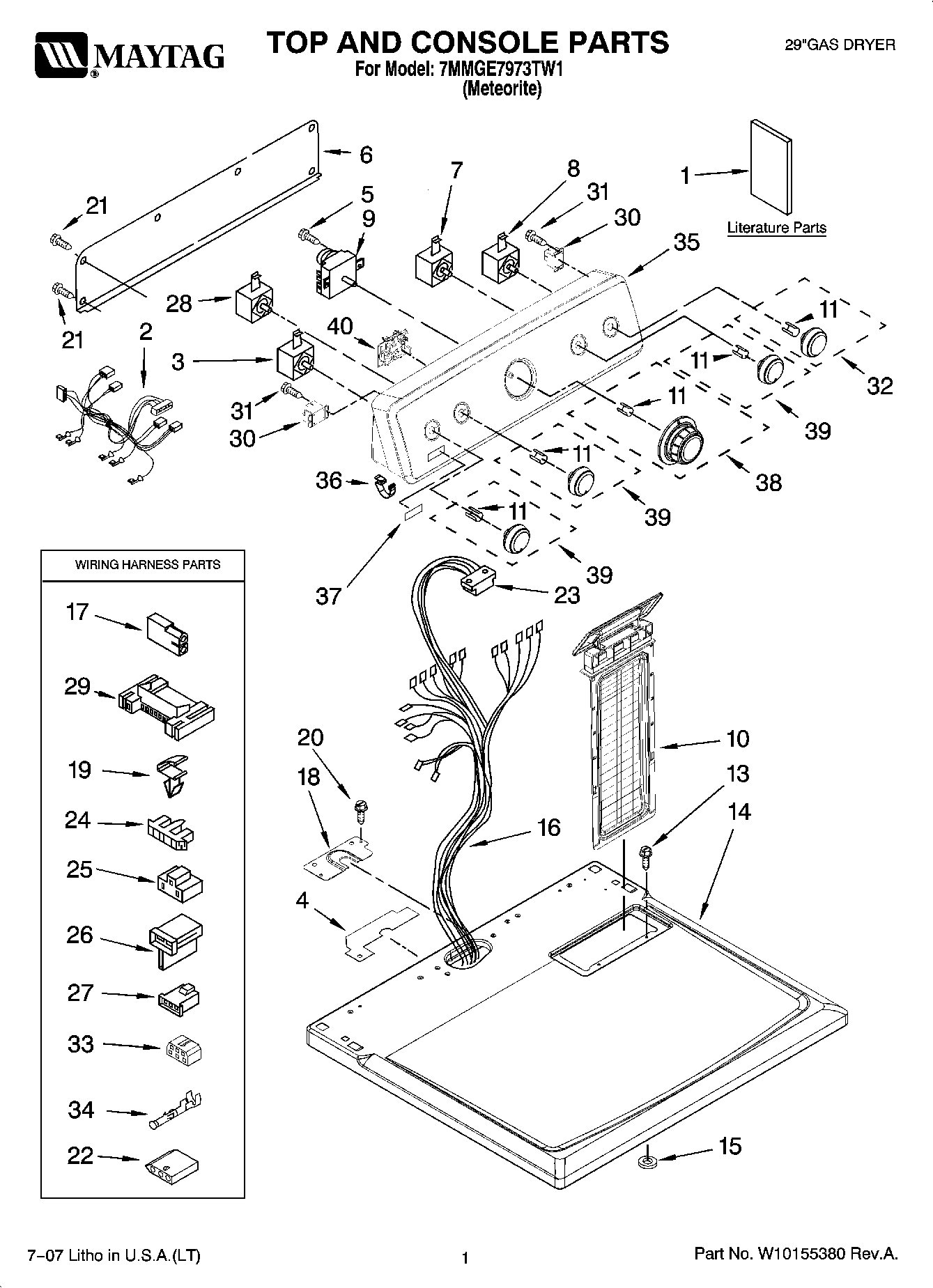

7MMGE7973TW1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10118202
1	MAY W10118198
1	MAY W10118201
2	MAY W10111088
3	Switch, End Of Cycle
4	Seal-Harness
5	MAY 8533971
6	MAY W10112577
7	MAY 8299970
8	MAY 3977456
9	Timer, 60 Hz.
10	Screen, Lint
11	CLIP, SPRING
13	SCREW
14	MAY W10112599
15	Washer (Top/Chute)
16	MAY W10110998
17	Plug, 2-Way Terminal
18	MAY W10112578
19	CLIP, HARNESS
20	Screw, 8-18 x 3/4
21	Screw
22	MAY 3936144
23	MAY 3391885
24	Connector-Timer
25	Connector (PTS) Relay
26	CONNECTOR, 2-POSITION (GAS VALVE)
27	MAY 3403498
28	Switch, Wrinkle Guard
29	CONNECTOR (MOTOR)
30	Relay, Heater
31	Screw,8-18 x 11/32
32	MAY W10112574
33	Connector
34	Terminal
35	Console & Control Panel Assembly (Includes. Illus. 36 & 37)
36	MAY 8312709
37	MAY W10112569
38	Knob, Timer (Dryer)
39	Knob, Control (4)
40	MAY W10111812
