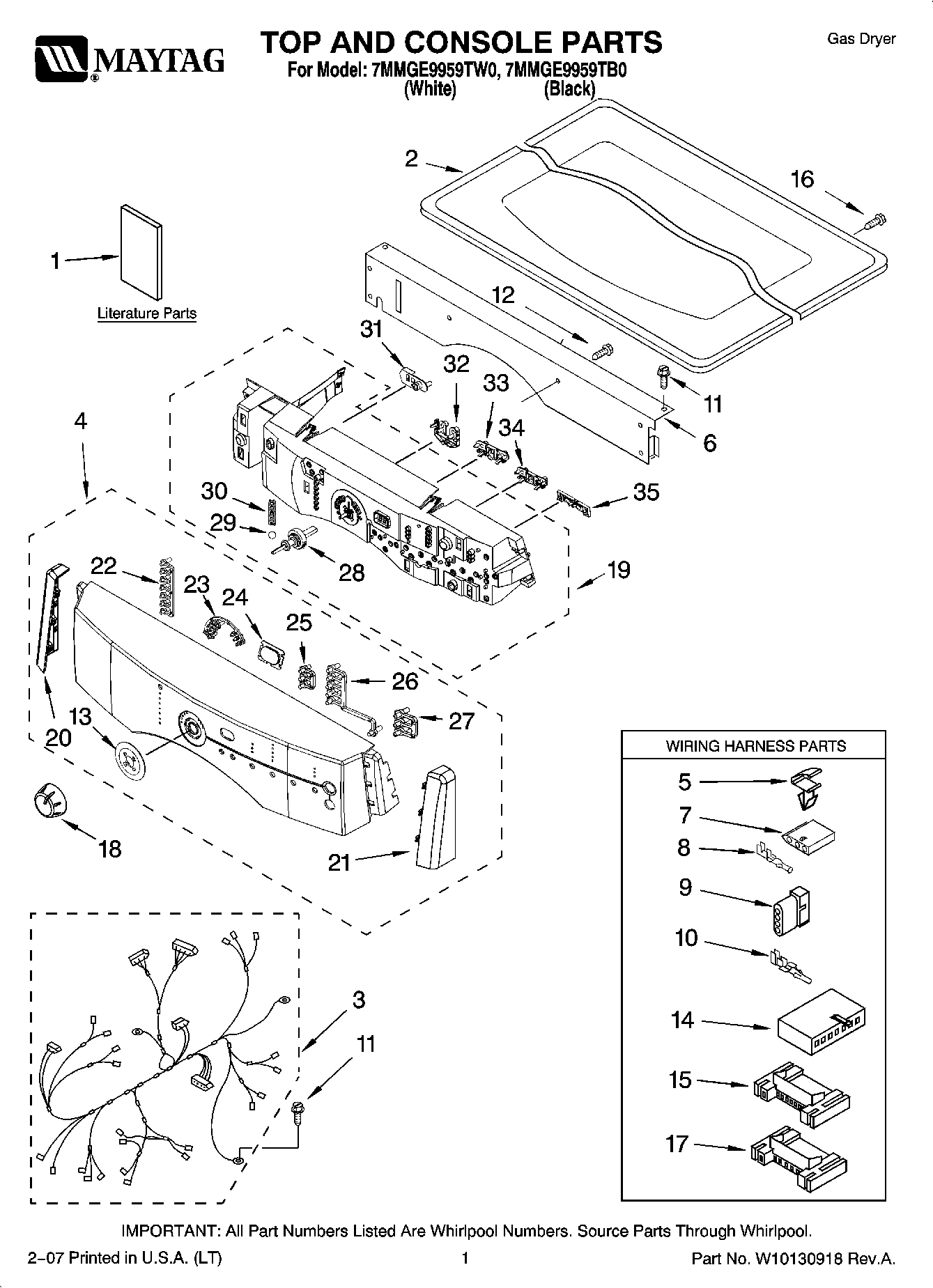

7MMGE9959TB0 01 – TOP AND CONSOLE PARTS
Written by
in
7MMGE9959TB0 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
MAY W10115137
1
MAY W10115139
1
MAY W10115138
2
Top (Includes, Illus. 36) (White)
2
Top (Includes, Illus. 36) (Black)
3
MAY 8299950
4
MAY W10098960
4
MAY W10098940
5
CLIP, HARNESS
6
MAY 8519271
7
Connector Sensor
8
Terminal
9
MAY 3936144
10
Terminal
11
SCREW
12
MAY 488886
13
MAY 8542690
14
MAY 3936150
15
CONNECTOR (MOTOR)
16
MAY 8281225
17
MAY 2203186
18
Knob, Assembly (Silver)
19
MAY 8558455
20
MAY 8580135
20
EndCap(LH) (White)
21
MAY 8580134
21
MAY 8562597
22
MAY 8542682
23
MAY 8542683
24
MAY 8542691
25
MAY 8542684
26
MAY 8542685
27
MAY 8542686
28
MAY 8542717
29
MAY 8542716
30
MAY 8542715
31
MAY 8562606
31
Pushbutton, (Control) (Silver)
32
MAY 8579989
32
MAY W10100390
33
MAY 8579991
33
MAY 8562604
34
MAY 8579993
34
MAY 8562605
35
Pushbutton (Start/Cancel) (Silver)
35
MAY 8558454
←
