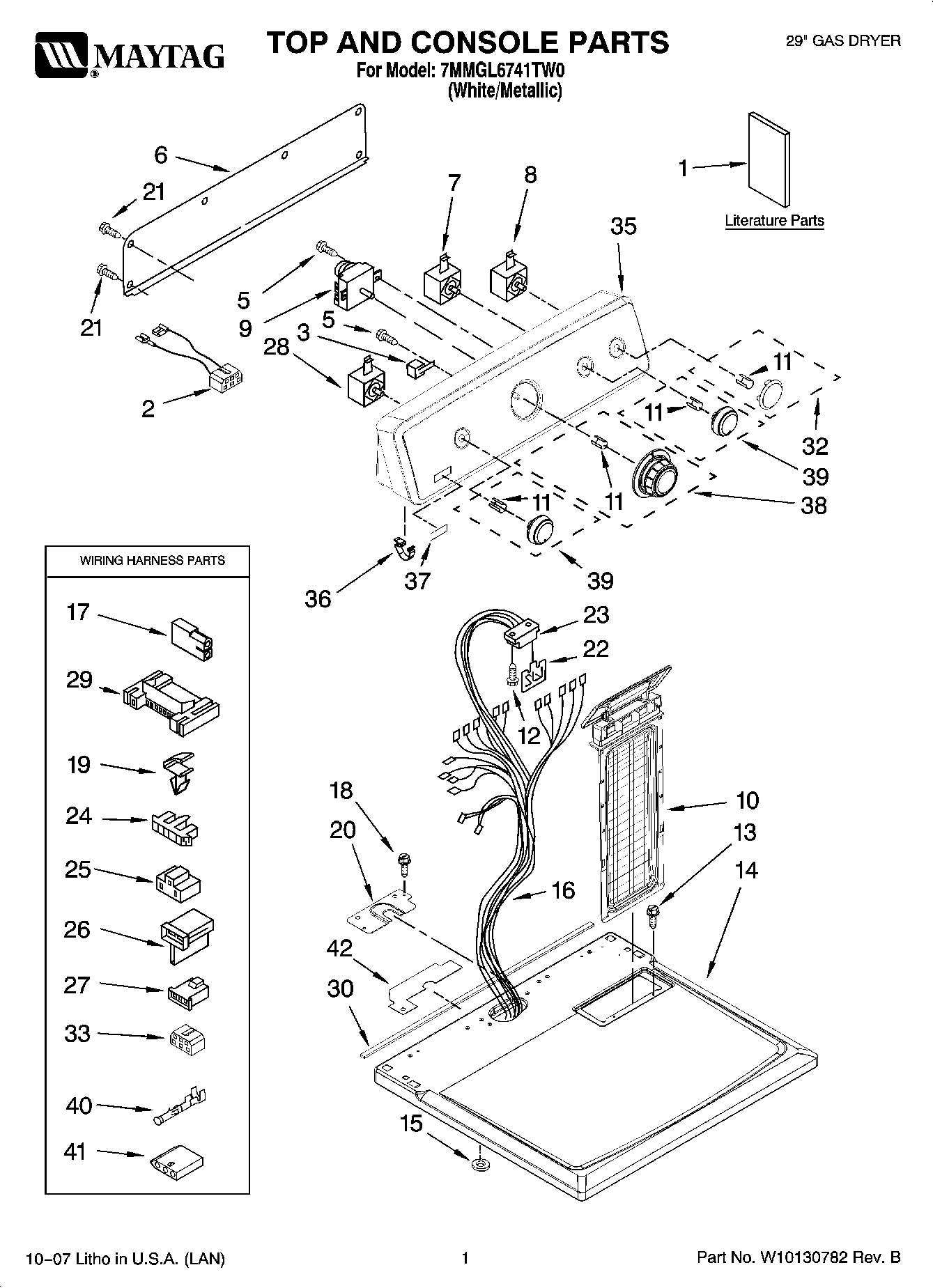

7MMGL6741TW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10118200
1	MAY W10119084
1	MAY W10118198
2	Wire, Jumper (Timer Buzzer)
3	MAY 694419
5	MAY 8533971
6	Panel, Rear
7	Switch, Rotary Temperature
8	Switch, Push-To-Start
9	TIMER ASSEMBLY (60 HZ.)
10	Screen, Lint
11	CLIP, SPRING
12	MAY 359625
13	SCREW
14	MAY W10112599
15	Washer (Top/Chute)
16	MAY W10120796
17	Plug, 2-Way Terminal
18	Screw, 8-18 x 3/4
19	CLIP, HARNESS
20	MAY 8565981
21	Screw
22	MAY 8558178
23	MAY 3391885
24	Connector-Timer
25	Connector (PTS) Relay
26	CONNECTOR, 2-POSITION (GAS VALVE)
27	MAY 3403498
28	MAY 3405156
29	CONNECTOR (MOTOR)
30	Seal, Foam Console Bracket
32	MAY W10110037
33	Connector
35	MAY W10116405
36	MAY 8312709
37	MAY W10112569
38	Knob, Timer
39	Knob, Control (3)
40	Terminal
41	MAY 3936144
42	MAY W10118608
