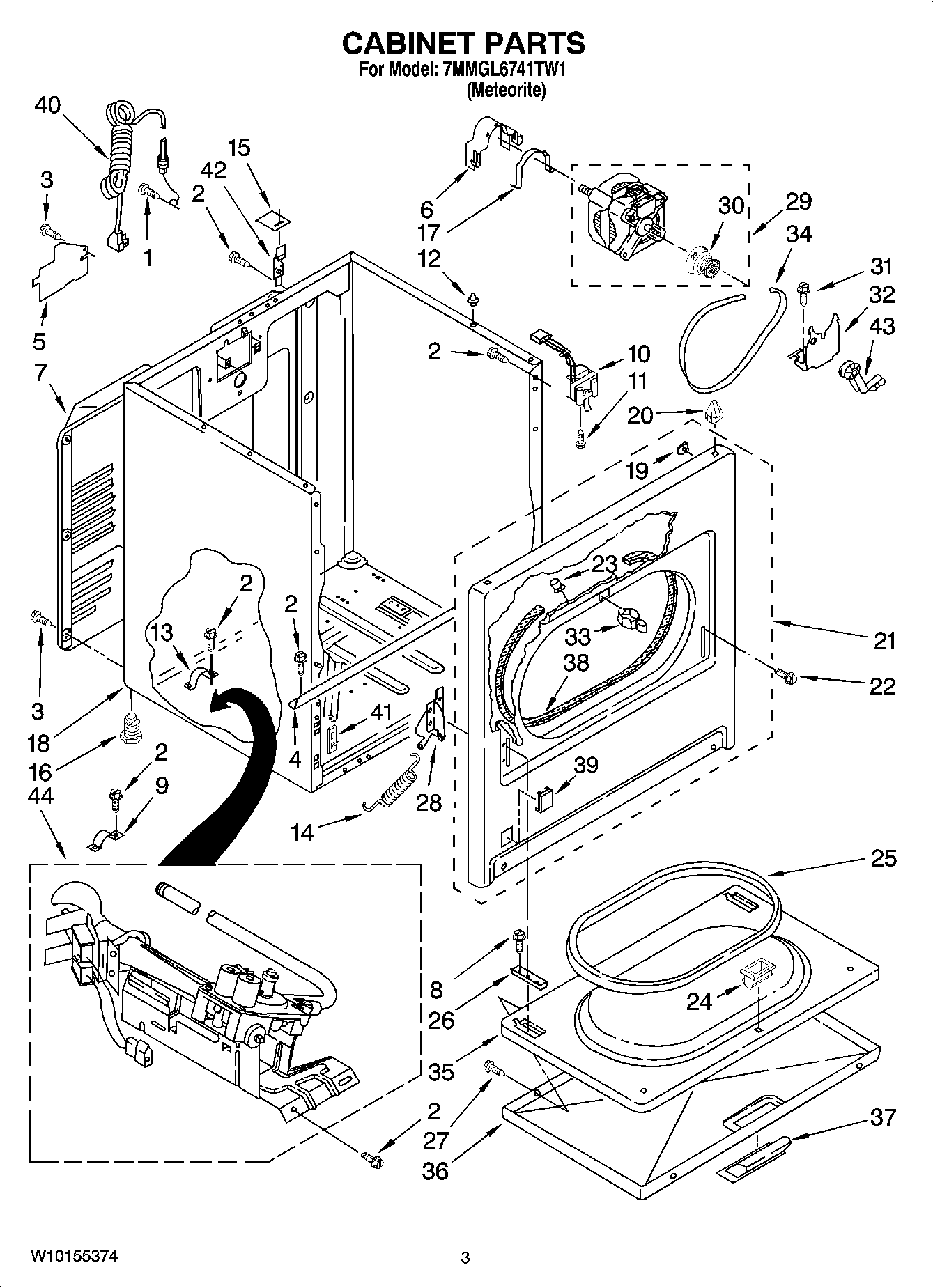

7MMGL6741TW1 02 – CABINET PARTS

Products

Position	Product
1	Screw, 8-18 x 5/8 (External Ground)
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY 3396805
8	SCREW
9	MAY 3980175
10	Switch, Door
11	SCREW
12	Lock, Front Top (2)
13	MAY 341029
14	MAY W10041960
15	Pad, Top Hinge (2)
16	MAY 3392100
16	MAY 279810
17	MAY 660658
18	CABINET (WHITE)
19	Clip, Ground
20	Locator-Top
21	Panel Front (White)
22	MAY 342043
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3390731
26	MAY 337189
27	MAY 694091
28	HINGE ASSEMBLY (RIGHT SIDE)
28	HINGE ASSEMBLY (LEFT SIDE)
29	MAY 8066206
30	Pulley, Motor
31	BOLT
32	MAY 348780
33	MAY 696144
34	MAY W10131364
35	MAY 695737
36	Door, Front (White)
37	Handle, Door (White)
38	MAY 3406129
39	MAY 3394975
40	MAY 344020
41	MAY 3394083
42	Hinge, Top
43	IDLER ASSEMBLY
44	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
