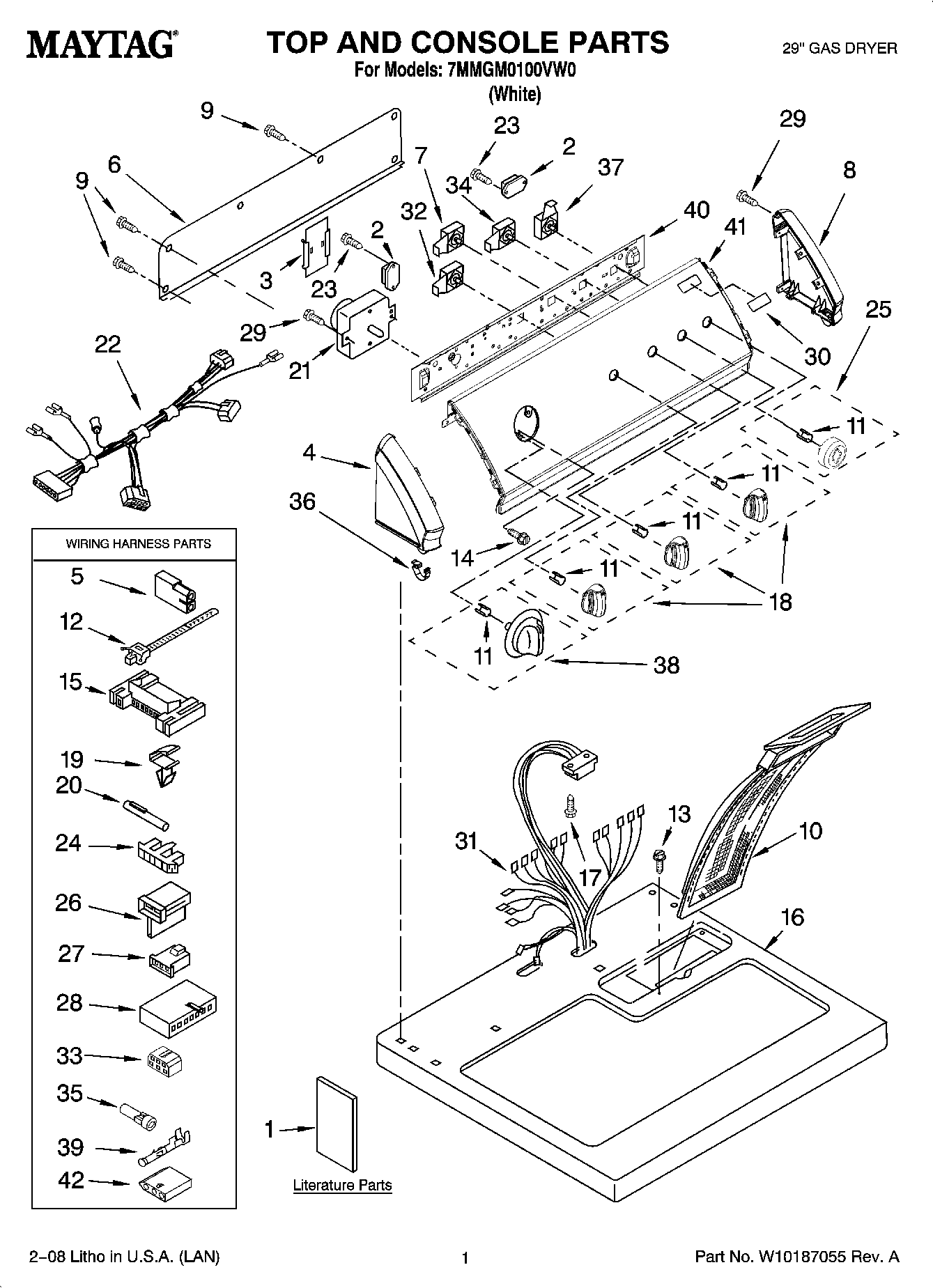

7MMGM0100VW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY 3406666
1	MAY W10118198
1	MAY W10155425
2	Relay, Heater
3	MAY W10116566
4	MAY W10128464
5	Plug, 2-Way Terminal
6	MAY 8274261
7	Switch, Wrinkle Guard
8	MAY W10128463
9	Screw
10	LINT SCREEN (WHITE)
11	CLIP, SPRING
12	Tie, Cable
13	SCREW
14	MAY 8533951
15	CONNECTOR (MOTOR)
16	MAY 8559800
17	SCREW
18	MAY 3956788
19	CLIP, HARNESS
20	MAY 351296
21	Timer, 60 Hz.
22	MAY 8283281
23	Screw,8-18 x 11/32
24	Connector-Timer
25	MAY 3956790
26	CONNECTOR, 2-POSITION (GAS VALVE)
27	MAY 3403498
28	MAY 3936150
29	MAY 8533971
30	MAY W10112569
31	MAY 8299900
32	MAY 8299970
33	Connector
34	Switch, End Of Cycle
35	Plug, Harness
36	MAY W10129041
37	MAY 3977456
38	MAY 8571409
39	Terminal
40	MAY 8559772
41	MAY W10155431
42	MAY 3936144
