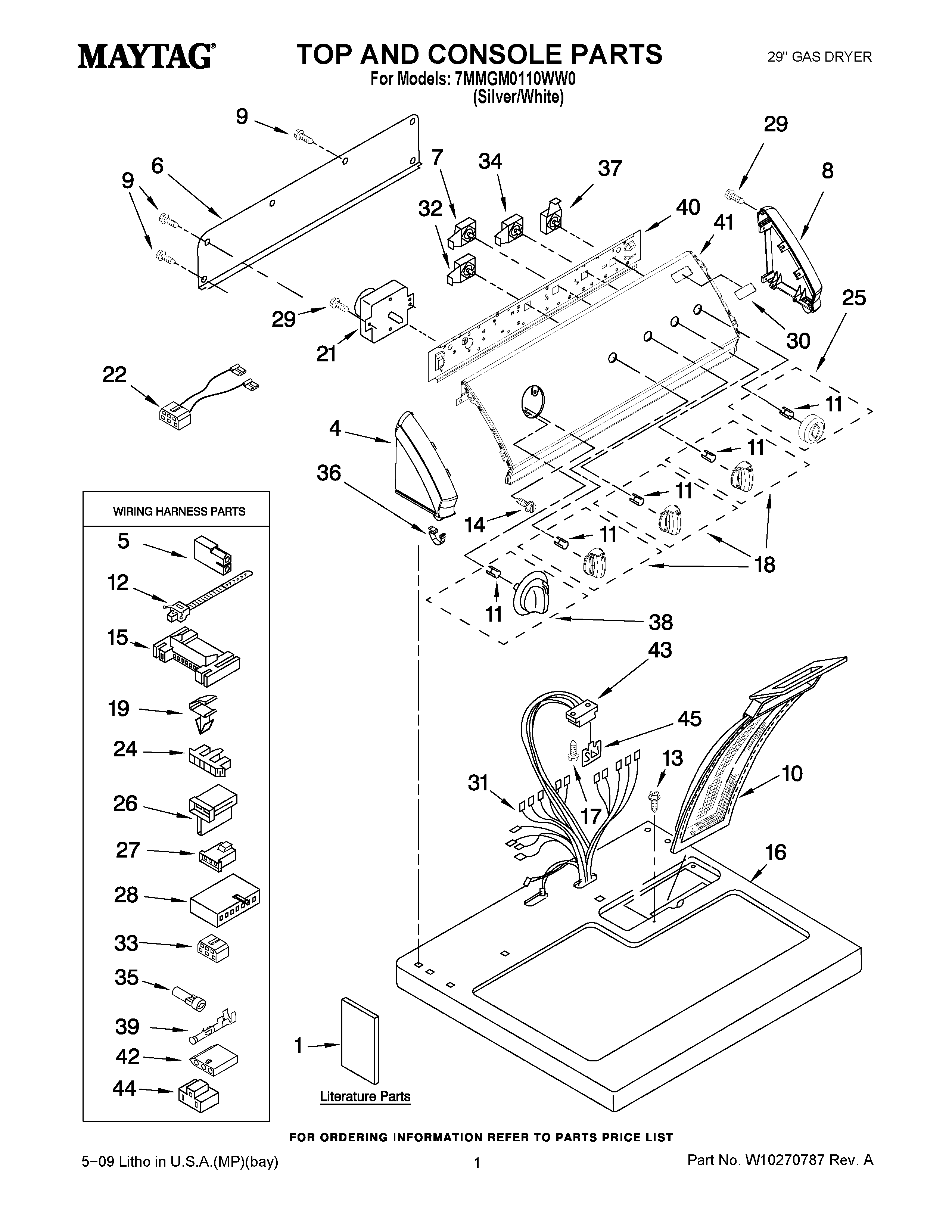

7MMGM0110WW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY 8299791
1	MAY W10118198
1	MAY W10246604
4	ENDCAP ASSEMBLY, LEFT HAND (WHITE)
5	Plug, 2-Way Terminal
6	MAY 8274261
7	Switch Rotary (Twist Mount)
8	ENDCAP ASSEMBLY, RIGHT HAND (WHITE)
9	Screw
10	LINT SCREEN (WHITE)
11	CLIP, SPRING
12	Tie, Cable
13	SCREW
14	MAY 8533951
15	CONNECTOR (MOTOR)
16	MAY 8559800
17	SCREW
18	KNOB, CONTROL
19	CLIP, HARNESS
21	MAY 3406725
22	JUMPER, WIRE
24	Connector-Timer
25	MAY W10192635
26	CONNECTOR, 2-POSITION (GAS VALVE)
27	MAY 3403498
28	MAY 3936150
29	MAY 8533971
30	MAY W10153170
31	MAY 8299891
32	MAY 3405155
33	Connector
34	SWITCH, SIGNAL
35	Plug, Harness
36	MAY 8312709
37	Switch, Push-To-Start
38	MAY W10169851
39	Terminal
40	MAY 8559772
41	MAY W10244065
42	MAY 3936144
43	MAY 3391885
44	Connector (PTS) Relay
45	MAY 8558178
