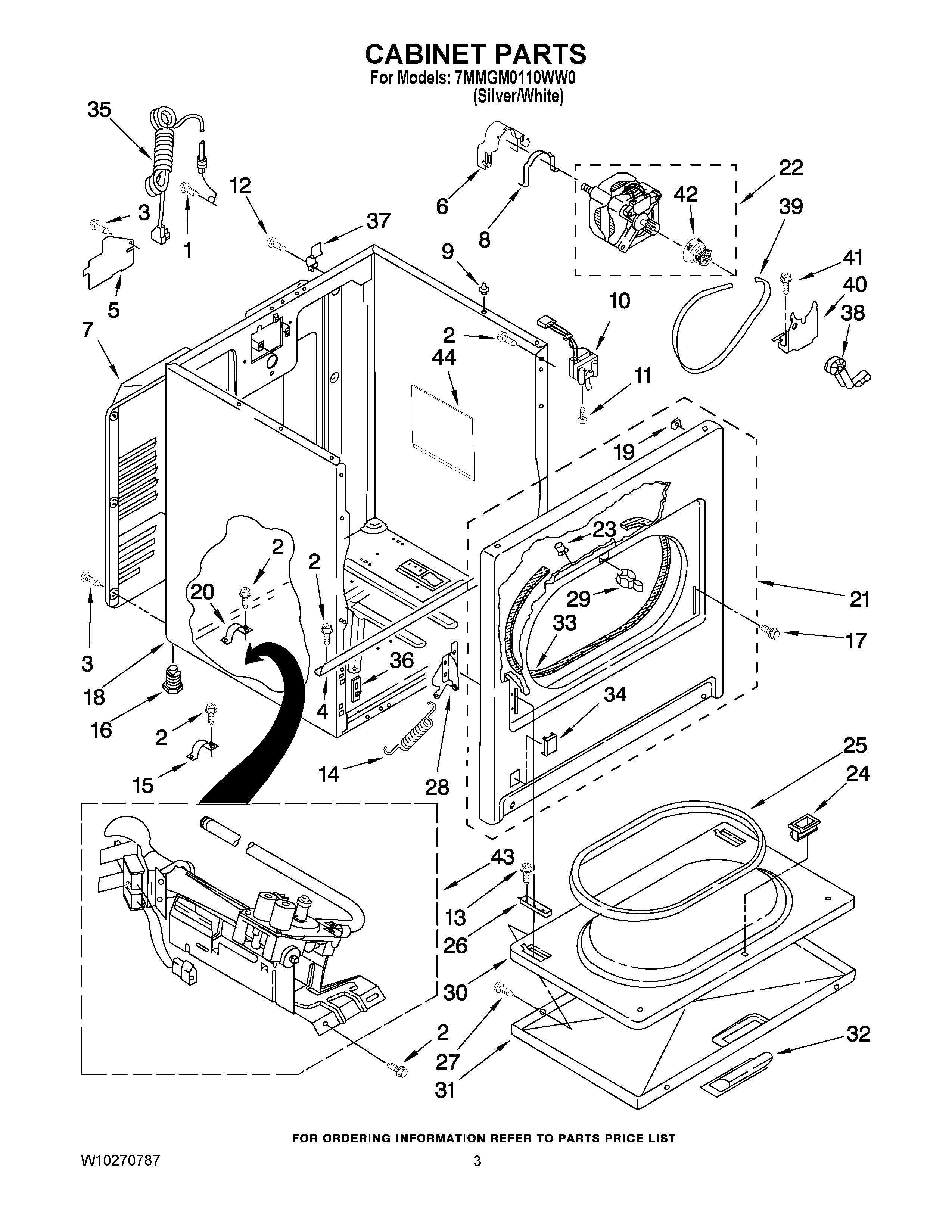

7MMGM0110WW0 02 – CABINET PARTS

Products

Position	Product
1	Screw, 8-18 x 5/8 (External Ground)
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY 3396805
8	CLAMP, MOTOR MOUNT
9	LOCK, FRONT TOP
10	Switch, Door
11	SCREW
12	MAY 359625
13	SCREW
14	MAY W10041960
15	MAY 3980175
16	MAY 3392100
16	MAY 279810
17	MAY 342043
18	CABINET (WHITE)
19	Clip, Ground
20	MAY 341029
21	MAY 8563641
22	MAY 8066206
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3390731
26	MAY 337189
27	MAY 694091
28	HINGE ASSEMBLY (RIGHT SIDE)
28	HINGE ASSEMBLY (LEFT SIDE)
29	MAY 696144
30	MAY 695737
31	Door, Front (White)
32	MAY 8559777
33	MAY 3406129
34	MAY 3394975
35	MAY 344020
36	MAY 3394083
37	Hinge, Top
38	IDLER ASSEMBLY
39	MAY W10131364
40	MAY 348780
41	BOLT
42	Pulley, Motor
43	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
44	MAY W10123956
