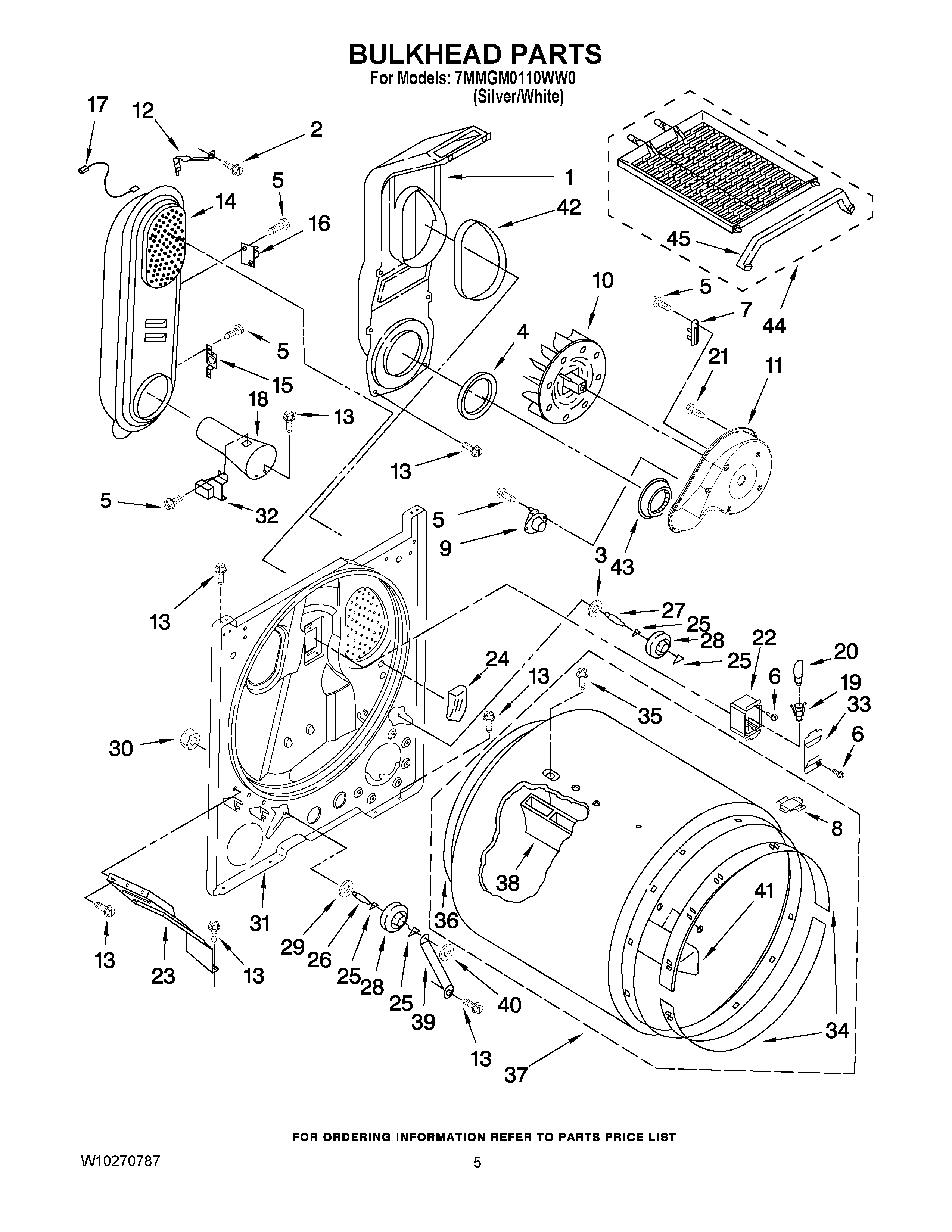

7MMGM0110WW0 03 – BULKHEAD PARTS

Products

Position	Product
1	MAY 348368
2	Screw
3	WASHER
4	MAY 347139
5	SCREW,8-18 X 3/8
6	MAY 487909
7	Fuse, Thermal (91 C)
8	Plug, Drum Hole
9	MAY 8318268
10	Wheel, Blower
11	MAY 8577230
12	CLIP HEATER BOX
13	SCREW
14	BOX, HEATER (96C)
15	Thermostat, 205 F (96C)
16	MAY 280010
17	WIRE JUMPER
18	FUNNEL, BURNER LIGHT
19	MAY W10136369
20	MAY 3406124
21	SCREW
22	MAY 3977373
23	BRACKET, BULKHEAD CHUTE
24	MAY 3976479
25	WASHER, TRI RING
26	MAY 3399506
27	MAY 3399507
28	MAY 3397590
29	WASHER
30	Nut, 3/8-16
31	MAY 3403414
32	MAY 338906
33	MAY 3402841
34	Bearing, Ring
35	MAY W10219342
36	MAY 3406130
37	MAY 695587
38	BAFFLE, DRUM (LONG)
39	MAY 3976434
40	NUT, PUSH ON
41	BAFFLE, DRUM (SHORT)
42	MAY 339956
43	MAY 696302
44	MAY 3406839
45	MAY 692989
