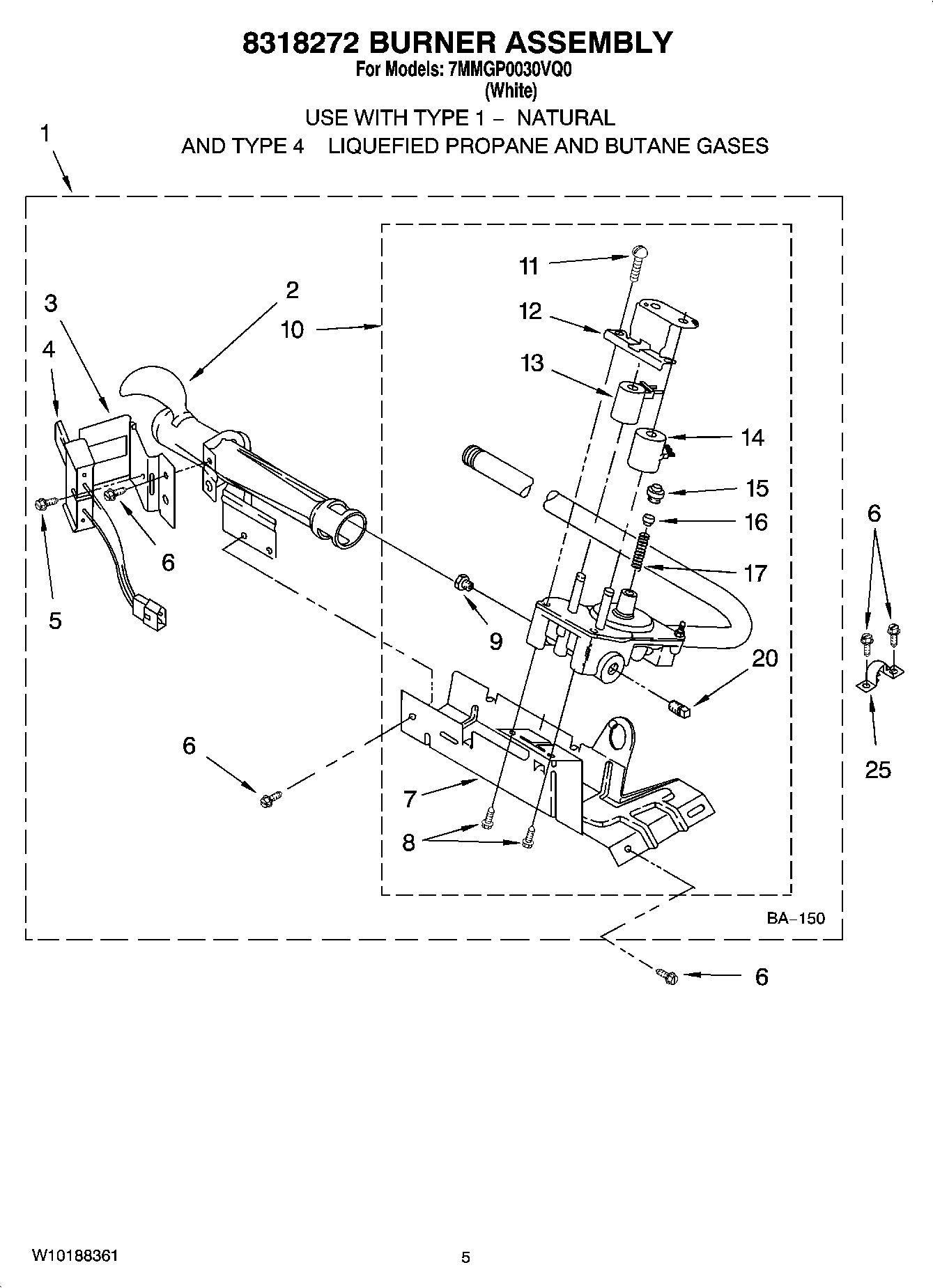

7MMGP0030VQ0 03 – 8318272 BURNER ASSEMBLY

Products

Position	Product
	CONVERSION KIT (TYPE 1 AND 2) TO TYPE (4) L.P.G.
1	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
2	MAY 688617
3	MAY 694298
4	MAY 686590
5	MAY 3393909
6	SCREW
7	MAY 693986
8	SCREW
9	TYPE 1 (NATURAL)
9	Orifice, Burner (Type 4 (Propane))
9	MAY 234868
10	VALVE, GAS (60 HZ)
11	SCREW, COIL
12	MAY 694538
13	MAY 694540
14	COIL, 60 HZ (SPLIT) (3TERMINAL) (PILOT POSITION)
15	MAY 694424
16	MAY 694423
17	MAY 694422
20	MAY 239822
25	MAY 341029
