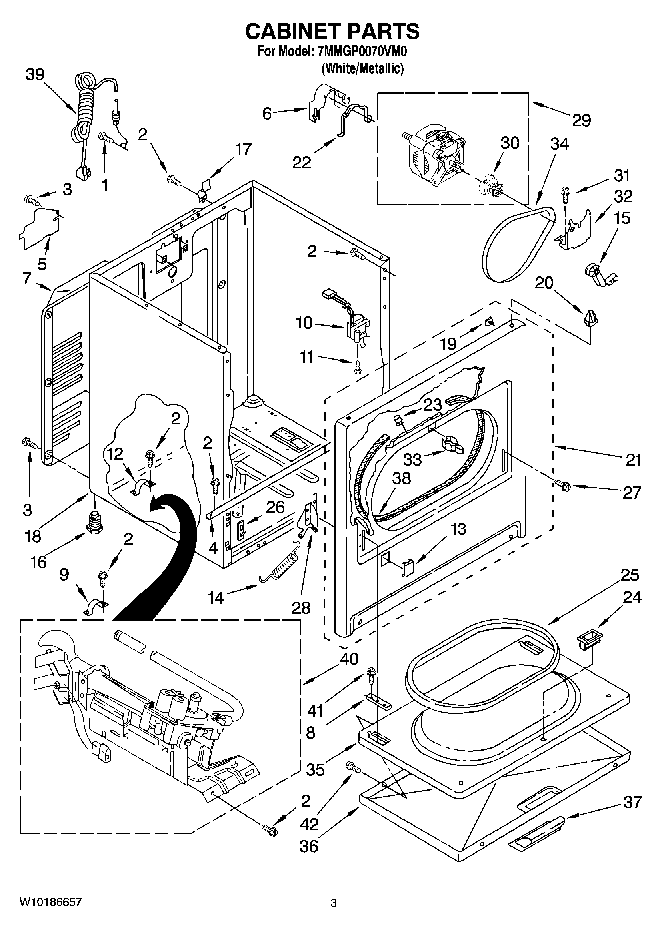

7MMGP0070VM0 02 – CABINET PARTS

Products

Position	Product
1	Screw, 8-18 x 5/8 (External Ground)
2	SCREW
3	Screw
4	MAY 8541400
5	MAY 3396795
6	Clamp, Motor (With Shield)
7	MAY 3396805
8	MAY 337189
9	MAY 3980175
10	MAY 3406109
11	SCREW
12	MAY 341029
13	MAY 3394975
14	MAY W10041960
15	IDLER ASSEMBLY
16	MAY 3392100
16	MAY 279810
17	Hinge, Top
18	CABINET (WHITE)
19	Clip, Ground
20	LOCK, FRONT TOP
21	MAY 8563641
22	MAY 660658
23	Clip, Felt Pad
24	DOOR CATCH ASSEMBLY
25	MAY 3390731
26	MAY 3394083
27	MAY 342043
28	HINGE ASSEMBLY (RIGHT SIDE)
28	HINGE ASSEMBLY (LEFT SIDE)
29	MAY 8066206
30	Pulley, Motor
31	BOLT
32	MAY 348780
33	MAY 696144
34	MAY W10131364
35	MAY 695737
36	Door, Front (White)
37	MAY 8559777
38	MAY 3406129
39	MAY 344020
40	Burner Assembly 60 Hz. (Type 1) (White Rodgers)
41	MAY 694091
42	SCREW
