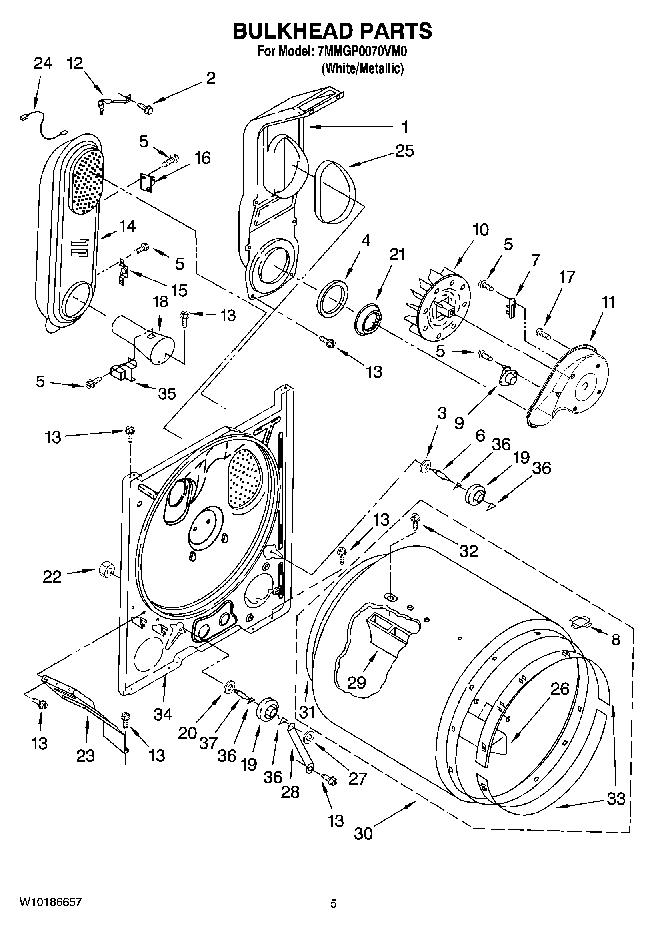

7MMGP0070VM0 03 – BULKHEAD PARTS

7MMGP0070VM0 03 – BULKHEAD PARTS

Written by

in

7MMGP0070VM0 03 – BULKHEAD PARTS

Products

PositionProduct
1MAY 348368
2Screw
3WASHER
4MAY 347139
5SCREW,8-18 X 3/8
6MAY 3399507
7Fuse, Thermal (91 C)
8Plug, Drum Hole
9MAY 3387134
10Wheel, Blower
11MAY 8577230
12CLIP HEATER BOX
13SCREW
14BOX, HEATER (96C)
15Thermostat, 205 F (96C)
16MAY 280010
17SCREW
18FUNNEL, BURNER LIGHT
19MAY 3397590
20WASHER
21MAY 696302
22Nut, 3/8-16
23BRACKET, BULKHEAD CHUTE
24WIRE JUMPER
25MAY 339956
26BAFFLE, DRUM (SHORT)
27NUT, PUSH ON
28MAY 3976434
29BAFFLE, DRUM (LONG)
30MAY 695587
31MAY 3406130
32MAY W10109200
33Bearing, Ring
34MAY 3403410
35MAY 338906
36WASHER, TRI RING
37MAY 3399506
