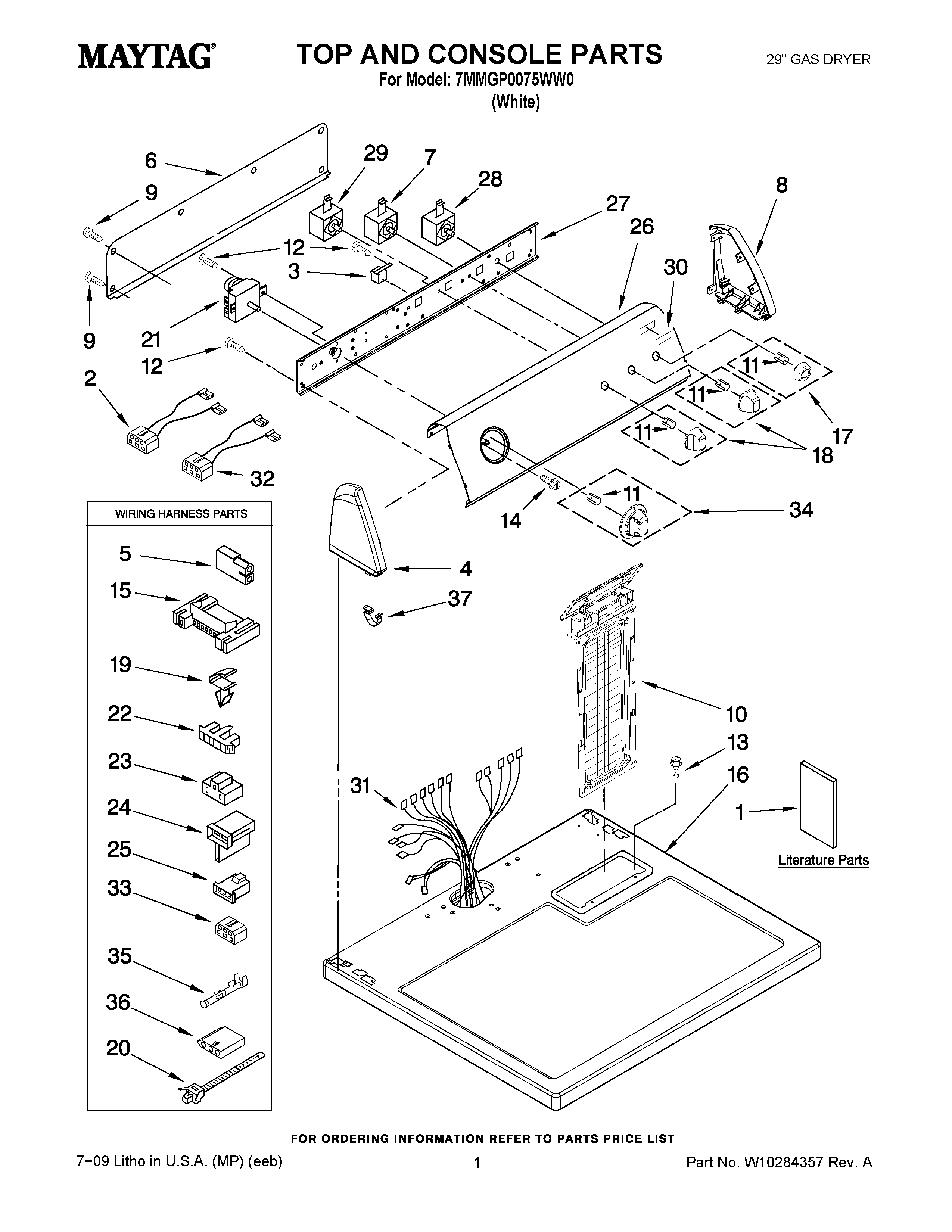

7MMGP0075WW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	MAY W10246604
1	MAY W10118198
1	MAY 8578217
2	MAY 3401695
3	MAY 694419
4	ENDCAP ASSEMBLY, LEFT HAND (WHITE)
5	Plug, 2-Way Terminal
6	MAY 8274261
7	Switch, Temperature
8	ENDCAP ASSEMBLY, RIGHT HAND (WHITE)
9	Screw
10	LINT SCREEN (WHITE)
11	CLIP, SPRING
12	MAY 8533971
13	SCREW
14	MAY 8533951
15	CONNECTOR (MOTOR)
16	MAY 8559800
17	MAY 3956790
18	MAY 3956788
19	CLIP, HARNESS
20	Tie, Cable
21	Timer Assembly (60 Hz.)
22	Connector-Timer
23	Connector (PTS) Relay
24	CONNECTOR, 2-POSITION (GAS VALVE)
25	MAY 3403498
26	MAY W10244064
27	MAY 8559772
28	Switch, Push-To-Start
29	Switch, Wrinkle Guard
30	MAY W10153170
31	MAY 8299878
32	Jumper, Three Temperature
33	Connector
34	MAY 8571409
35	Terminal
36	MAY 3936144
37	MAY 8312709
