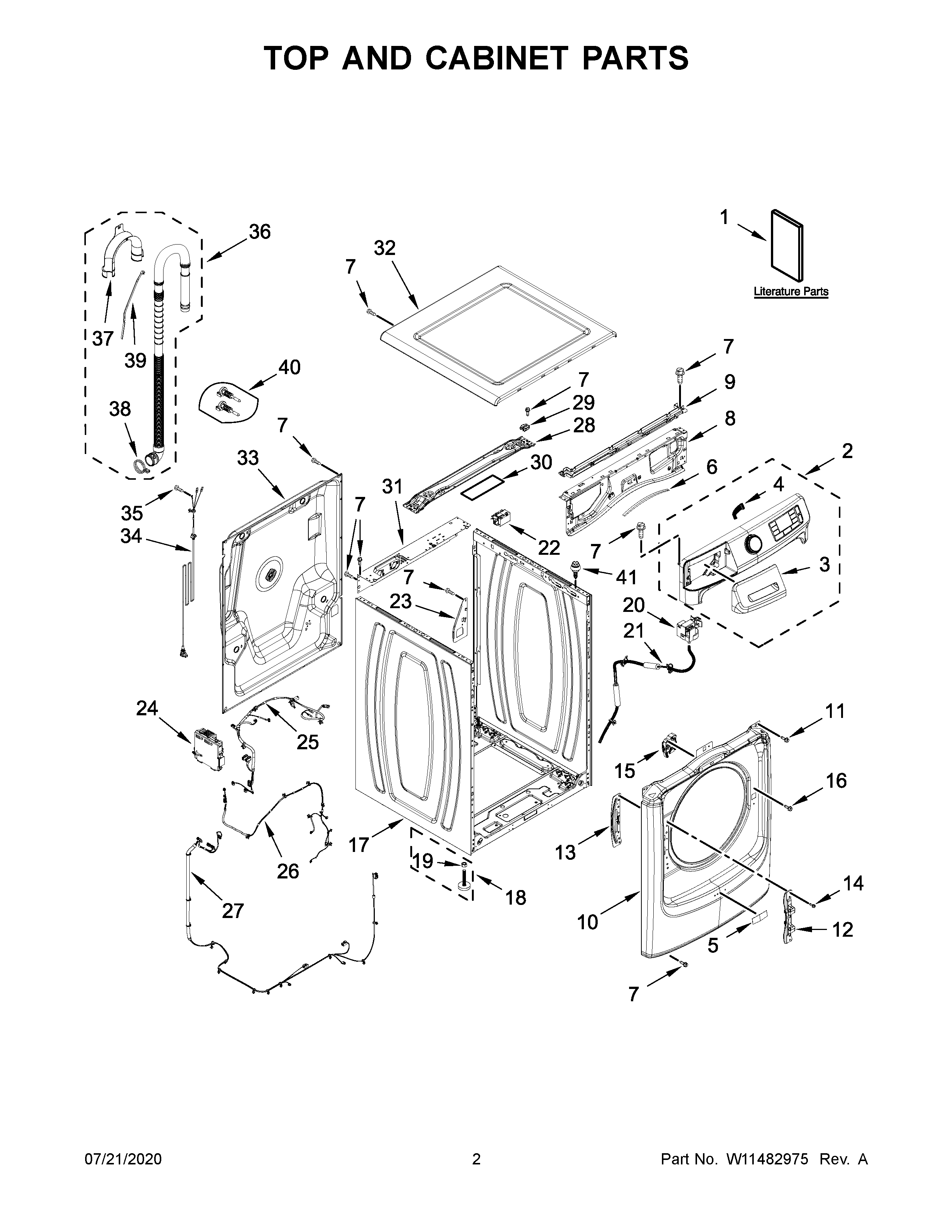

7MMHW6621HW1 02 – TOP AND CABINET PARTS

Products

PositionProduct
1BMAY W11296607
1AMAY W11174305
1CMAY W11174313
1MAY W11174307
2ASSEMBLY, CONSOLE (WHITE)
2AASSEMBLY, CONSOLE (CHROME SHADOW)
3HANDLE, DRAWER (WHITE)
3AHANDLE, DRAWER (CHROME SHADOW)
4MAY W10920818
5BADGE, MAYTAG
6EDGE GUARD
7MAY W10567155
8BRACKET, CONSOLE
9CHANNEL, WATER
10PANEL, FRONT (WHITE)
10APANEL, FRONT (CHROME SHADOW)
11SCREW
12HINGE BASE
13BRACKET, HINGE
14MAY W10288126
15LOCK, DOOR
16MAY 8540282
17ACABINET (CHROME SHADOW)
17CABINET (WHITE)
18LEVELING LEG ASSEMBLY
19Nut, 3/8-16
20PRESSURE SWITCH
21HOSE, PRESSURE SWITCH
22RFI FILTER
23BRACKET, DRAIN HOSE
24MAY W11466223
25HARNESS, UPPER
26HARNESS, NTC
27HARNESS, MAIN LOWER
28BRACE, TOP
29RETAINER, SPRING
30FOAM PAD
31BRACKET, REAR
32TOP (WHITE)
32AMAY W10460693
33PANEL, REAR
34CORD, POWER
35SCREW
36HOSE, DRAIN (EXTERNAL)
37MAY W10280024
38MAY 356138
39TIE, CABLE
40BOLT, TRANSPORT (SHORT)
41SCREW AND BUSHING ASSEMBLY
