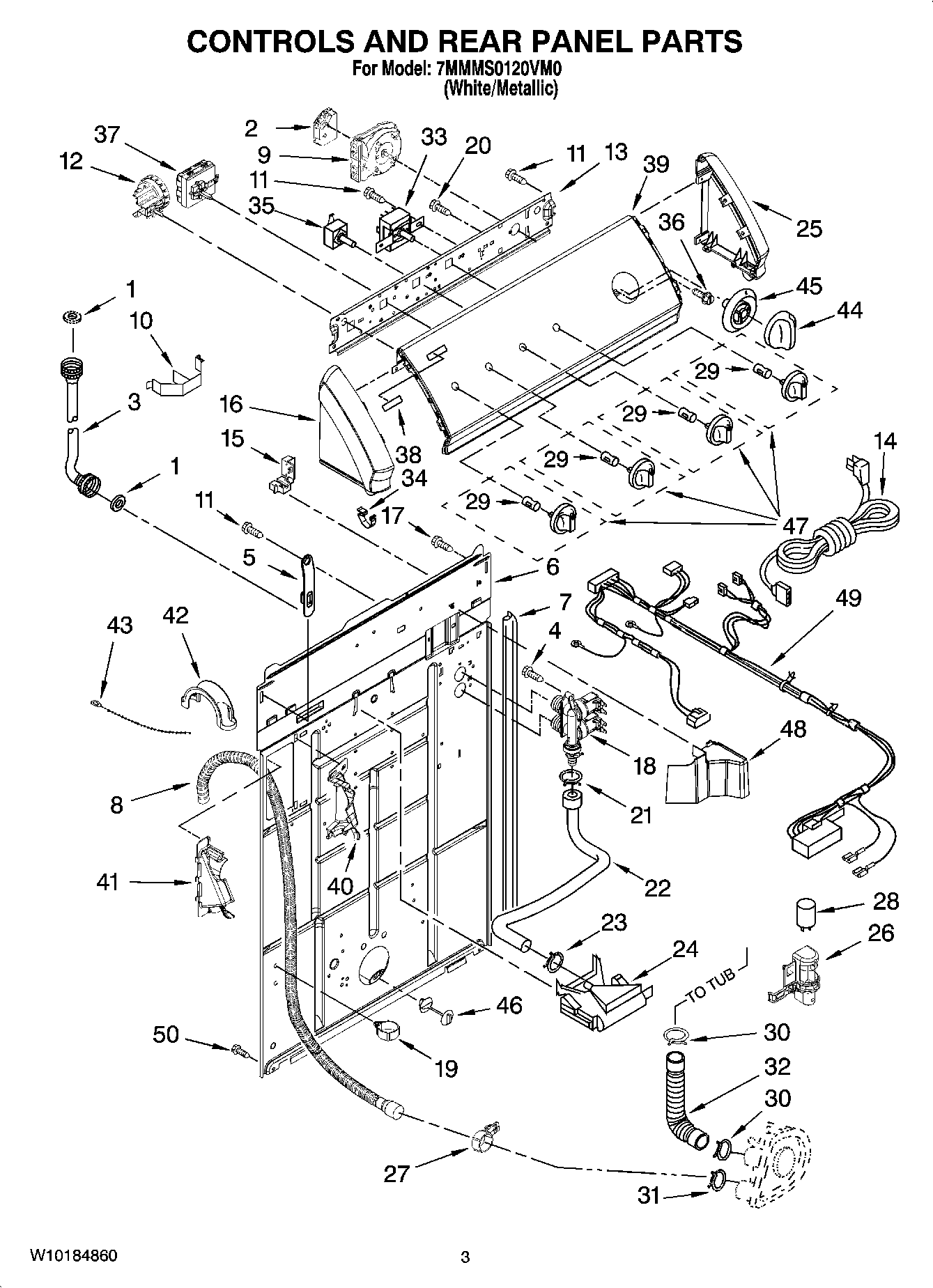

7MMMS0120VM0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, INLET HOSE
2	MAY 8578411
3	Hose, Water Inlet (Hot Water)
3	Hose, Water Inlet (2) (Blue Coupler)
4	SCREW
5	Strap, Console
6	MAY 8318015
7	MAY 62747
8	Drain Hose Assembly (Includes Items 22, 28 & 32)
9	MAY 8577787
10	Clip, Harness & Pressure Switch
11	SCREW,8-18 X 3/8
12	MAY 8577844
13	MAY 8559504
14	Cord, Power (Includes Item 15)
15	MAY 3952821
16	MAY W10128464
17	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
18	Valve, Water Inlet W/Thermistor
19	MAY 8541667
20	SCREW
21	MAY 301958
22	MAY 8317974
23	MAY 370450
24	Thermister, Inlet
25	MAY W10128463
26	MAY 8318046
27	MAY 8541668
28	MAY 8572717
29	CLIP, SPRING
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	MAY 8578537
34	MAY W10129041
35	MAY 3949187
36	SCREW
37	MAY W10113058
38	MAY W10112569
39	MAY W10155428
40	MAY 8541669
41	MAY 8541658
42	U-Bend
43	MAY 3347868
44	MAY 3956786
45	MAY 8559524
46	MAY 8519200
47	MAY 3956788
48	MAY 8314879
49	Harness, Wiring (Includes Item 33) (For Detail See Pages 9 & 10)
50	Screw, Mixing Valve Mounting
