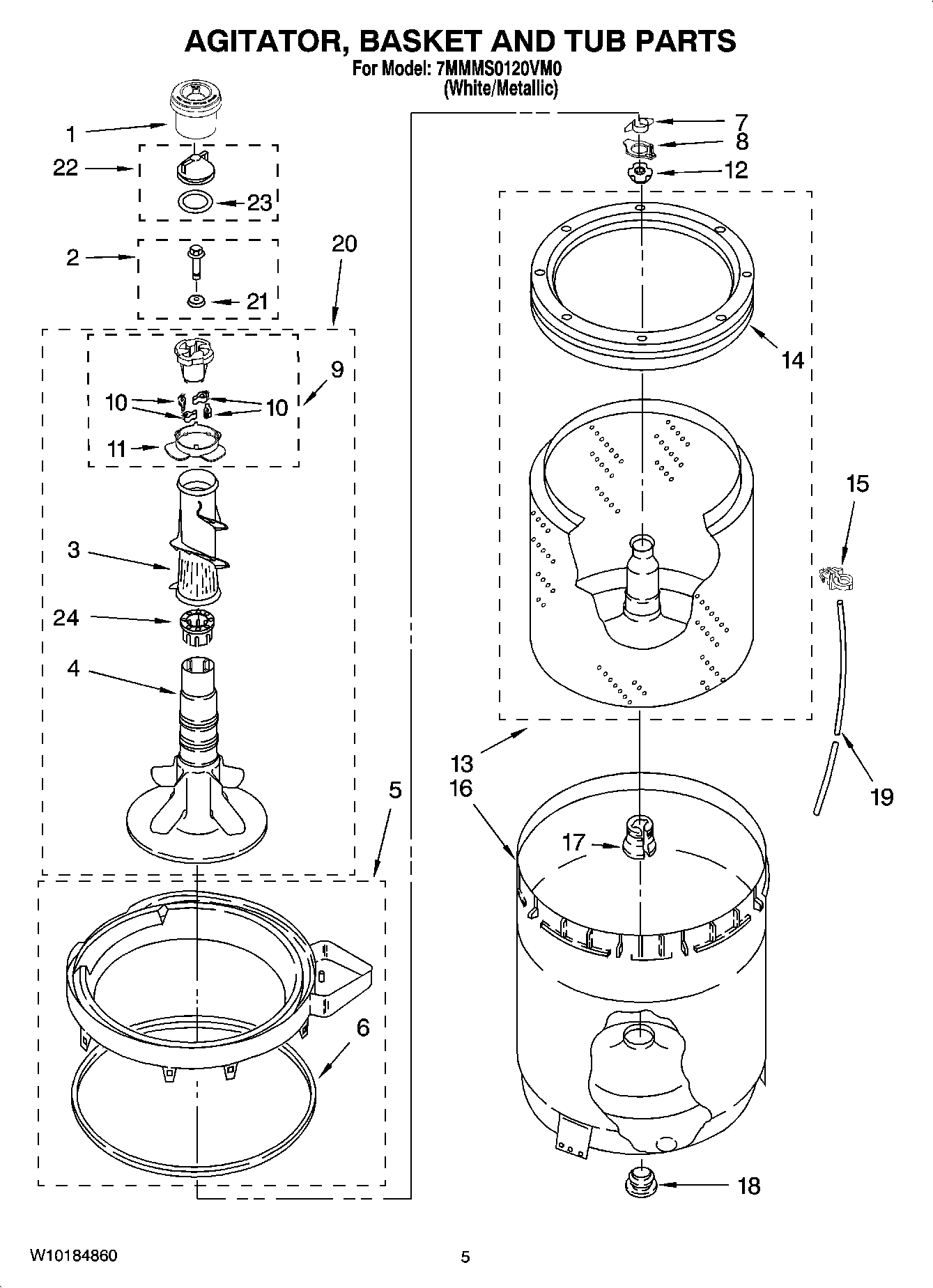

7MMMS0120VM0 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8565968
2	Screw & Washer
3	MAY 3349019
4	MAY W10110020
5	Tub Ring
6	MAY 3976308
7	MAY 3354845
8	MAY 8543666
9	MAY 3363663
10	Dog, Agitator (4)
11	BEARING, CAM
12	MAY 21366
13	MAY 8526016
14	Ring, Balance
15	Clip, Harness (1)
16	MAY 63849
17	Block, Drive
18	MAY 383727
19	MAY 3347780
20	MAY W10093672
21	MAY 3949550
22	MAY 3354733
23	MAY W10072840
24	SPACER, THRUST
