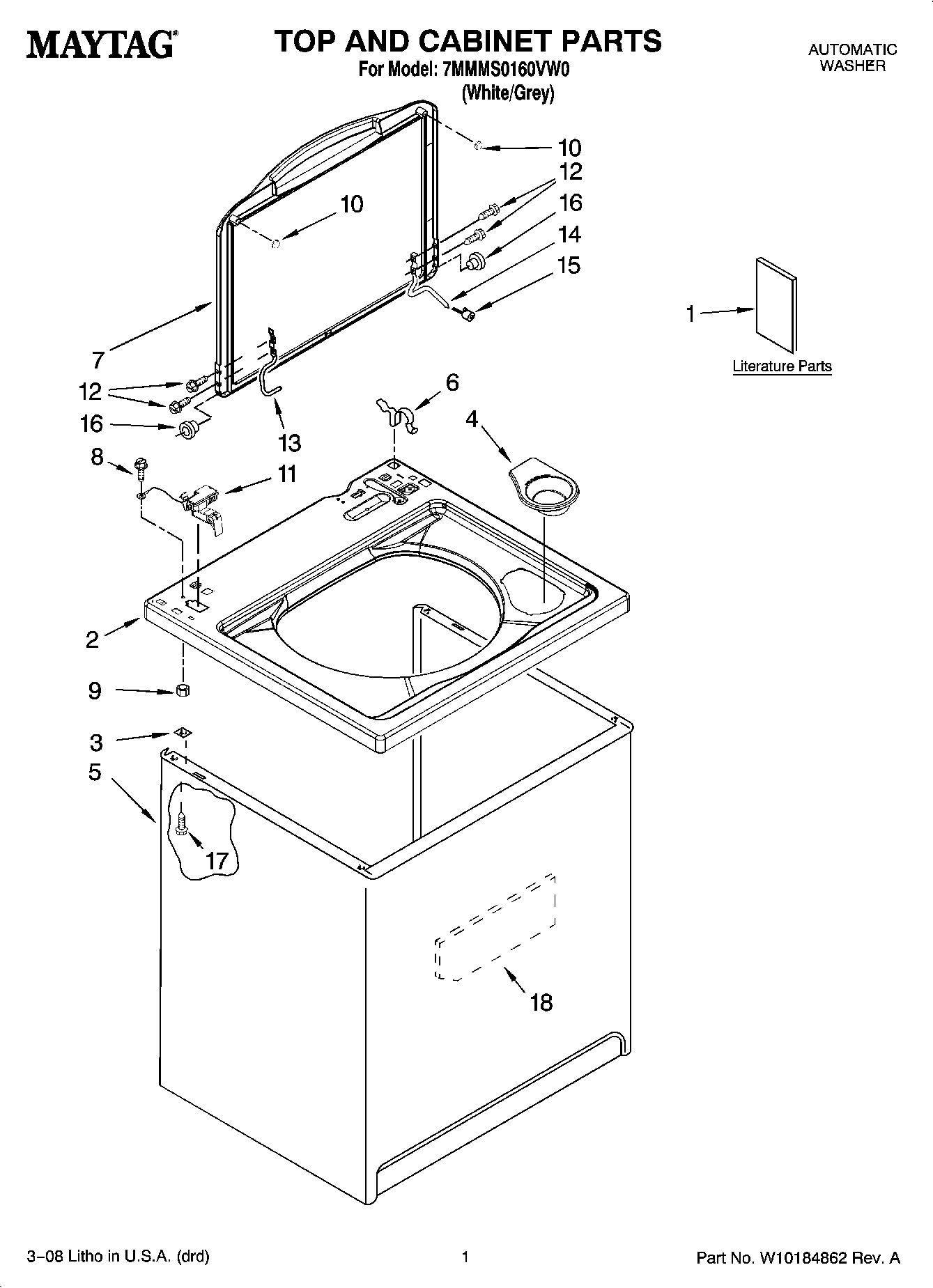

7MMMS0160VW0 01 – TOP AND CABINET PARTS

7MMMS0160VW0 01 – TOP AND CABINET PARTS

Written by

in

7MMMS0160VW0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10153876
1MAY W10155433
1MAY W10155432
1MAY W10096821
2MAY 8543488
3MAY 62750
4MAY 8565967
5Cabinet
6MAY 62780
7LID ASSEMBLY
8SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
9MAY 8533959
10Bumper, Lid (2)
11MAY 8318084
12SCREW, LID HINGE
13MAY 8559336
14HINGE, LID (RIGHT HAND)
15MAY 19119
16MAY 8319539
17SCREW
18Absorber, Sound (Cabinet) (3)
