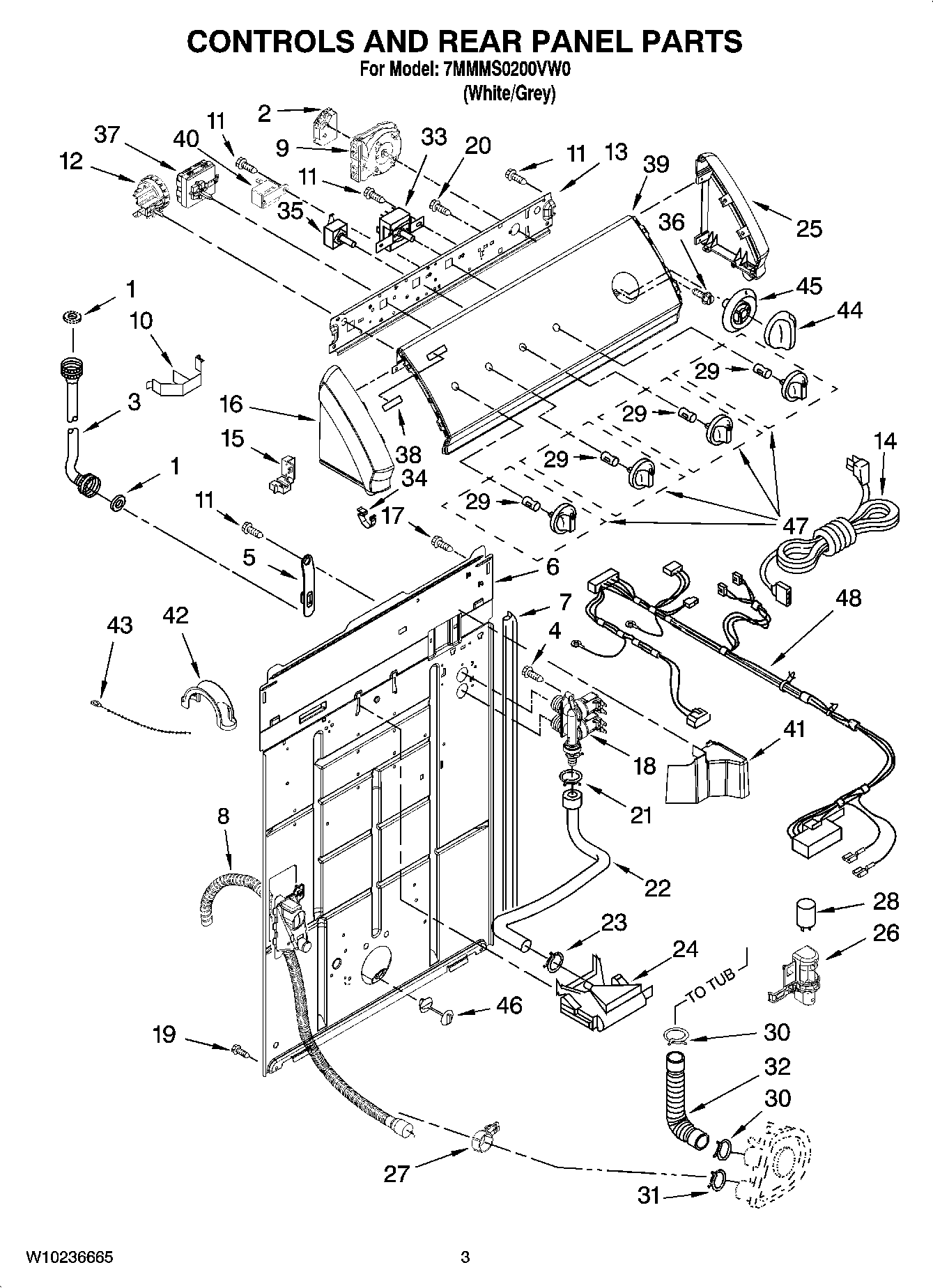

7MMMS0200VW0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, INLET HOSE
2	MAY 8578411
3	MAY W10194210
3	HOSE, INLET (HOT)
4	SCREW
5	Strap, Console
6	MAY W10194451
7	MAY 62747
8	MAY W10189267
9	MAY 8577787
10	Clip, Harness & Pressure Switch
11	SCREW,8-18 X 3/8
12	MAY 8577843
13	MAY 8559504
14	Cord, Power (Includes Item 15)
15	MAY 3952821
16	ENDCAP ASSEMBLY, LEFT HAND (WHITE)
17	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
18	Valve, Water Inlet W/Thermistor
19	Screw, Mixing Valve Mounting
20	SCREW
21	MAY 301958
22	MAY 8317974
23	MAY 370450
24	Thermister, Inlet
25	ENDCAP ASSEMBLY, RIGHT HAND (WHITE)
26	MAY 8318046
27	MAY 8541668
28	MAY 8572717
29	CLIP, SPRING
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	MAY 8578537
34	MAY 8312709
35	MAY 3950356
36	SCREW
37	MAY W10142639
38	Badge
39	MAY W10208802
40	MAY 694419
41	MAY 8314879
42	U-Bend
43	MAY 3347868
44	MAY 3956786
45	MAY 8559524
46	MAY 8519200
47	MAY 3956788
48	Harness, Wiring (Includes Item 33) (For Detail See Pages 9 & 10)
