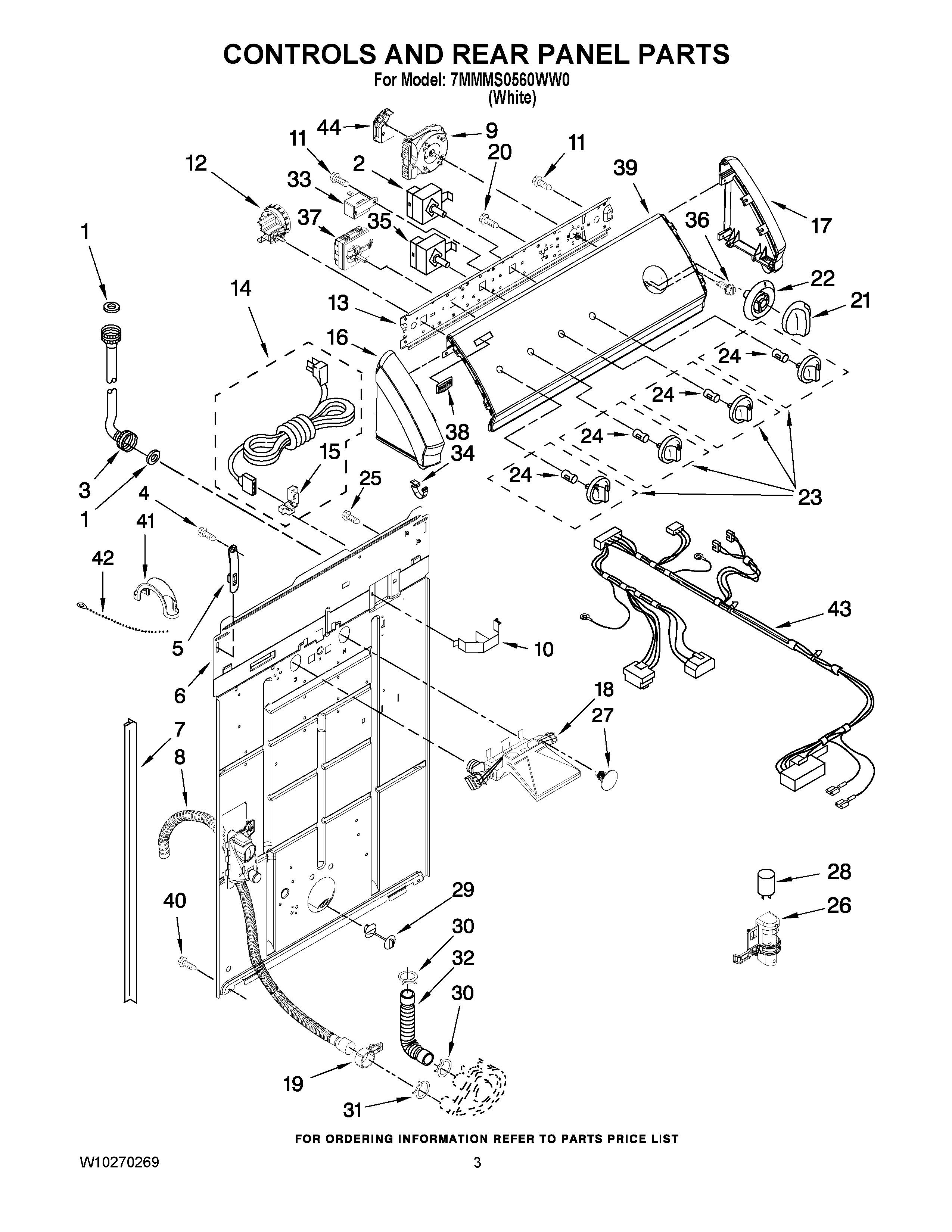

7MMMS0560WW0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, HOSE
2	MAY W10163674
3	MAY W10194210
3	HOSE, INLET (HOT)
4	SCREW
5	Strap, Console
6	MAY W10194450
7	MAY 62747
8	MAY W10189267
9	MAY 8577787
10	Clip, Harness & Pressure Switch
11	SCREW,8-18 X 3/8
12	MAY 8577843
13	MAY 8559504
14	Cord, Power (Includes Item 15)
15	MAY 3952821
16	ENDCAP ASSEMBLY, LEFT HAND (WHITE)
17	ENDCAP ASSEMBLY, RIGHT HAND (WHITE)
18	MAY W10284557
19	MAY 8541668
20	SCREW
21	MAY W10169849
22	MAY W10169848
23	KNOB, CONTROL
24	CLIP, SPRING
25	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
26	MAY 8318046
27	RETAINER, PUSH-IN
28	MAY 8572717
29	MAY 8519200
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	MAY 694419
34	MAY 8312709
35	MAY 3950356
36	SCREW
37	MAY W10142639
38	MAY W10153170
39	MAY W10244059
40	Screw, Mixing Valve Mounting
41	U-Bend
42	MAY 3347868
43	MAY W10248265
44	MAY 8578411
