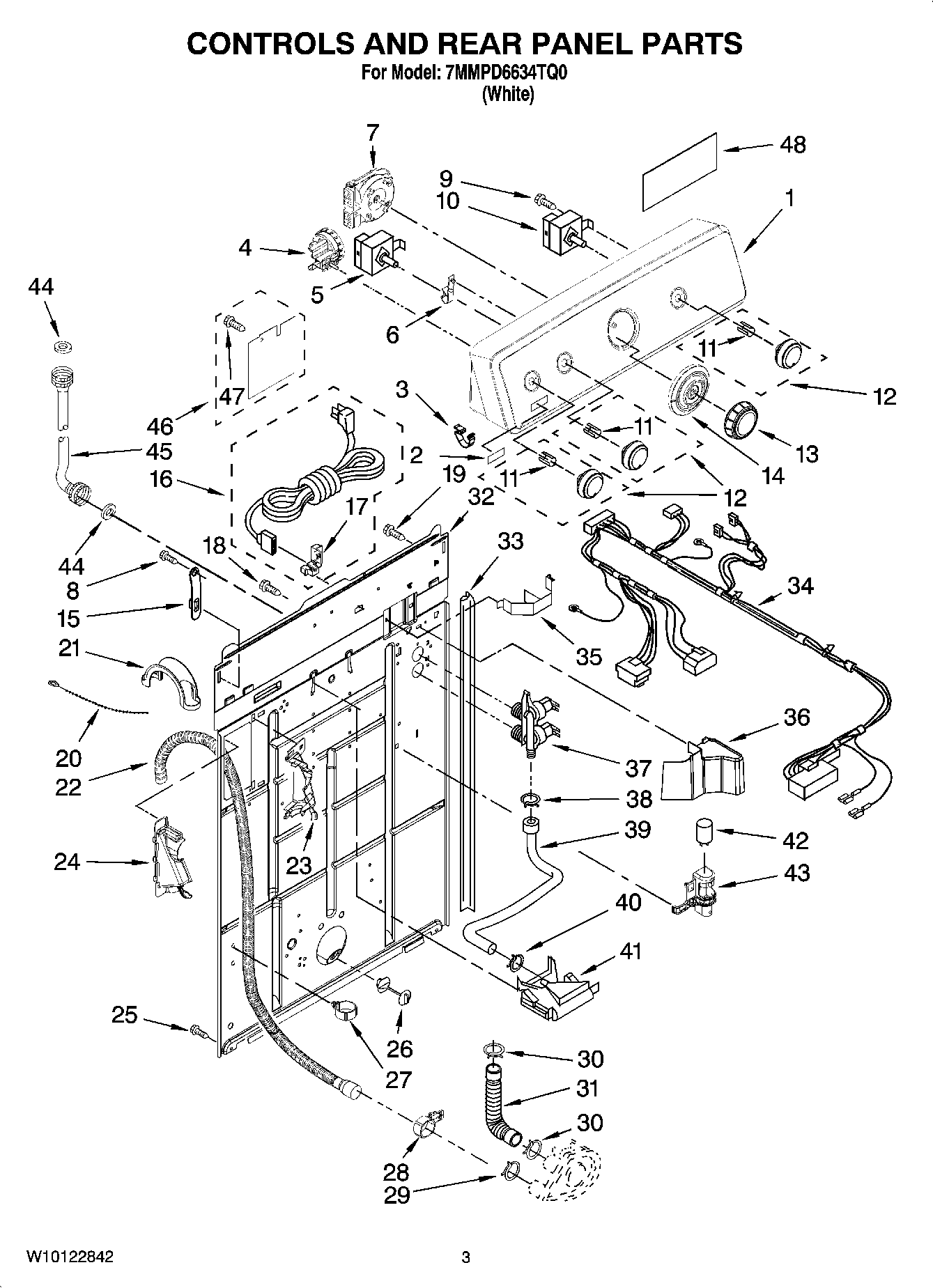

7MMPD6634TQ0 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	MAY W10115392
2	MAY W10112569
3	MAY 8312709
4	MAY 8577844
5	MAY 661612
6	MAY 8317975
7	MAY W10111389
8	SCREW,8-18 X 3/8
9	SCREW
10	MAY 3949187
11	CLIP, SPRING
12	Knob, Control (3)
13	MAY W10110027
14	MAY W10110028
15	Strap, Console
16	Cord, Power (Includes Item 15)
17	MAY 3952821
18	SCREW
19	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
20	MAY 3347868
21	U-Bend
22	Drain Hose Assembly (Includes Items 22, 28 & 32)
23	MAY 8541669
24	MAY 8541658
25	Screw, Mixing Valve Mounting
26	MAY 8519200
27	MAY 8541667
28	MAY 8541668
29	MAY 8317496
30	Clamp, Hose (2)
31	Hose & Clamp Assembly
32	MAY 8318015
33	MAY 62747
34	MAY W10118799
35	Clip, Harness & Pressure Switch
36	MAY 8314879
37	MAY 3952164
38	MAY 301958
39	MAY 8541607
40	MAY 370450
41	Thermister, Inlet
42	MAY 8572717
43	MAY 8318046
44	ACCESSORY PARTS, WASHER, INLET HOSE
45	Hose, Water Inlet (2) (Blue Coupler)
45	Hose, Water Inlet (Hot Water)
46	MAY W10093726
47	RETAINER, PUSH-IN
48	MAY W10093725
