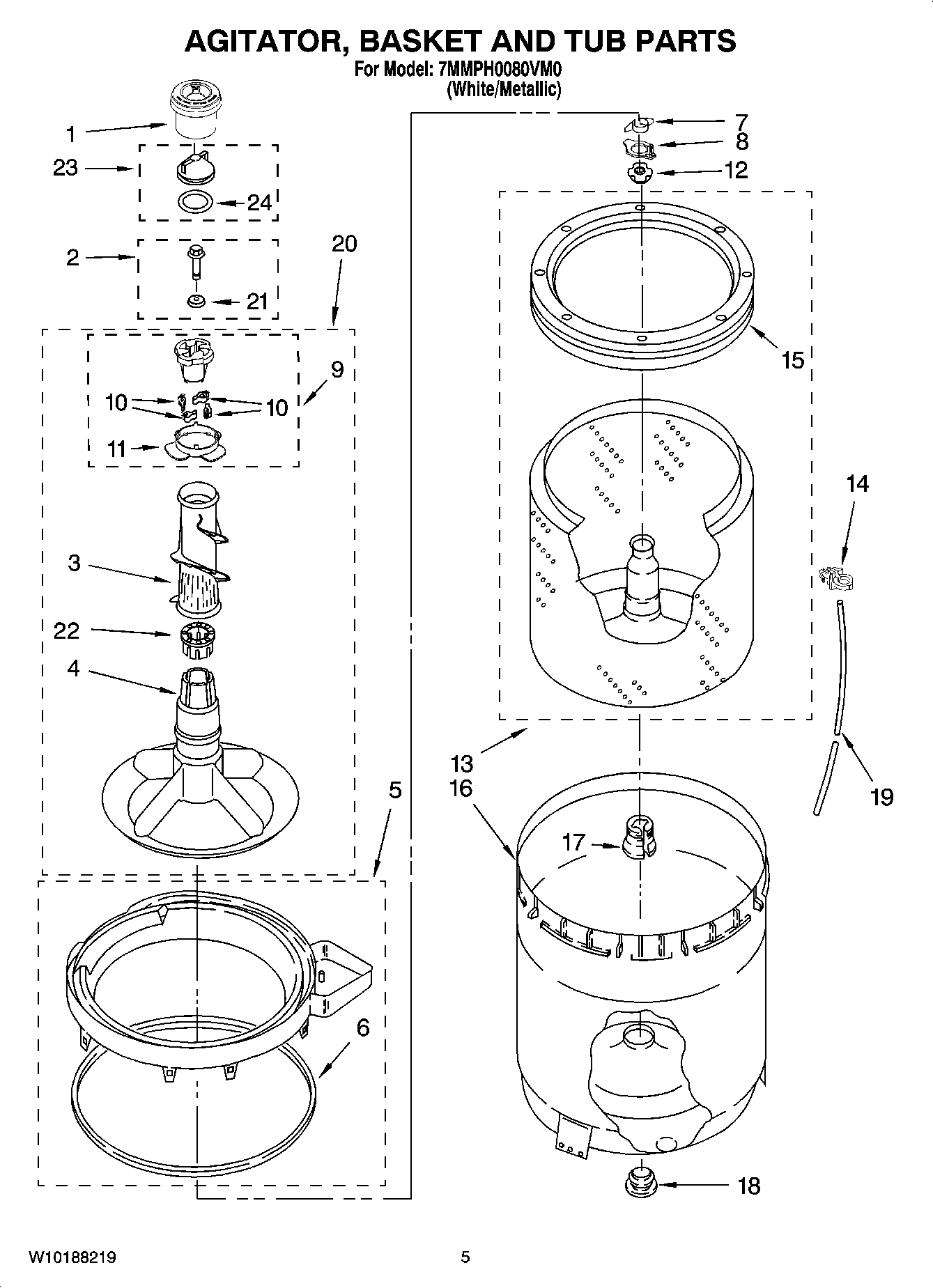

7MMPH0080VM0 03 – AGITATOR, BASKET AND TUB PARTS

7MMPH0080VM0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

7MMPH0080VM0 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8575076
2	Screw & Washer
3	MAY 3363003
4	MAY W10093695
5	Ring, Tub
6	MAY 3976308
7	MAY 3354845
8	MAY 8543666
9	MAY 3951682
10	Dog, Agitator (4)
11	Bearing, Cam Driven
12	MAY 21366
13	MAY 8526016
14	Clip, Harness (1)
15	Ring, Balance
16	MAY 63849
17	Block, Drive
18	MAY 383727
19	MAY 3347780
20	MAY W10093696
21	MAY 3949550
22	Spacer, Thrust
23	MAY 3354733
24	MAY W10072840
