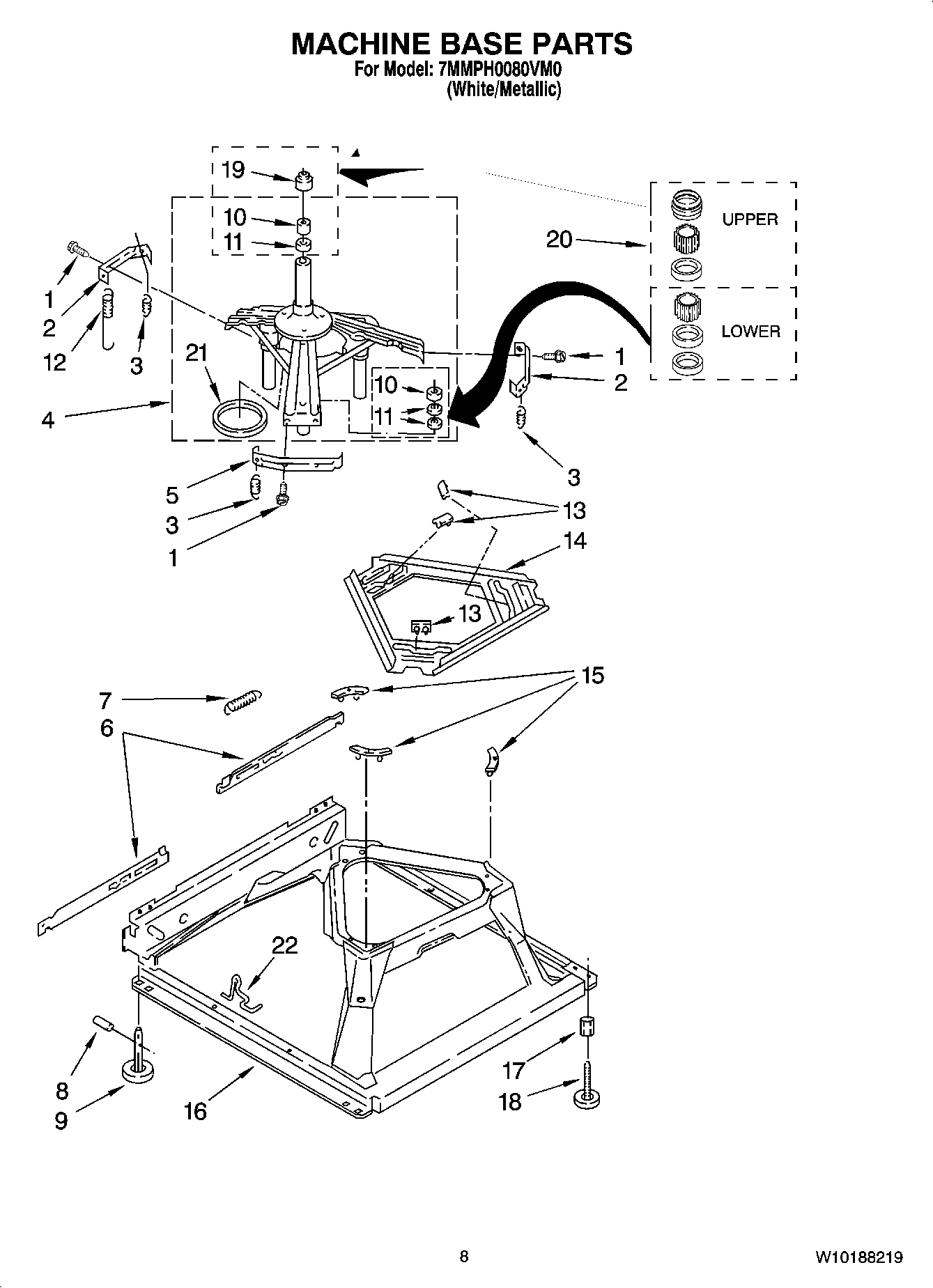

7MMPH0080VM0 05 – MACHINE BASE PARTS

Products

Position	Product
1	Screw, 10-32 x 5/8
2	MAY 64067
3	SPRING, SUSPENSION(3)
4	MAY 8575214
5	MAY 64065
6	MAY 63466
7	MAY 62597
8	MAY 62837
9	MAY 62596
10	MAY 8546455
11	MAY 357409
12	MAY 388492
13	MAY 62568
14	MAY 3946509
15	MAY 3363660
16	Base Assembly (Includes Items 6, 7, 8, 9, 13, 14, 15 & 22)
17	Nut, 3/8-16
18	MAY W10001130
19	MAY 8577376
20	MAY 285203
21	MAY 63134
22	MAY W10145155
