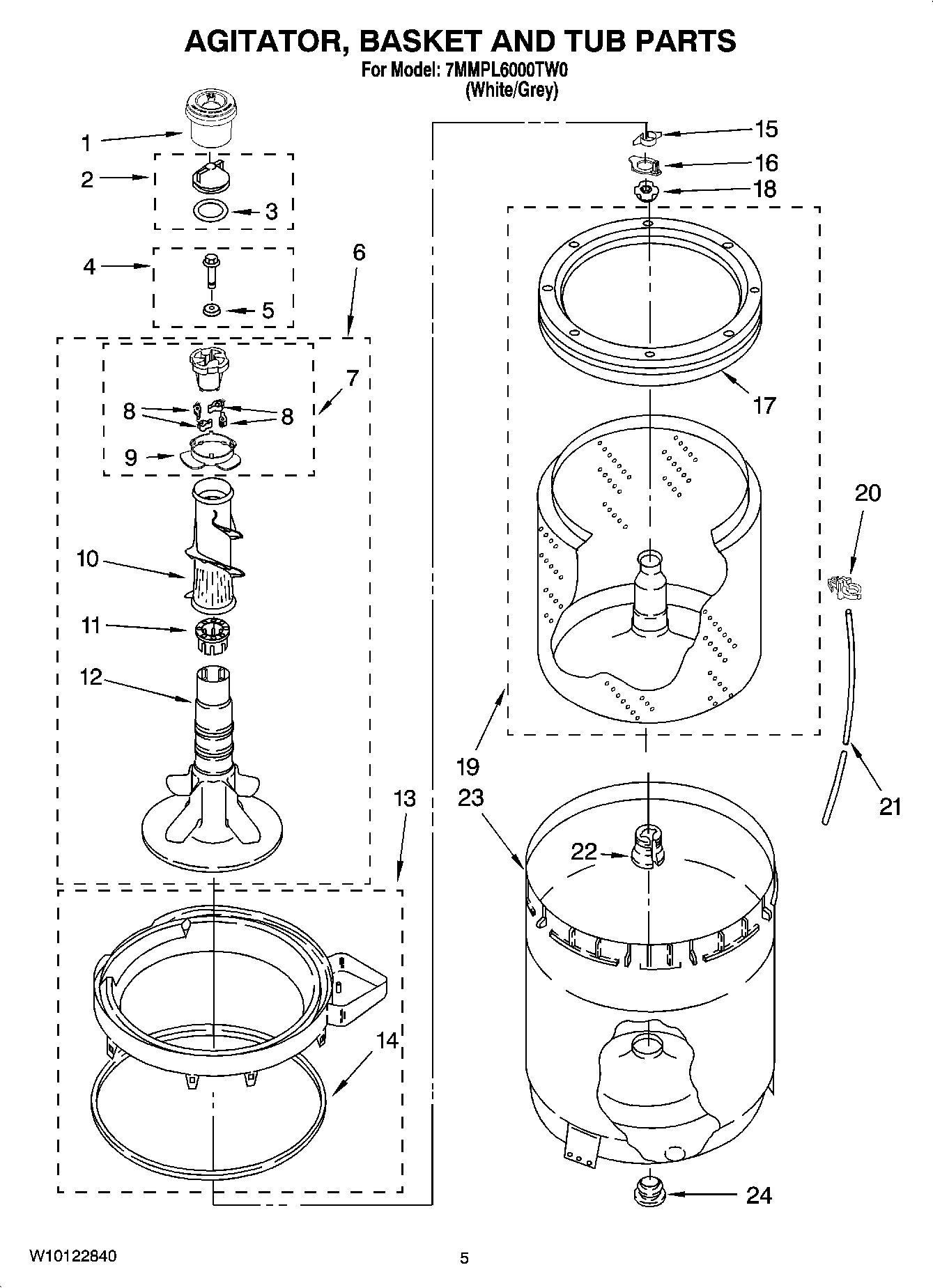

7MMPL6000TW0 03 – AGITATOR, BASKET AND TUB PARTS

7MMPL6000TW0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

7MMPL6000TW0 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8565968
2	MAY 3354733
3	Seal, Inner Cap
4	Screw & Washer
5	MAY 3949550
6	MAY W10093672
7	MAY 3363663
8	Dog, Agitator (4)
9	BEARING, CAM
10	MAY 3349019
11	SPACER, THRUST
12	MAY W10110020
13	Tub Ring
14	MAY 3976308
15	MAY 3354845
16	MAY 8543666
17	MAY W10118233
18	MAY W10116603
19	Basket
20	Clip, Harness (1)
21	MAY 3347780
22	Block, Drive
23	MAY 63849
24	MAY 383727
