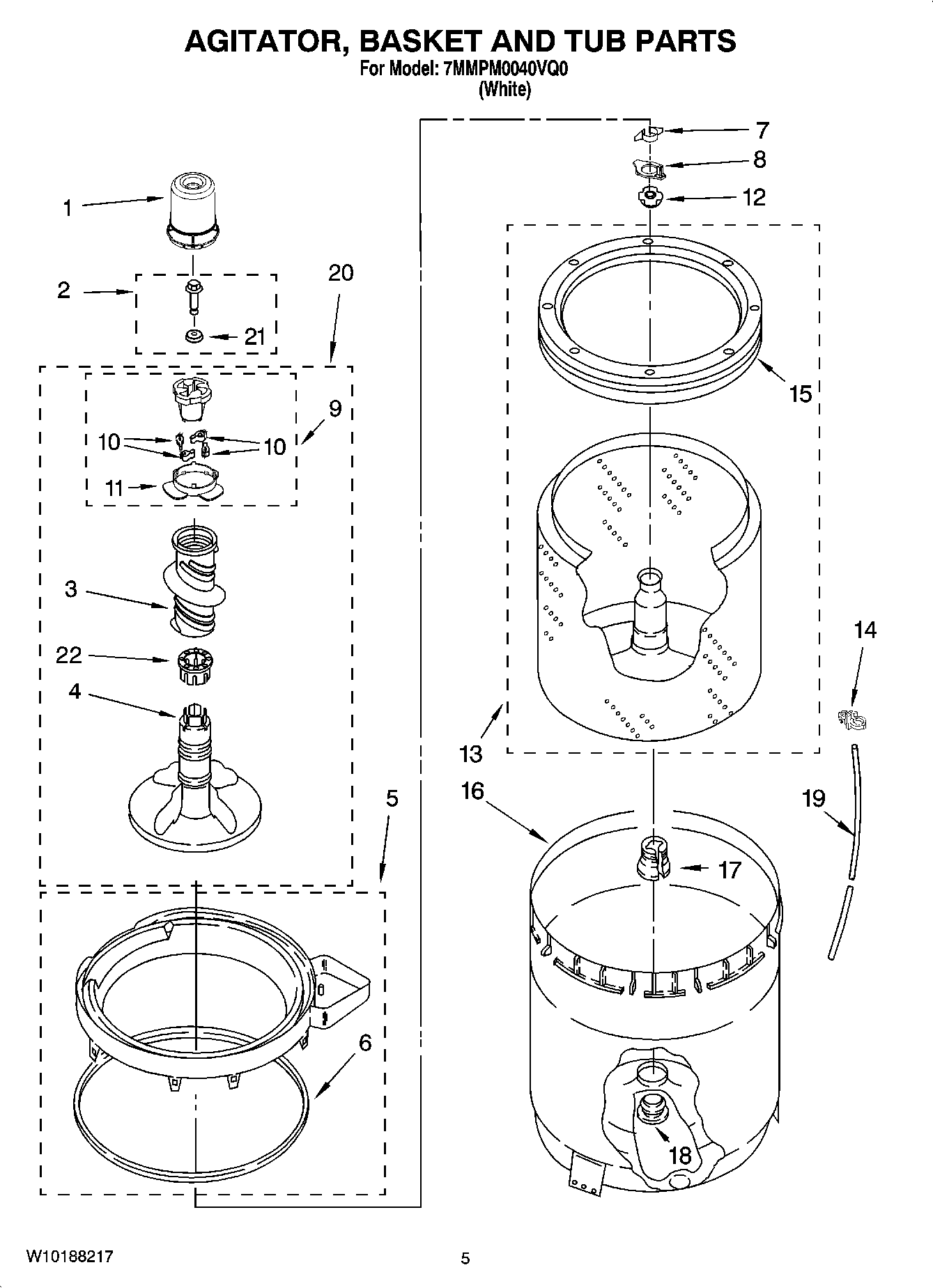

7MMPM0040VQ0 03 – AGITATOR, BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8533251
2	Screw & Washer
3	MAY 3360824
4	MAY 389386
5	Tub Ring
6	MAY 3976308
7	MAY 3354845
8	MAY 8543666
9	Cam, Driven
10	Dog, Agitator (4)
11	BEARING, CAM
12	MAY 21366
13	MAY 8526016
14	Clip, Harness (1)
15	Ring, Balance
16	MAY 63849
17	Block, Drive
18	MAY 383727
19	MAY 3347780
20	AGITATOR, COMPLETE
21	MAY 3949550
22	SPACER, THRUST
