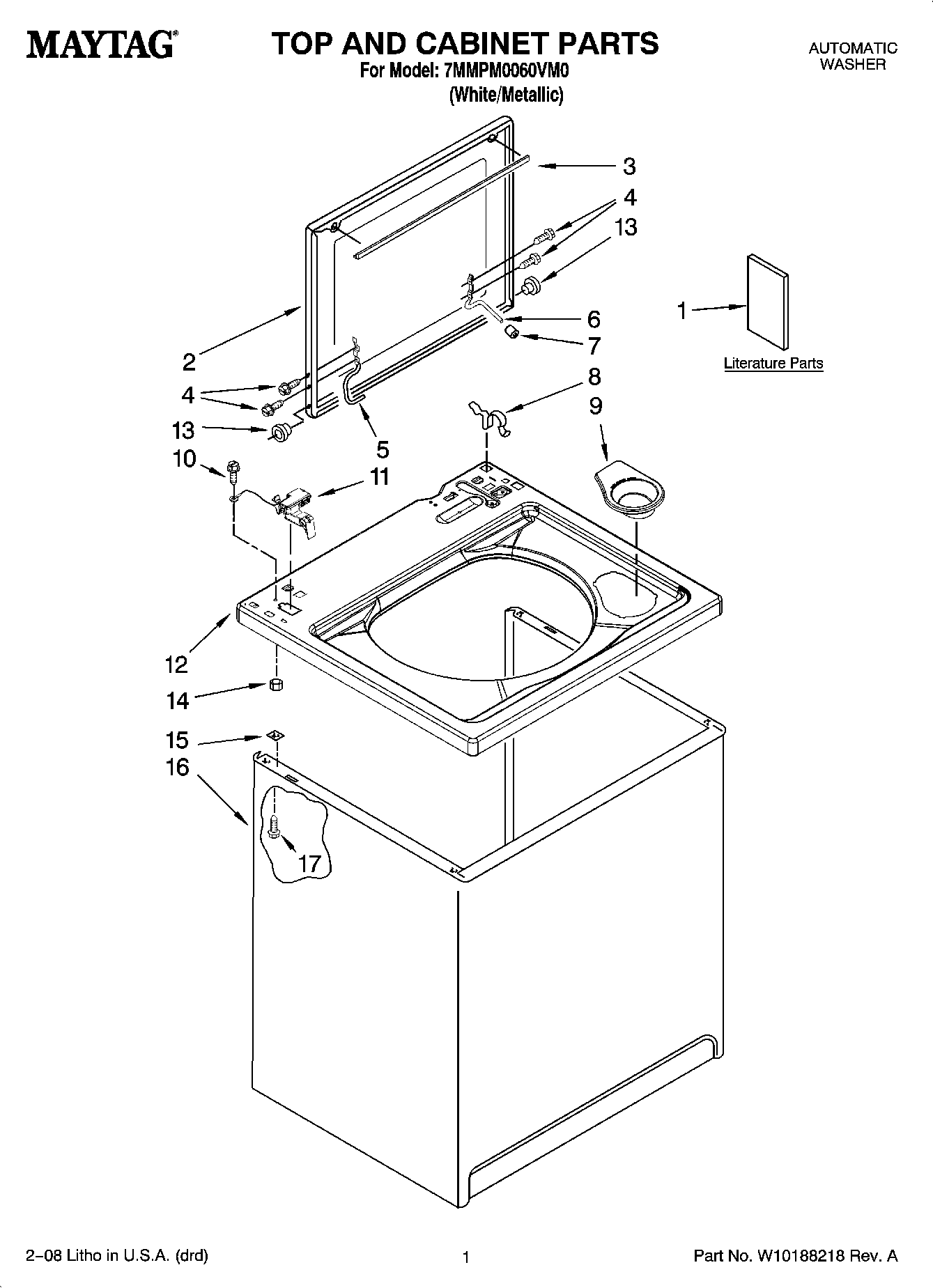

7MMPM0060VM0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	MAY W10150058
1	MAY W10096821
1	MAY W10155421
1	MAY W10155424
2	MAY W10171568
3	MAY 8054939
4	SCREW, LID HINGE
5	MAY 8559336
6	HINGE, LID (RIGHT HAND)
7	MAY 19119
8	MAY 62780
9	MAY 8565967
10	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
11	MAY 8318084
12	MAY 8543488
13	MAY 8319539
14	MAY 8533959
15	MAY 62750
16	Cabinet
17	SCREW
