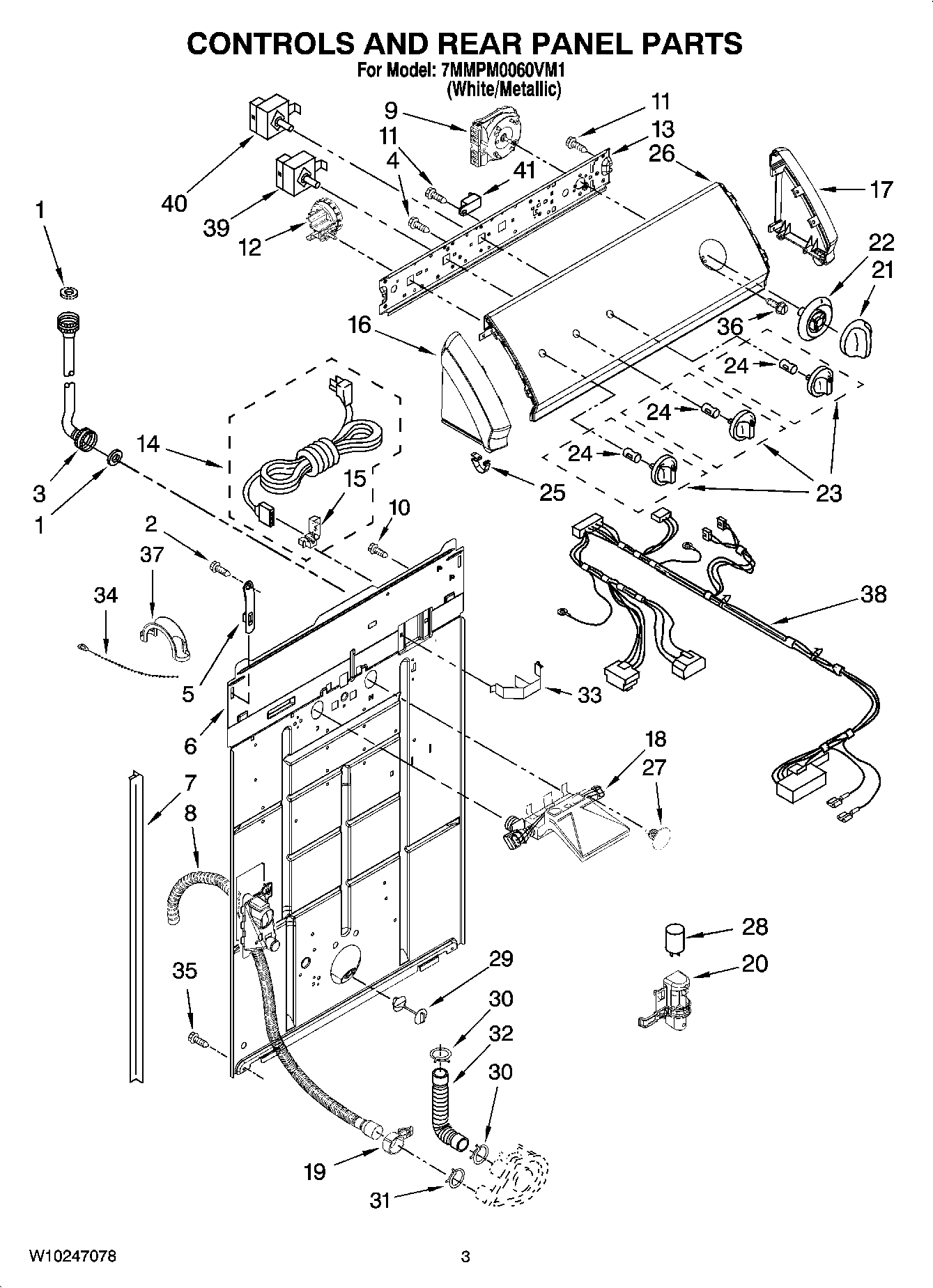

7MMPM0060VM1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	ACCESSORY PARTS, WASHER, HOSE
2	SCREW
3	MAY W10194210
3	HOSE, INLET (HOT)
4	SCREW
5	Strap, Console
6	MAY W10194450
7	MAY 62747
8	MAY W10189267
9	MAY 8577356
10	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
11	SCREW,8-18 X 3/8
12	MAY 8577843
13	MAY 8559504
14	Cord, Power (Includes Item 15)
15	MAY 3952821
16	ENDCAP ASSEMBLY, LEFT HAND (WHITE)
17	ENDCAP ASSEMBLY, RIGHT HAND (WHITE)
18	MAY W10278652
19	MAY 8541668
20	MAY 8318046
21	MAY 3956786
22	MAY 8559524
23	MAY 3956788
24	CLIP, SPRING
25	MAY 8312709
26	MAY W10222524
27	RETAINER, PUSH-IN
28	MAY 8572717
29	MAY 8519200
30	Clamp, Hose (2)
31	MAY 8317496
32	Hose & Clamp Assembly
33	Clip, Harness & Pressure Switch
34	MAY 3347868
35	Screw, Mixing Valve Mounting
36	SCREW
37	U-Bend
38	Wiring Harness (For Detail See Pages 9 & 10)
39	MAY 661614
40	MAY 3949187
41	MAY 694419
