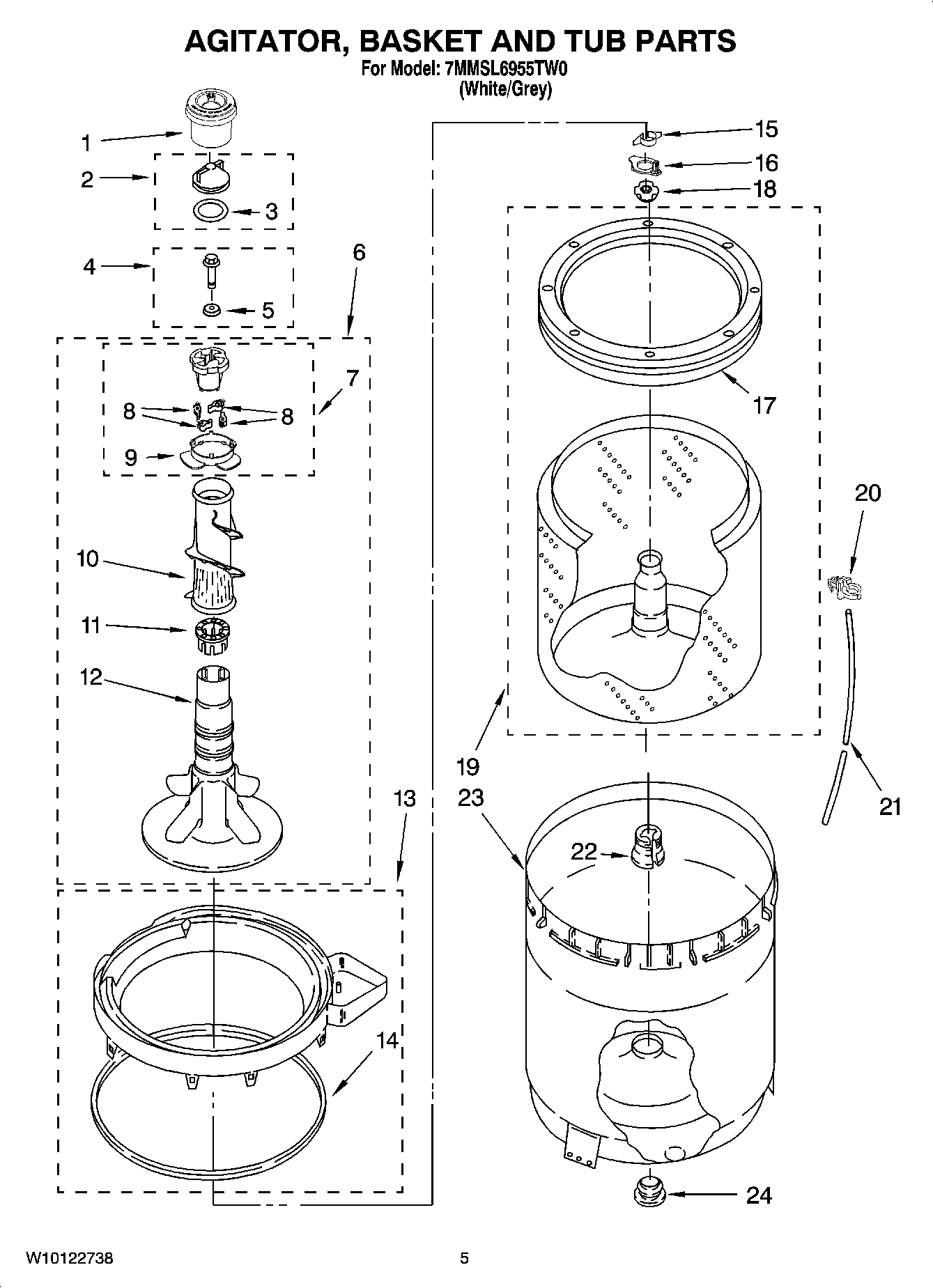

7MMSL6955TW0 03 – AGITATOR, BASKET AND TUB PARTS

7MMSL6955TW0 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

7MMSL6955TW0 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1MAY 8565968
2MAY 3354733
3Seal, Inner Cap
4Screw & Washer
5MAY 3949550
6MAY W10093672
7MAY 3363663
8Dog, Agitator (4)
9BEARING, CAM
10MAY 3349019
11SPACER, THRUST
12MAY W10110020
13Tub Ring
14MAY 3976308
15MAY 3354845
16MAY 8543666
17MAY W10118233
18MAY W10116603
19Basket
20Clip, Harness (1)
21MAY 3347780
22Block, Drive
23MAY 63849
24MAY 383727
