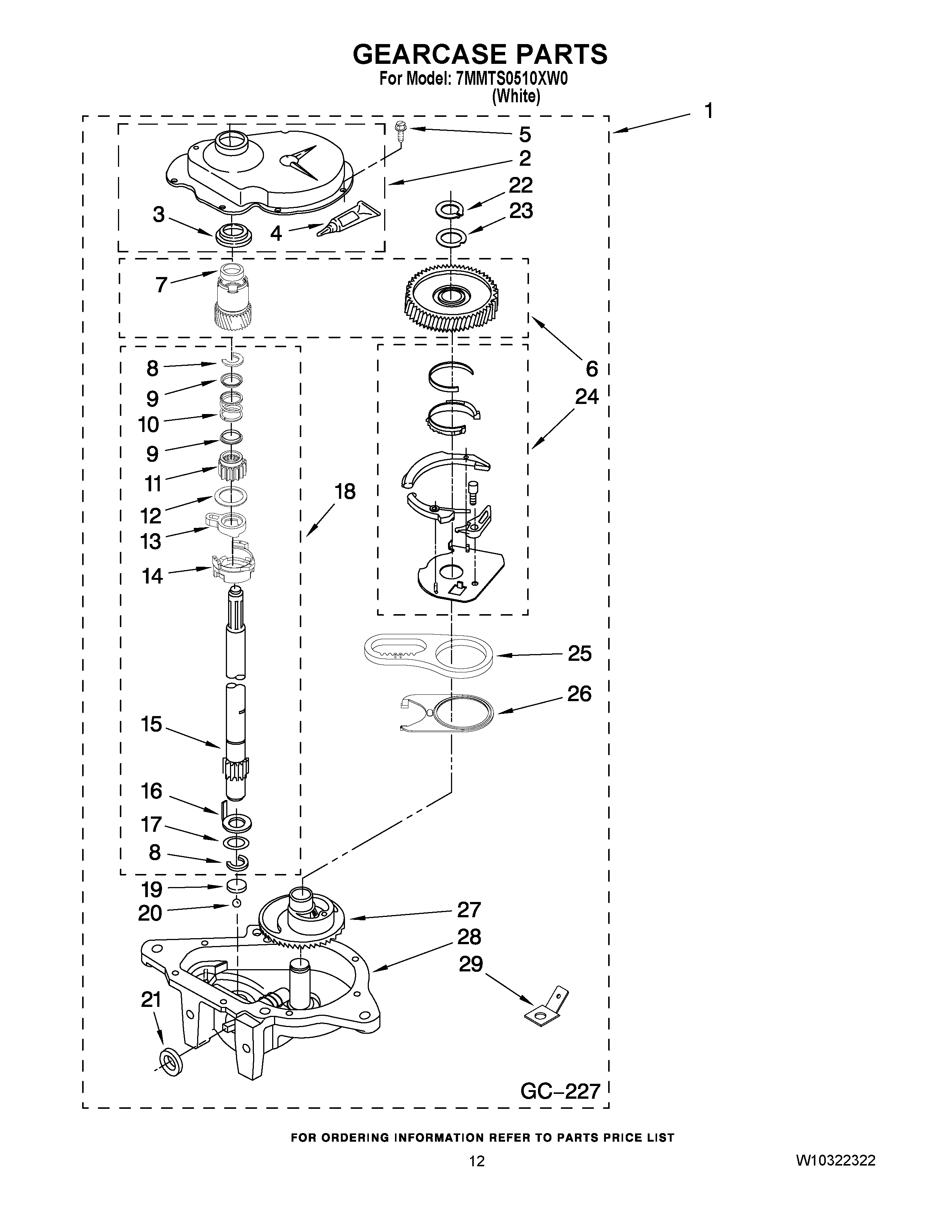

7MMTS0510XW0 08 – GEARCASE PARTS

Products

Position	Product
1	MAY W10251785
2	MAY 285202
3	MAY 3349985
4	SEALER, GASKET (.20 FL. OZ.) (6ML)
5	SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8)
6	MAY W10172898
8	MAY 90369
9	Retainer, Spring (2)
10	MAY 62676
11	GEAR, AGITATE
12	MAY 62619
13	MAY 62580
14	CAM, AGITATE
15	MAY 389231
16	MAY 62618
17	MAY 388815
18	MAY 389387
19	Bearing, Thrust (Includes 18)
20	Ball, Bearing (Includes 17)
21	MAY W10111745
22	MAY 3946619
23	MAY 285766
24	MAY 388253
25	MAY 8546456
26	MAY 62621
28	LINER (NOT A SERVICEABLE PART)
29	MAY 3949116
