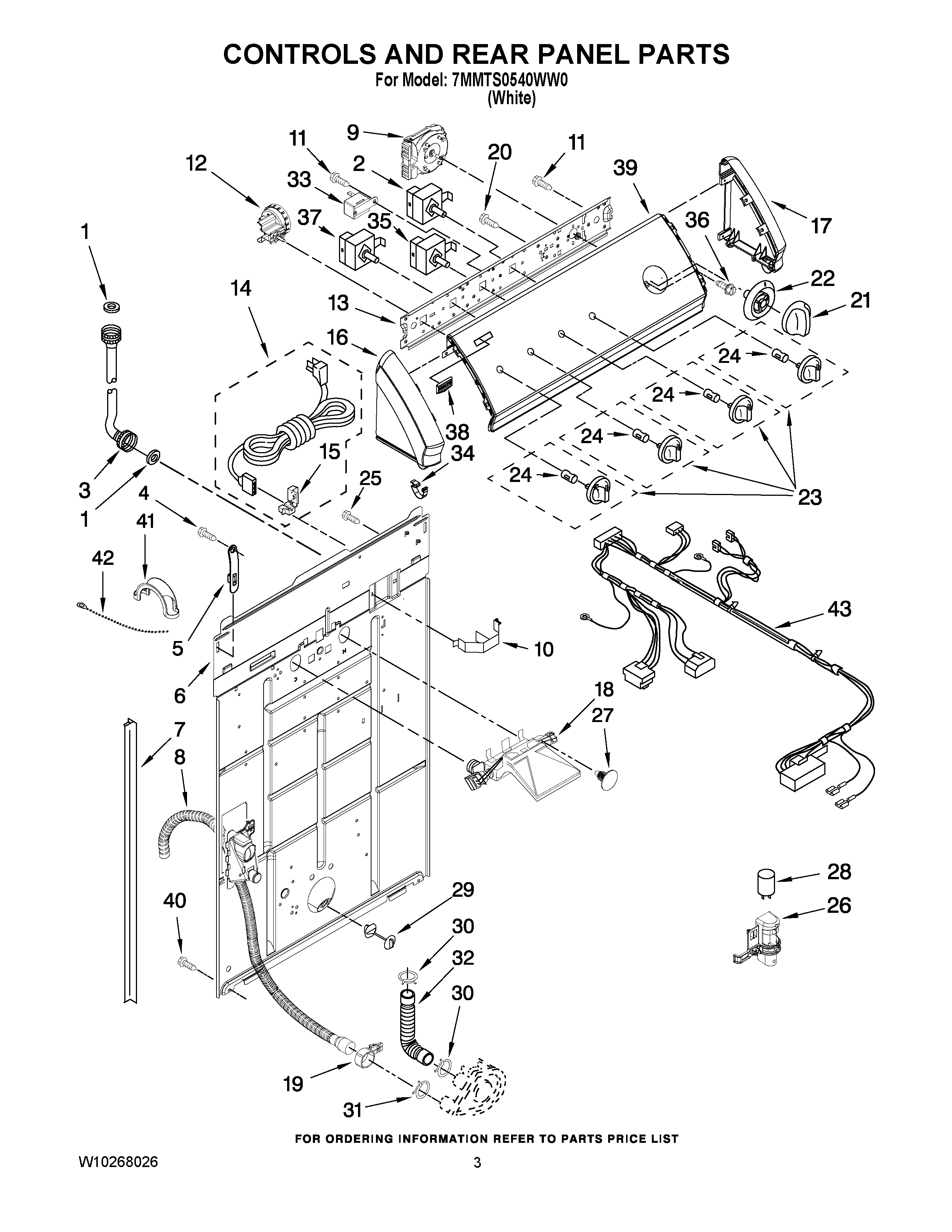

7MMTS0540WW0 02 – CONTROLS AND REAR PANEL PARTSadmin2025-04-26T11:24:23+00:007MMTS0540WW0 02 – CONTROLS AND REAR PANEL PARTS
Products
| Position | Product |
|---|
| 1 | ACCESSORY PARTS, WASHER, HOSE |
| 2 | MAY 3949187 |
| 3 | HOSE, INLET (HOT) |
| 3 | MAY W10194210 |
| 4 | SCREW |
| 5 | Strap, Console |
| 6 | MAY W10194450 |
| 7 | MAY 62747 |
| 8 | MAY W10189267 |
| 9 | MAY 8577356 |
| 10 | Clip, Harness & Pressure Switch |
| 11 | SCREW,8-18 X 3/8 |
| 12 | MAY 8577843 |
| 13 | MAY 8559504 |
| 14 | Cord, Power (Includes Item 15) |
| 15 | MAY 3952821 |
| 16 | ENDCAP ASSEMBLY, LEFT HAND (WHITE) |
| 17 | ENDCAP ASSEMBLY, RIGHT HAND (WHITE) |
| 18 | MAY W10278652 |
| 19 | MAY 8541668 |
| 20 | SCREW |
| 21 | MAY W10169849 |
| 22 | MAY W10169848 |
| 23 | KNOB, CONTROL |
| 24 | CLIP, SPRING |
| 25 | SCREW, GEARCASE COVER, MOUNTING (8) (10-24 X 3/8) |
| 26 | MAY 8318046 |
| 27 | RETAINER, PUSH-IN |
| 28 | MAY 8572717 |
| 29 | MAY 8519200 |
| 30 | Clamp, Hose (2) |
| 31 | MAY 8317496 |
| 32 | Hose & Clamp Assembly |
| 33 | MAY 694419 |
| 34 | MAY 8312709 |
| 35 | Switch, Rotary |
| 36 | SCREW |
| 37 | MAY 3950347 |
| 38 | MAY W10153170 |
| 39 | MAY W10244058 |
| 40 | Screw, Mixing Valve Mounting |
| 41 | U-Bend |
| 42 | MAY 3347868 |
| 43 | MAY W10224861 |
