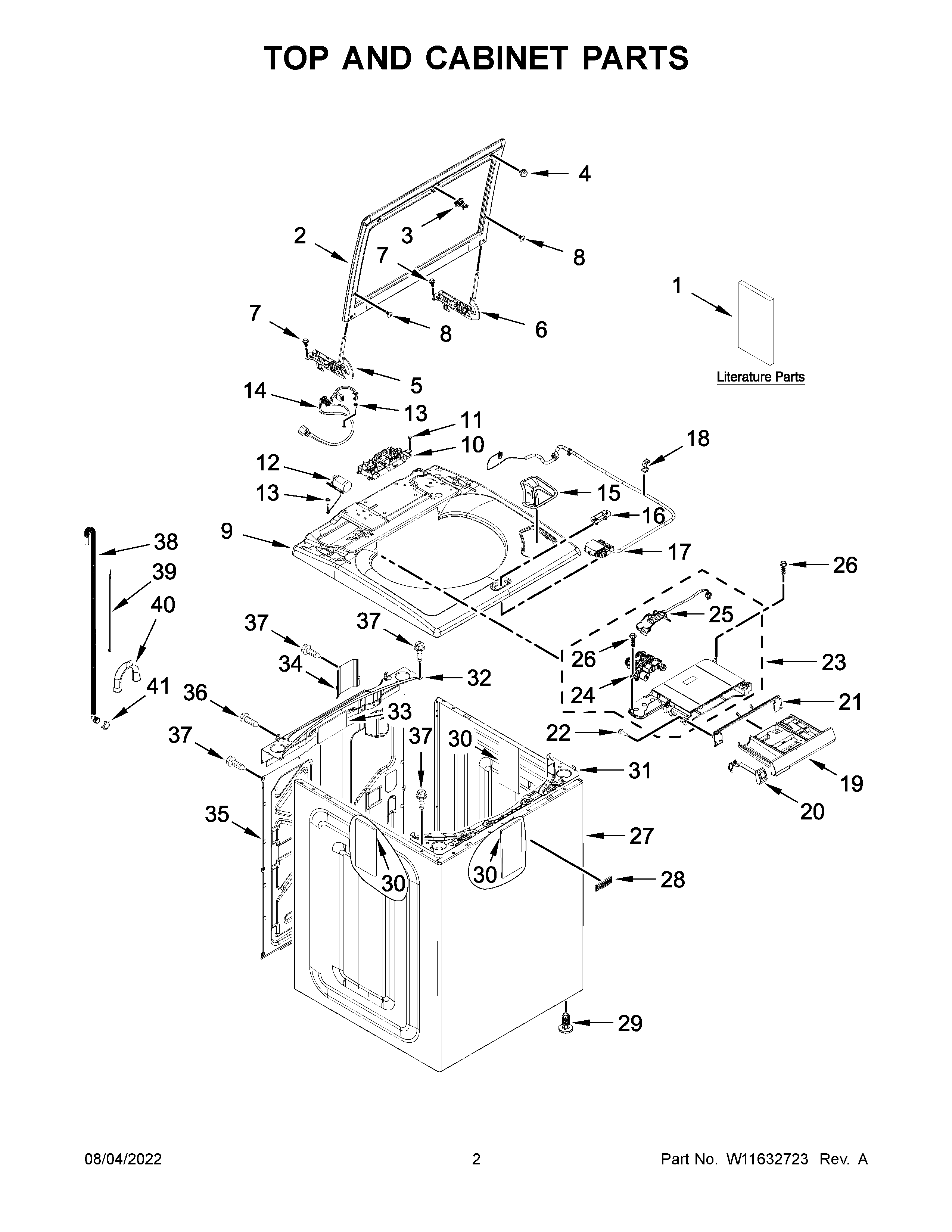

7MMVW7230LW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1D	WIRING DIAGRAM
1B	INSTALLATION INSTRUCTIONS
1A	QUICK REFERENCE GUIDE
1C	TECH SHEET
1E	OWNERS MANUAL
2	ASSEMBLY, LID (GLASS) (TEMPEST GREY)
3	W11457841 Whirlpool Door Strike
4	W11398707 Whirlpool Grommet Assembly
5	W11551369 Whirlpool Left Hand Hinge
6	W11551376 Whirlpool Hinge
7	WP489128 Whirlpool Refrigerator Screw
8	W11679612 Whirlpool Washer Bolt
9	W11423769 Whirlpool Top Assembly
9A	W11423768 Whirlpool Top Cover
10	W11419171 - Whirlpool Electronic Control Board + Core
11	WP693995 Whirlpool Screw
12	FILTER
13	W10846509 Whirlpool Screw
14	W11551294 Whirlpool Power Cord Harness Non-Heating
15	W11175757 Whirlpool Bezel
15A	W11175760 Whirlpool Bezel
16	W11545554 Whirlpool Knob Bezel
16A	W11559688 Whirlpool Knob Bezel
17	LATCH
18	WP90016 Whirlpool Clip
19A	W11611449 Whirlpool Drawer Assembly
19	W11573771 Whirlpool Dispenser
20A	W11662334 Whirlpool Switch
20	W11174419 Whirlpool Switch
21A	W11375989 Whirlpool Bezel
21	W11375988 Whirlpool Bezel Assembly
22	WP9740848 Whirlpool Dishwasher Screw
23	W11400157 Whirlpool Drawer Assembly
24	W11165546 Whirlpool Washer Water Inlet Valve
25	W11676811 Whirlpool Wire Harness
26	WPW10109200 Whirlpool Screw
27	W10677265 Whirlpool Cabinet Assembly
27A	W10677266 Whirlpool Cabinet Assembly
28	WPW10612925 Whirlpool Microwave Nameplate
29	WPW10687506 Whirlpool Washer Leveling Leg
30	W11197416 Whirlpool Absorber
31	W11381327 Whirlpool Brace
32	W11712680 Whirlpool Commercial Part Brace
33	WP8564458 Whirlpool Absorber
34	W10676061 Whirlpool Cover Assembly
35	W11417171 Whirlpool Rear Panel
36	W11568617 Whirlpool Screw
37	W11685943 Whirlpool Screw
38	WPW10339879 Whirlpool Wire Tie
39	W11244231 Whirlpool Hose
40	WPW10280024 Whirlpool Retainer
41	WP356138 Whirlpool Hose Clamp
