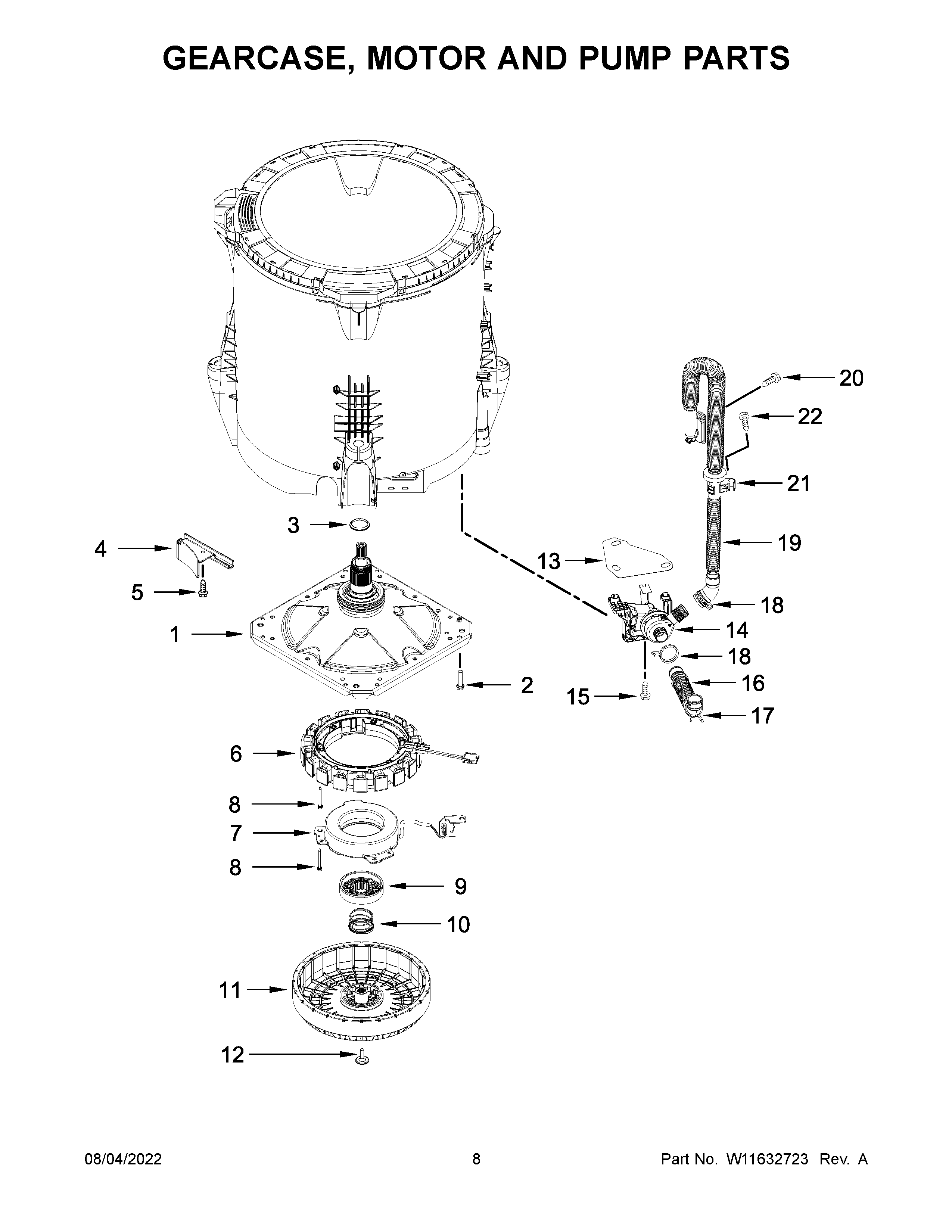

7MMVW7230LW0 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	GEARCASE
2	WPW10249633 Whirlpool Screw
3	W11553312 Whirlpool Washer Assembly
4	SHIELD
5	W10846509 Whirlpool Screw
6	W11195971 Whirlpool Stator
7	CLUTCH
8	SCREW
10	SLIDER
11	ROTOR
12	W10752189 Whirlpool Screw
13	W10894129 Whirlpool Shield
14	W11396717 Whirlpool Water Pump
15	WPW10004910 Whirlpool Screw
16	HOSE
17	WP285655 Whirlpool Hose Clamp
19	W11553446 Whirlpool Drain Hose Assembly
20	WP9740848 Whirlpool Dishwasher Screw
21	W10652932 Whirlpool Clip
22	WPW10109200 Whirlpool Screw
