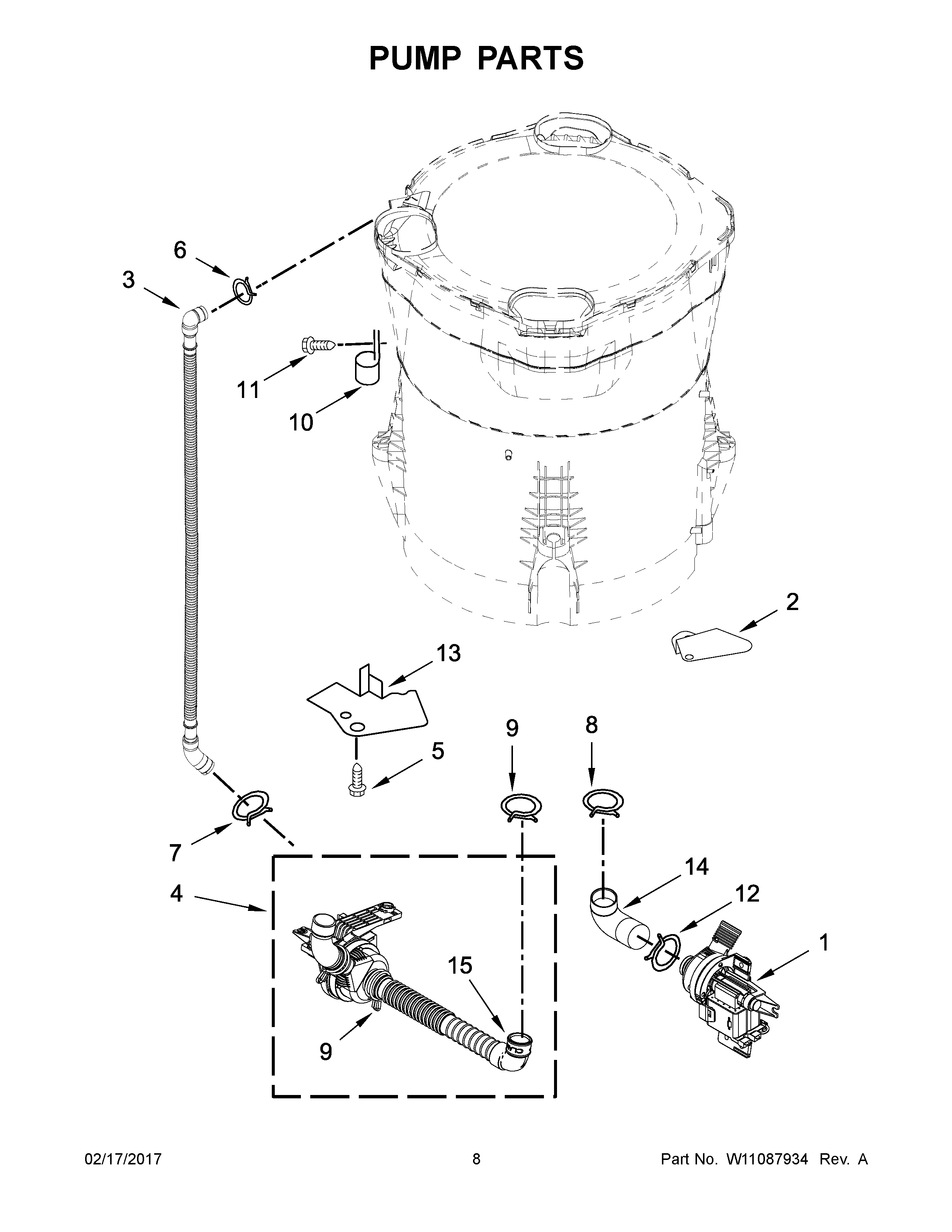

7MMVWB855EC1 05 – PUMP PARTS

Written by

Products

Position	Product
1	PUMP ASSEMBLY, DRAIN
2	MAY W10894129
3	HOSE, RECIRCULATION
4	PUMP ASSEMBLY, RECIRCULATION
5	SCREW
6	CLAMP, HOSE
7	HOSE CLAMP
8	MAY W10142630
9	CLAMP, HOSE
10	MAY 8534021
11	SCREW
12	MAY 8317496
13	SHIELD, RECIRCULATION PUMP
14	HOSE, TUB TO PUMP
15	HOSE – RECIRCULATION (TUB TO PUMP)
