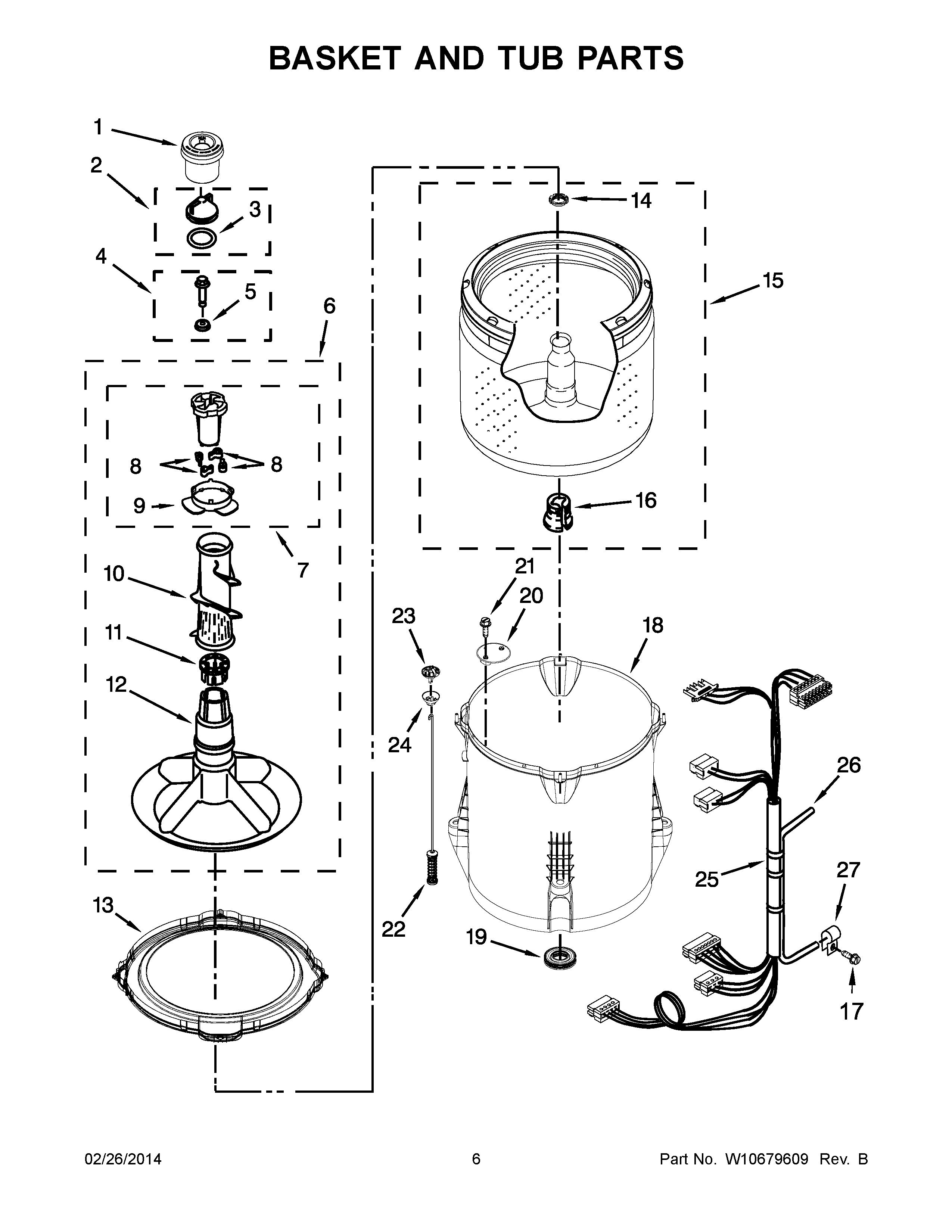

7MMVWC100DW0 04 – BASKET AND TUB PARTS

Products

Position	Product
1	MAY 8575076
2	MAY 3354733
3	MAY W10072840
4	SCREW & WASHER
5	MAY 3949550
6	MAY 3348117
7	MAY 3363663
8	Dog, Agitator (4)
9	BEARING, CAM
10	MOVER, CLOTHES
11	SPACER, THRUST
12	MAY 3347288
13	MAY W10215108
14	MAY 21366
15	MAY W10358261
16	Block, Drive
17	SCREW
18	TUB (INCLUDES TUB SEAL)
19	MAY W10006371
20	MAY W10215093
21	Screw
22	DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES BALL & BUSHING)
23	BALL, SUSPENSION (SET OF4 – INCLUDES SUSPENSION BUSHINGS)
24	BUSHING – UPPER (SET OF 4 – INCLUDES SUSPENSION BALLS)
25	MAY W10504126
26	HOSE, PRESSURE SWITCH
27	CLAMP, CABLE
