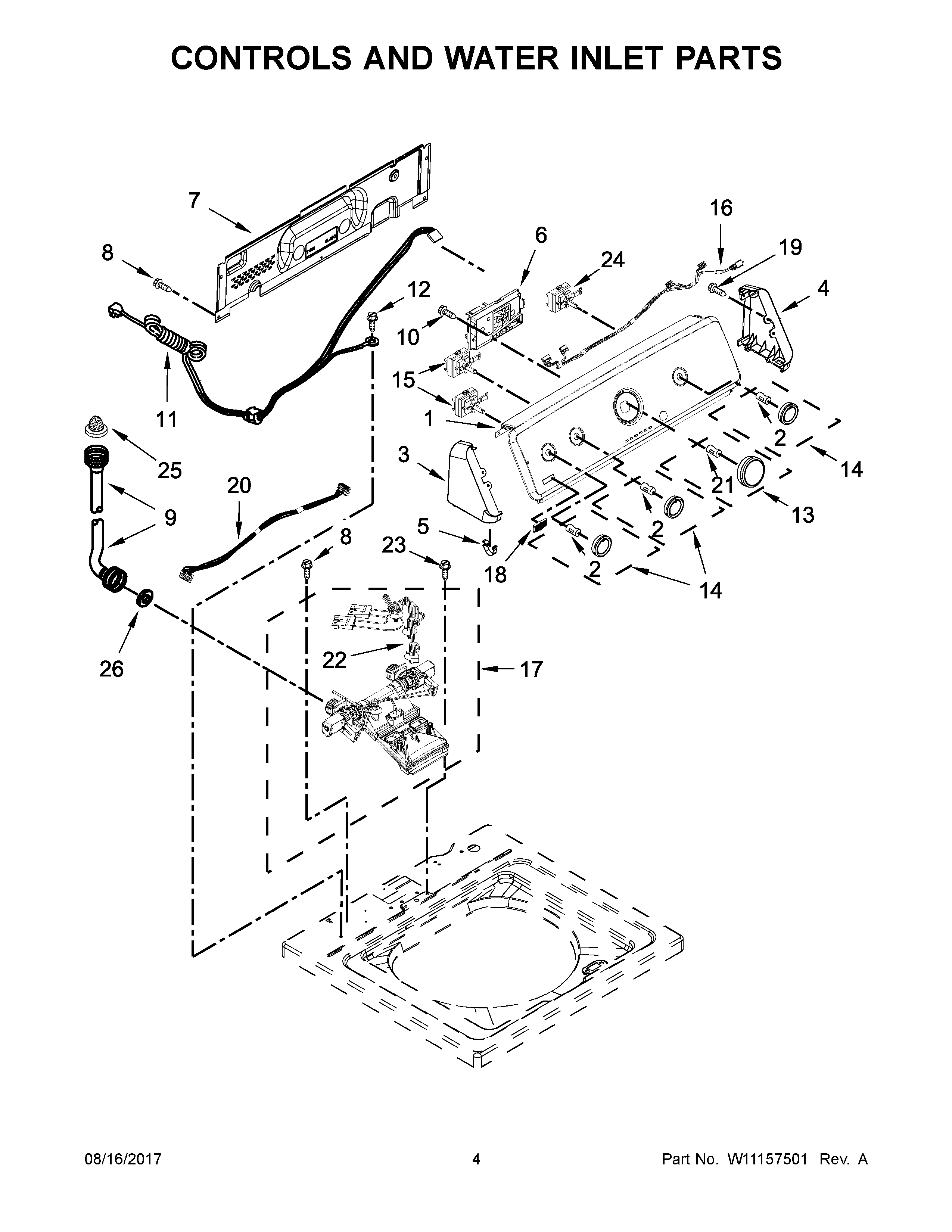

7MMVWC100DW2 03 – CONTROLS AND WATER INLET PARTS

Products

PositionProduct
1MAY W10774039
2CLIP, SPRING
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6CONTROL UNIT ASSEMBLY, MACHINE AND MOTOR
7MAY W10461159
8MAY 1157158
9ACCESSORY PARTS, WASHER, HOSE
10SCREW,8-18 X 3/8
11MAY W10525194
12Screw, 10-32 x 5/8
13MAY W10558463
14MAY W10562155
15SWITCH, ROTARY ENCODER
16MAY W10579238
17INLET ASSEMBLY, WATER
18MAY W10199708
19MAY 359625
20MAY W10291184
21Spring, Clip Knob
22MAY W10684972
23Screw
24SWITCH, ROTARY ENCODER
25WASHER, FILTER
26MAY W10194210
26AMAY W10194211
