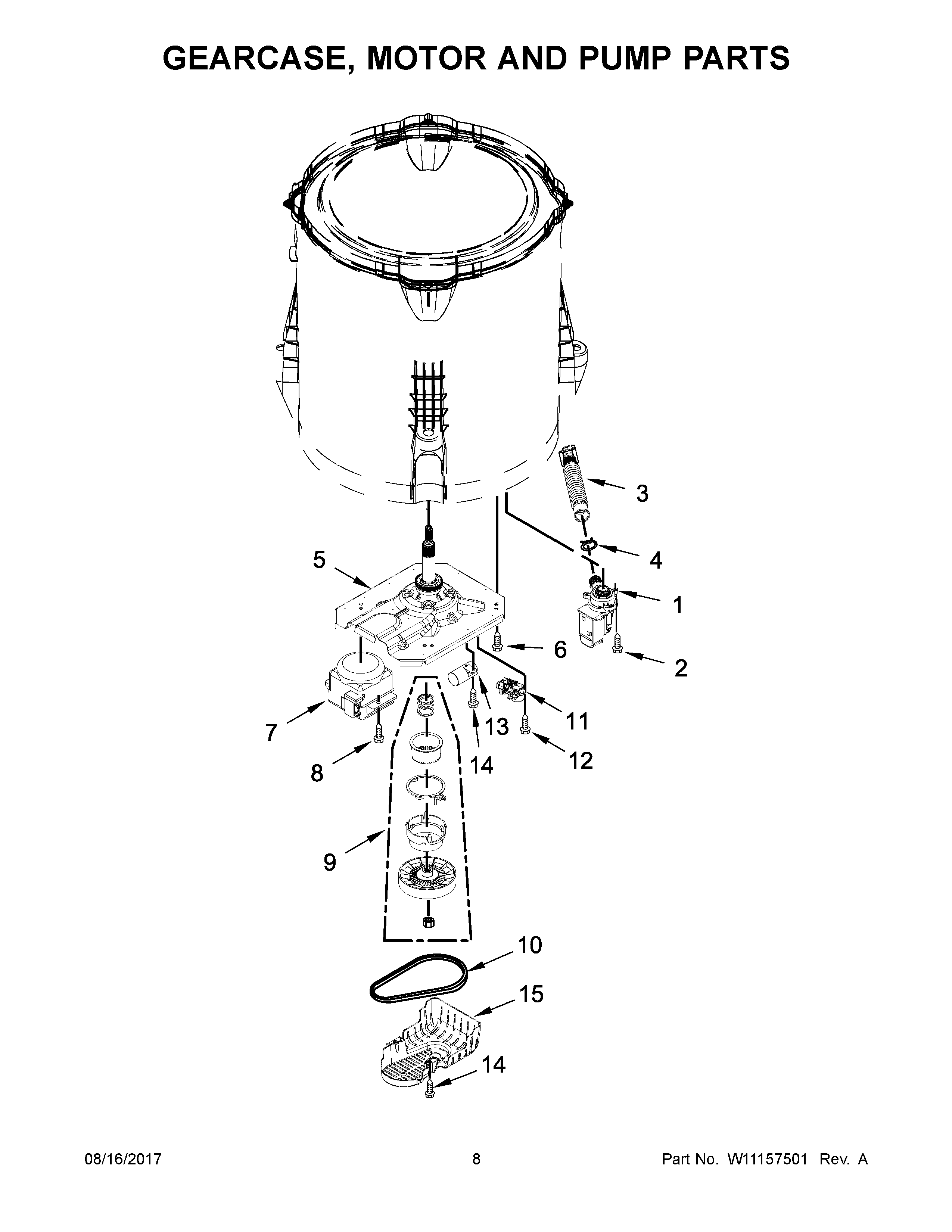

7MMVWC100DW2 05 – GEARCASE, MOTOR AND PUMP PARTS

Products

PositionProduct
1MAY W10465543
2SCREW
3MAY W10763078
4MAY 8317496
5GEARCASE ASSEMBLY
6SCREW
7MAY W10677715
8BOLT, COUNTERWEIGHT
9MAY W10721967
10MAY W10006384
11ACTUATOR-SHIFT
12SCREW
13MAY W10866249
14SCREW
15SHIELD, PULLEY COVER
