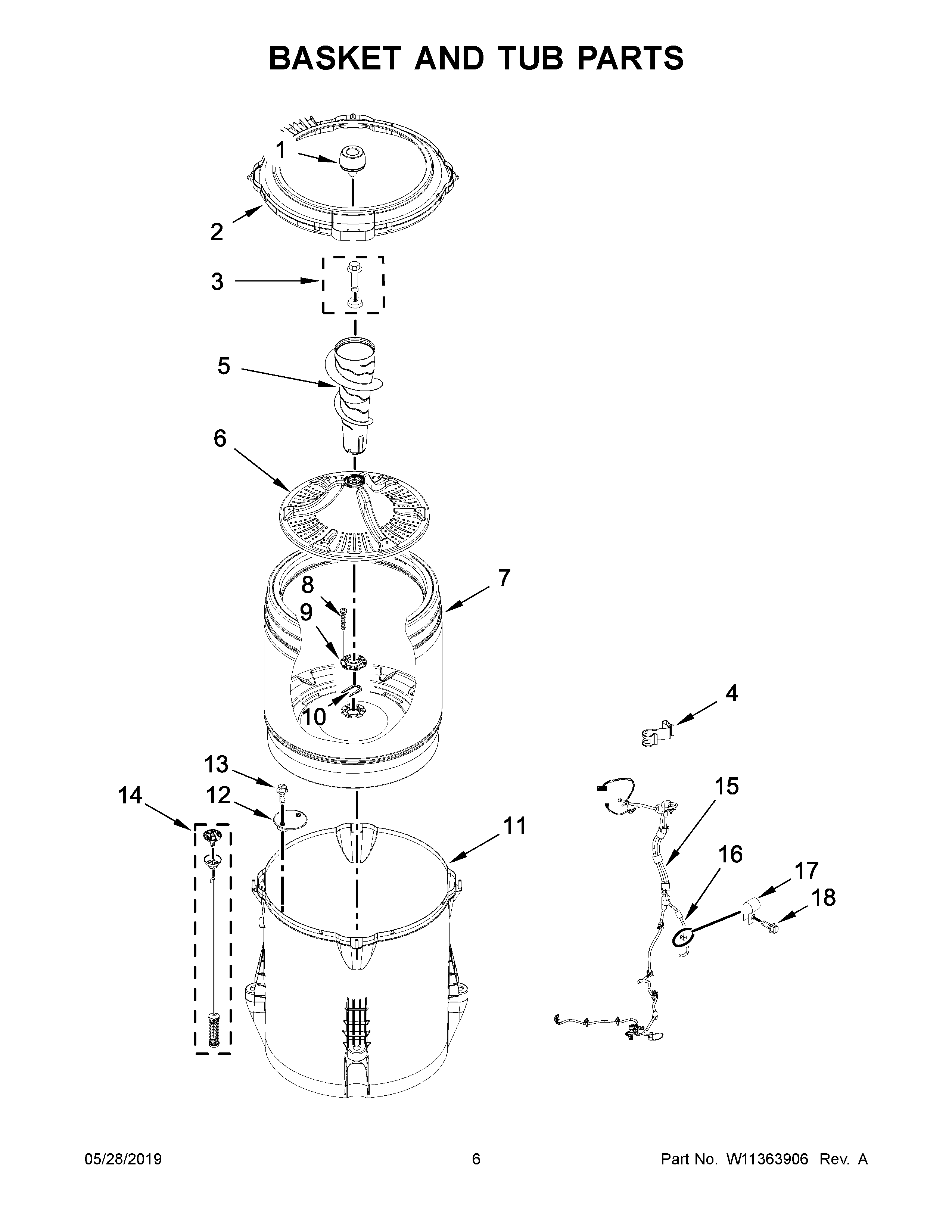

7MMVWC465JW0 04 – BASKET AND TUB PARTS

Products

PositionProduct
1DISPENSER, FABRIC SOFTENER
2TUB RING
3BOLT AND WASHER
4MAY W11284522
5BARREL, AGITATOR
6IMPELLER (WASHPLATE)
7BASKET ASSEMBLY
8SCREW
9HUB – DRIVEN, BASKET
10RETAINER, DRIVE BLOCK
11TUB (INCLUDES TUB SEAL)
12MAY W10215093
13Screw
14DAMPER ASSEMBLY, TUB SUSPENSION (SET OF 4-INCLUDES SUSPENSION BUSHINGS AND USPENSION BALLS)
15HARNESS, LOWER
16HOSE, PRESSURE SWITCH
17CLAMP, CABLE
18SCREW
