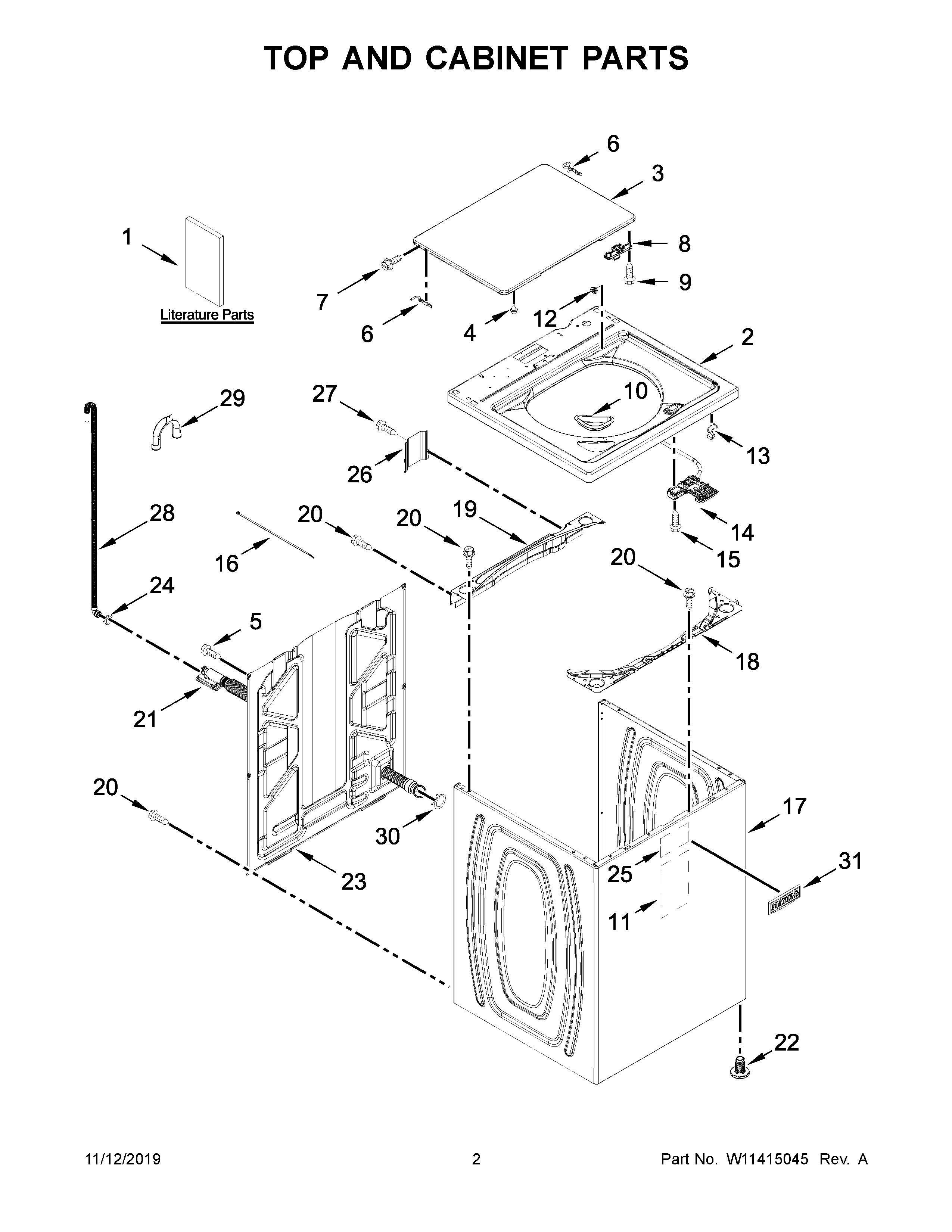

7MMVWC565FW1 02 – TOP AND CABINET PARTS

Products

PositionProduct
1CQUICK START GUIDE
1MAY W11349728
1AMAY W11348497
1BUSE AND CARE GUIDE
1DENERGY GUIDE
2TOP (WHITE)
3ASSEMBLY, LID (WHITE)
4MAY 9724509
5SCREW
6AHINGE, LID (RIGHT HAND)
6HINGE, LID
7Screw And Washer
8MAY W10714899
9SCREW
10MAY W10192089
11ABSORBER, IMPACT
12Hinge, Bearing (2)
13Clip, Wire (4)
14MAY W10682535
15MAY W10213953
16TIE, CABLE
17CABINET (WHITE)
18CHANNEL, TOP FRONT (WHITE)
19BRACE, CABINET TOP – REAR
20SCREW
21MAY W10763078
22FOOT ASSEMBLY, LEVELING
23PANEL, REAR
24MAY 356138
25MAY 8564458
26COVER, HARNESS
27Screw, 10-32 x 5/8
28HOSE, OUTER DRAIN ASSEMBLY
29MAY W10280024
30MAY 8317496
31BADGE
