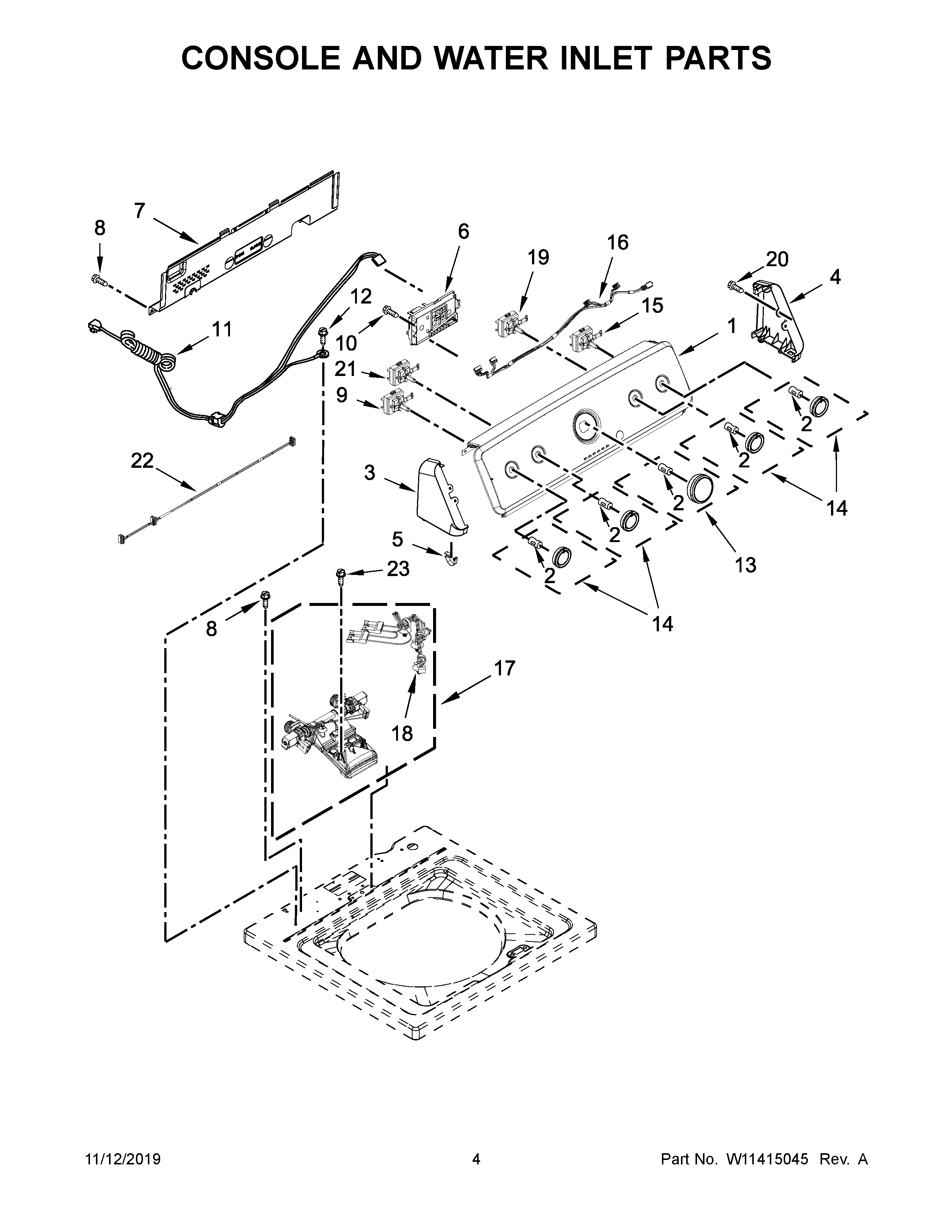

7MMVWC565FW1 03 – CONSOLE AND WATER INLET PARTS

Products

PositionProduct
1PANEL, CONSOLE
2Spring, Clip Knob
3Endcap (L.H.)
4Endcap (R.H.)
5MAY 8312709
6MAY W11320235
7PANEL, CONSOLE REAR COVER
8SCREW
9SWITCH, ROTARY ENCODER
10SCREW,8-18 X 3/8
11CORD, POWER
12Screw, 10-32 x 5/8
13MAY W10558463
14MAY W10562155
15MAY W10285511
16HARNESS, UPPER
17INLET ASSEMBLY, WATER
18HARNESS, VALVE
19SWITCH, ROTARY ENCODER
20MAY 359625
21MAY W10285518
22HARNESS, JUMPER
23MAY W10213953
