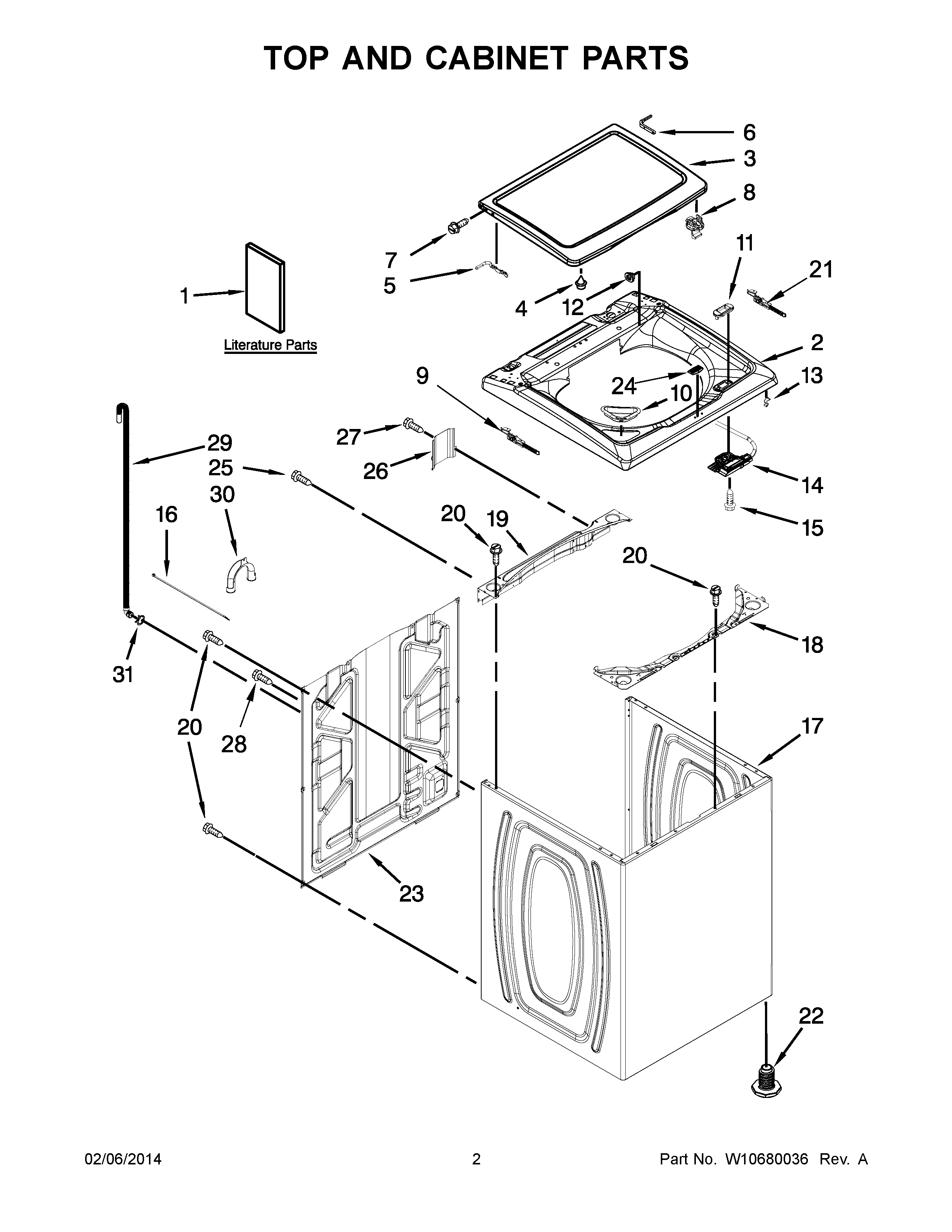

7MMVWH450DW0 02 – TOP AND CABINET PARTS

7MMVWH450DW0 02 – TOP AND CABINET PARTS

Written by

in

7MMVWH450DW0 02 – TOP AND CABINET PARTS

Products

PositionProduct
1MAY W10658637
1MAY W10658022
1MAY W10655233
1MAY W10468342
2TOP (WHITE)
3LID & BUMPER ASSEMBLY (WHITE)
4MAY 9724509
5HINGE, WIRE (LEFT)
6HINGE, WIRE (RIGHT)
7SCREW
8STRIKE, LID LOCK (WHITE)
9HINGE, LID (LEFT)
10MAY W10240977
11MAY W10392041
12BEARING, LID HINGE (LEFT HAND)
12BEARING, LID HINGE (RIGHT HAND)
13Clip, Wire (4)
14MAY W10238287
15Screw
16TIE, CABLE
17MAY W10478060
18MAY W10215098
19BRACE, CABINET TOP – REAR
20MAY 1157158
21HINGE, LID (RIGHT)
22MAY W10556332
23PANEL, REAR
24MAY W10492808
25SCREW
26MAY W10215139
27Screw, 10-32 x 5/8
28SCREW
29HOSE, OUTER DRAIN ASSEMBLY
30MAY W10280024
31MAY 356138
