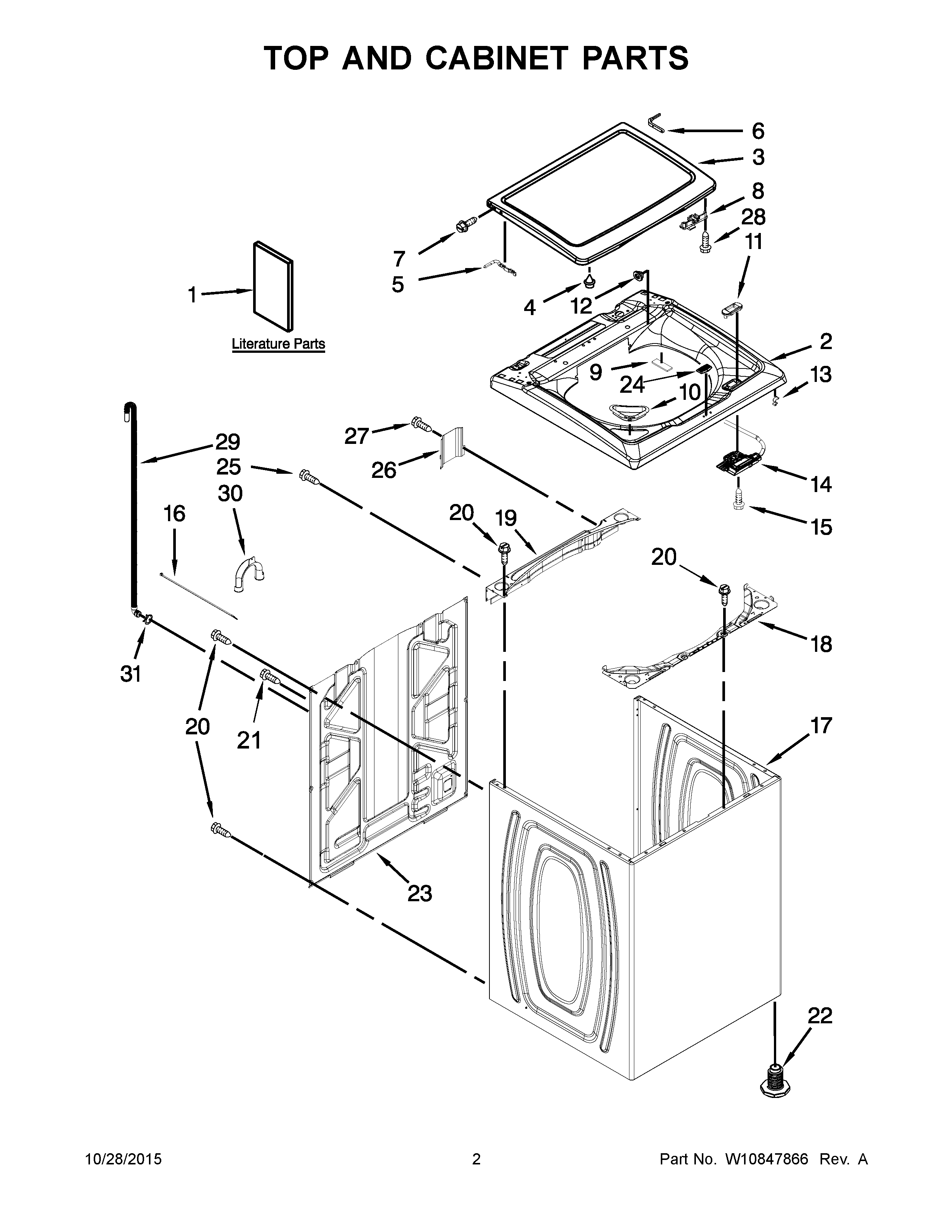

7MMVWX521BW1 02 – TOP AND CABINET PARTS

7MMVWX521BW1 02 – TOP AND CABINET PARTS

Written by

in

7MMVWX521BW1 02 – TOP AND CABINET PARTS

Products

Position	Product
1B	MAY W10468342
1C	MAY W10331110
1	MAY W10478095
1A	MAY W10566773
1D	MAY W10648285
2	TOP (WHITE)
3	LID
4	MAY 9724509
5	MAY W10295775
6	MAY W10569655
7	SCREW, LID HINGE
8	MAY W10240513
9	MAY W10333228
10	MAY W10240977
11	MAY W10392041
12A	MAY W10293230
12	MAY W10293272
13	Clip, Wire (4)
14	MAY W10744659
15	Screw
16	TIE, CABLE
17	MAY W10478060
18	MAY W10215098
19	BRACE, CABINET TOP – REAR
20	MAY 1157158
21	SCREW
22	MAY W10397994
23	PANEL, REAR
24	MAY W10492808
25	SCREW
26	MAY W10676061
27	Screw, 10-32 x 5/8
28	SCREW
29	HOSE, OUTER DRAIN ASSEMBLY
30	MAY W10280024
31	MAY 356138
