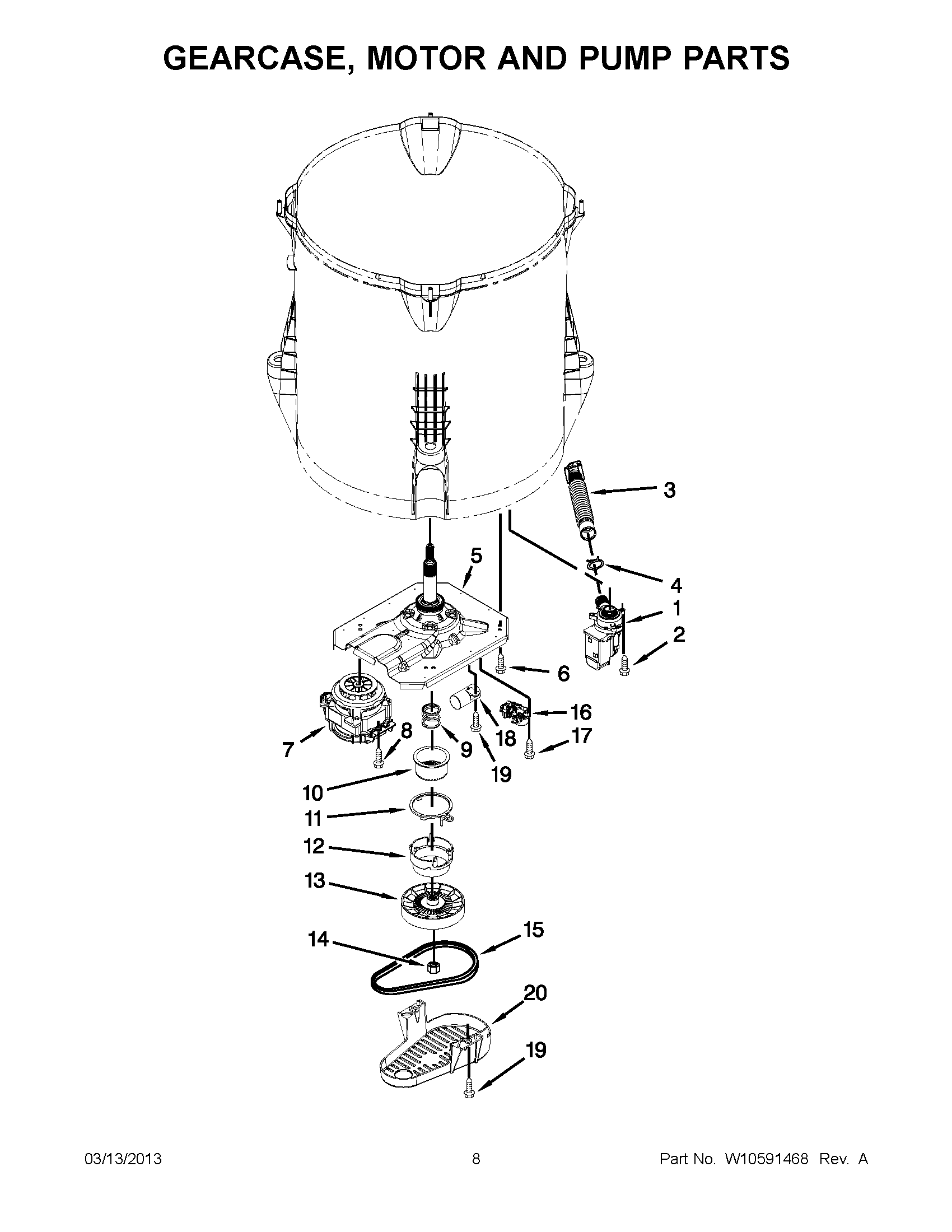

7MMVWX622BW0 04 – GEARCASE, MOTOR AND PUMP PARTS

7MMVWX622BW0 04 – GEARCASE, MOTOR AND PUMP PARTS

Written by

in

7MMVWX622BW0 04 – GEARCASE, MOTOR AND PUMP PARTS

Products

Position	Product
1	MAY W10465543
2	SCREW
3	MAY W10215091
4	MAY 8317496
5	MAY W10469846
6	SCREW
7	MAY W10416660
8	BOLT, COUNTERWEIGHT
9	SPRING, SPLUTCH
10	SLIDER, SPLUTCH
11	CAM RING, SPLUTCH
12	CAM, SPLUTCH
13	MAY W10006356
14	MAY W10163336
15	MAY W10006384
16	MAY W10006355
17	SCREW
18	MAY W10390446
19	SCREW
20	MAY W10427633
